340 Gallon Compact Water Trailer

— November Promo - No Payments until Spring —
PLUS 0% for 24 months*

Need a Quote & Information?

Categories: , , , Tags: , , , ,

340 Gal. Compact Water Trailer

The 340 gallon compact ABI Water Trailer hauls and applies large volumes of water around the farm or property. This compact trailer, built on a low riding proprietary frame, is ideally suited for smaller tow vehicles such as UTVs and compact tractors. It is powered by an engine and pump to apply variable amounts of water from either the rear spray nozzle(s) (wide spray) or the available spray hose (spot application). Additionally, it has the ability to turn the flow of water on and off, on-the-fly, from the seat of the tow vehicle. Common uses include dust abatement, irrigation, hydration, watering, washing, and supplying in applications such as horse arenas, general property, nurseries, ballfields, pools, parks, farms, and more! The ABI Water Trailer comes loaded with features perfectly selected to make this an invaluable and versatile trailer for your water application needs. Not for use on public roadways.
ABI 340 Water Trailer Product Image
An engineering drawing of the ABI 340 Gallon Compact Water Trailer

Honda Motor

160 cc

Pump & Plumbing

2 in

Spray Nozzles

1

Limited Warranty

36-month

Our full line of ABI Compact Water Trailers excel at arena moisture management, landscaping, dust abatement, property fire protection, cleaning equipment, stalls, and buildings, transporting potable water, and more! Whatever is on your list of jobs to accomplish with your ABI Compact Water Trailer, we’ve loaded it with thoughtful features that help you get them done quicker and better than before. With quick and convenient filling capabilities, easy-to-use hoses and spray nozzles, and a full-drain tank on our custom-built frame, our water trailers are easy to fill, easy to operate, and easy to own! (all this text works for both the 340 and 550 all the way down)

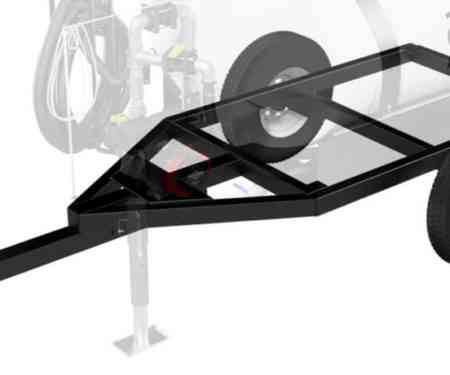

ABI 340 Water Trailer Custom Frame

Purpose-Built Rugged Steel Frame

No matter how you spin it, a water trailer is only as good as the frame it’s built upon. Our compact water trailer frames are purpose-built and are NOT a purchased component (like many competitors’). We design and build our own frames, giving us complete control of durability, safety, and functionality. Our frames are constructed of fully-welded steel (no wood!), have an adjustable hitch with choice of coupler, and come with easily serviced standard trailer components.

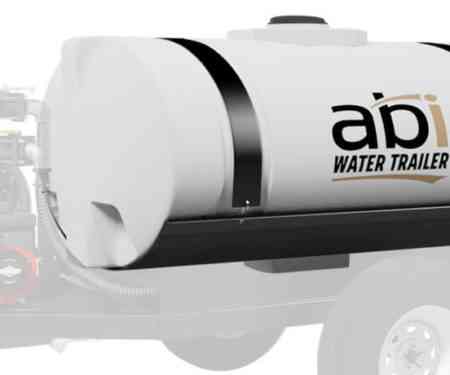

ABI Attachments Full Drain Water Tank

Full-Drain Custom Molded Tank

Each tank is rotationally-molded and fully drains for easy cleaning. Many competitors’ tanks do not fully drain, making it nearly impossible to thoroughly clean or flush out sediment from filling the tank with pond water. ABI compact water trailer models have elliptical tanks for easy access and a lower center of gravity. The shape of our tanks also helps to minimize water sloshing during use, with the legs acting as a partial baffle.

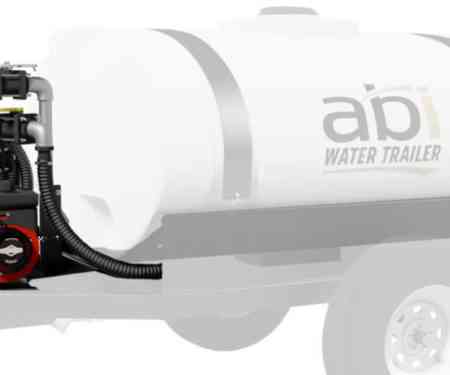

ABI Attachments Water Trailer Plumbing System

Motor, Pump, & Plumbing System

The standard motor, pump, & plumbing systems on the ABI compact water trailers enable precision application of water for a variety of applications. We offer powerful Honda GC engines that are perfectly matched with the right pump to maximize performance for the trailer’s application. We expect impressive performance, so the entire plumbing system is equipped with the best quality valves and the ability to adjust water pressure and flow from the engine, the valves, or a combination of the two. A chart right on the tank lets the operator calibrate the amount of water applied for their specific application.

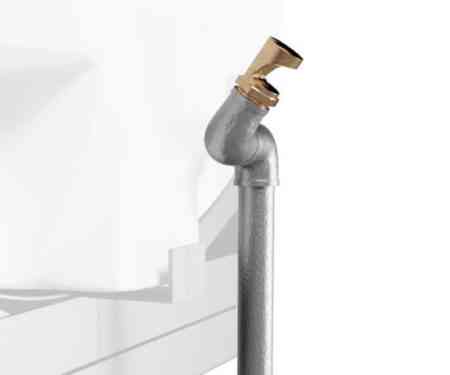

ABI Water Trailer Spray System

Spray System & Brass Nozzles

The standard rear spray system with a brass nozzle(s) ensure a consistent application of water to the ground. The brass nozzle(s) provide superb coverage and can be adjusted to direct the spray as desired. Water volume and coverage is easily controlled with the recirculation valve to know how much water is being applied by the system. The compact-size water trailers have either 1 or 2 nozzles depending on the application.

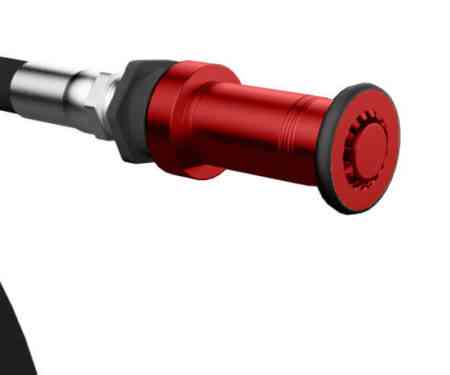

ABI Water Trailer Spray Hose

Convenient, Powerful Spray Hose

The standard spray hose extends the functionality of the compact water trailers. The spray hose is perfect for cleaning projects, watering landscaping, filling troughs, fire protection, and countless other applications! Storage of the hose is integrated into the trailer frame and includes quick-couplers to connect and disconnect with ease.

ABI Attachments Water Trailer Ratcheting Valve

Easy On/Off Flow Control

A ratcheting valve and attached rope enables the tractor operator to turn the flow of water on and off without getting off of the tractor or ATV! Shutting off water flow when traveling over areas that have already been watered conserves water and eliminates inconsistent or over-watering that can be detrimental in certain applications. Forget to untie the rope from your tow vehicle? No problem as the quick disconnect allows you to easily reattach the rope without anything breaking.

ABI Attachments Water Trailer Auto-Shutoff Valve

Auto-Fill Shut Off

This valve automatically shuts off the flow of water from a garden hose when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to spray when you are.

ABI Water Trailer Quick Fill

Quick Fill System

The available quick-fill system allows easy filling of the tank from a pond or other available water source in mere minutes. These hoses feature quick couplers and conveniently stores on the integrated frame.

Honda GC 160

Honda Engine

The standard Honda GC 160 engine is easy starting with electronic ignition and automatic mechanical decompression. The powerful 160cc engine with Overhead Valve Design (OHV) runs cooler and cleaner delivering more power, smoother operation, longer engine life, and improved fuel economy.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty - Farm, Ranch, & Commercial

36-month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.

Trailer Construction

ABI Water Trailer 340 Gallon Compact
GVWR Axle Rating 3,500 lbs.
Unit Weight (Empty) 661 lbs.
Loaded Weight (w/Water) 3,498 lbs.
Tongue Weight 280 lbs.
Compact Construction
Commercial Construction -
1 Axle
2 Axles -
Suspension -
Electric Brakes -
Fenders -
Brake & Tail Lights -
Custom Frame
Tire Type Radial
Tire Specs ST205/75R14D
# of Lugs 5
Trailer Frame Type Tube Steel
Pin, Pintle, or 2" 5/16" Ball Hitch - Option
36 Month Limited Warranty
Made In USA

Water Tank Configurations

ABI Water Trailer 340 Gallon Compact
Water Capacity 340 Gallons
Full Drain Tank
Deep Drainage Sump
Leg Tank Design
Low Profile Elliptical Shape
White Polyethylene Material
Black Tank Option -
FDA Approved Resins

Engine Configurations

ABI Water Trailer 340 Gallon Compact
XR950 Briggs & Stratton (5.8hp / 208cc) -
GC160 Honda Motor (4.6hp / 160cc)
GX160 Honda Motor (4.8 hp / 163cc) -

Pump Configurations

ABI Water Trailer 340 Gallon Compact
2” Self-Priming Centrifugal Poly Pump

Plumbing Configurations

ABI Water Trailer 340 Gallon Compact
AutoFill Shutoff - Garden Hose
2" Plumbing
Recirculation System
1 Rear Spray Nozzle
2 Rear Spray Nozzles -
3 Rear Spray Nozzles -
On/Off Flow Control Ratchet Valve
Spray Hose & Nozzle
Pond Fill System - Option
Garden Hose Adapter - Option

Rear Water Spray

ABI Water Trailer 340 Gallon Compact
Spray Nozzle Fan Arc 128 - 144°
Spray Swath 3' - 20'
Max Gallons Per Minute (GPM) 86
Uniform Water Application

Tow Vehicle Requirements

ABI Water Trailer 340 Gallon Compact
Off Public Roadway Use
On Public Roadway Use (DOT) -
Tow Vehicle Type Large UTV / Compact Tractor
Minimum Vehicle Requirements Min. Weight: 1,500 lbs. On Flat Ground, Towing Capacity 3,300 lbs. On Uneven Terrain

Dimensions

ABI Water Trailer 340 Gallon Compact
Unit Length 134"
Unit Width 64"
Unit Height 52"
Shipping Length 120"
Shipping Width 72"
Shipping Height 62"

Attributes

340 Gallon Compact Water Trailer
Tow Vehicle UTV, Sub-Compact Tractor, Compact Tractor, Utility Tractor
Connection Pin Hitch / Drawbar, Ball Hitch
Size ,
Other Attributes Off Road Use Only, Engine Powered
