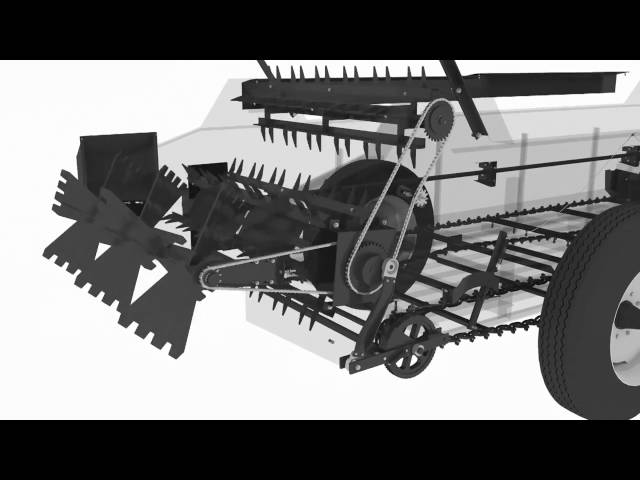

125ft cu ft PTO ABI Classic Manure Spreader – 360 3D Spin
PTO Manure Spreader, 125 cu ft – Horse Manure Spreader
John Deere Tractor pull behind 125 PTO Manure Spreader
Tractor pull behind 125 PTO Manure Spreader
John Deere Tractor pull behind 125 PTO Manure Spreader for farms
125 PTO pull behind Manure Spreader in a pasture
Pull behind 125 PTO pull behind Manure Spreader Manure Management
Manure Management Tractor 125 PTO manure spreader
Tractor 125 PTO Manure Spreader

125 ft³ PTO – Large Manure Spreader

— November Promo - No Payments until Spring —
PLUS 0% for 24 months*

Need a Quote & Information?

www.abiattachments.com needs the contact information you provide to us to contact you about our products and services. You may unsubscribe from these communications at anytime. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.
Categories: , , Tags: , , ,

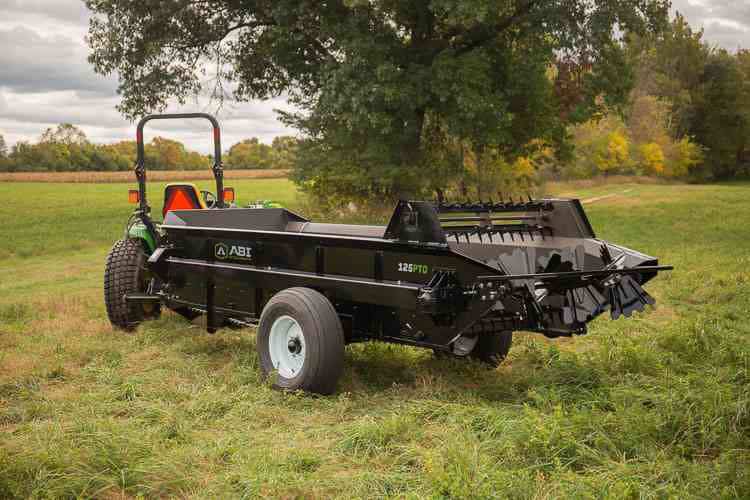

125 ft³ PTO Drive Manure Spreader

The ABI 125 cuft PTO Driven manure spreader is ABI's large and incredibly capable commercial platform manure spreader. This 4-speed Power Take Off (PTO) driven spreader can be pulled with a compact tractor and is ideal for farms with up to 22 horses. With ease of use, serviceability, and safety already built-in by design, the ABI Classic Spreader offers standard features such as 10-gauge COR-TEN steel, fully welded box frame construction, 4-speed variable flow control, 3 beaters for both inline shredding and spreading, a protective box liner, and poly-lumber flooring. From the ground up, the ABI Classic Manure Spreader is truly a superior spreader for hobby farms and horse stables. Offered with 5 assurances in writing: 1) AttachMatch Money-Back Guarantee* 2) 10 Year Apron Chain Limited Warranty* 3) 10 Year Spreader Box & Frame Limited Warranty* 4) 3 Year Mechanical & Construction Limited Warranty* 5) Lifetime Poly-Lumber Flooring Limited Warranty* - *See Documentation
PTO Manure Spreader, 125 cu ft – Horse Manure Spreader Overview
Simply Works Better

The easy-to-engage levers and pull-ropes, swing-away jack stand, durable apron chain, and safety bumper make the Classic Spreader by ABI a cinch to use. Dig a little deeper and you’ll find that it’s designed to not only be easier to use, but work better than any of the competition! Our innovative variable speed spread and shredding bars ensure a finer, better spread-every time-for a long time!

Built Tougher To Last Longer

We built the Classic Spreader to be tough as a tank, with heavy welded steel construction, rust-resisting epoxy box lining, Commercial-Grade Coating AUE-370, and heavy duty components. Beyond that, we designed the classic spreader to be easy to maintain and service, ensuring it’ll be working hard for many years! And just in case, each Classic Spreader is covered by a hefty warranty!

Healthier Pastures

Manure is an integral part of a healthy farm, and getting it out of the stable and into your pasture is made even safer and easier with the Classic Spreader. With our innovative shred-and-spread design and variable-speed operation, manure is spread more evenly and finely. A finer and more even spread gets the manure’s rich nutrients back into the ground as quickly as possible, which ensures your pastures are safer and healthier for your horses!

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader Line Drawing

Gauge Steel

10

Beater Bars

3

Flow Control Speeds

4

Limited Warranty

3 Year / Lifetime

Built in Lancaster Pennsylvania, by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!

4-Speed Variable Flow Control

Unlike most competitors, all ABI Classic Manure spreaders feature the ability to control the flow rate of manure being applied to the ground with 4 different speeds. Flow control is accomplished by speeding up or slowing down the apron web, that feeds manure to the back beaters, independently of ground speed. The speeds are adjusted via the front lever and enables the operator to either empty the manure as fast as possible or apply controlled amounts of manure to specific areas to maximize its’ fertilizer value. Variable flow control also enables this spreader to handle a wider range of manure, as manure consistency can change depending on manure type, bedding material, stage of decomposition, and weather, without causing damage or additional maintenance to the spreader. And finally having 4-speeds encourage an eco-balanced pasture by enabling a slow manure feed rate and high beater spin rate for fine shredding and spreading.

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader Beater Bars

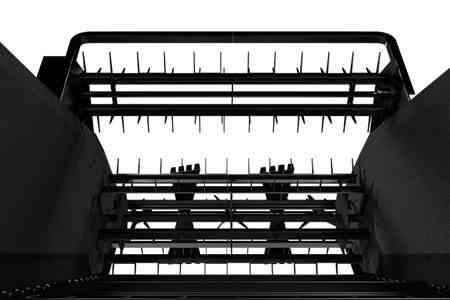

Shreds & Then Spreads - 3 Beater Bars

The 125 cu. ft. model is equipped standard with 3 beater bars. Two designed to shred manure and the other designed to spread it evenly. The shredder beaters, with 120 shredding blades, is geared slower than the wide spread beater to maximize shredding power. The spreading beater is expertly designed to further breakdown the manure and evenly distribute it on the ground. The 125 cu. ft. manure spreader has 10 large wide spread paddles. Shredding before spreading and then evenly spreading over a wide swath, exposes more manure surface to sunlight which allows it to dry and decompose far more quickly. Owning an ABI manure spreader that both shreds manure before it spreads and also controls the amount of manure being applied to the ground, enables the horse owner to help maintain an eco-balanced pasture. An eco-balanced pasture can help reduce colic, increase pasture turn efficiency rates, help produce more vigorous grass growth, and reduce odor & flies around the farm.

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader End Gate

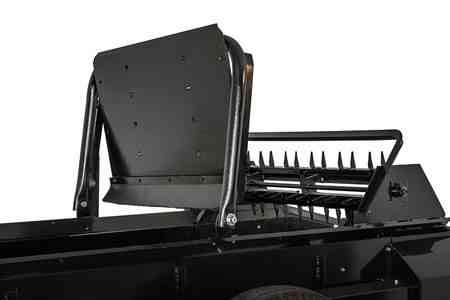

Hydraulic End Gate

The Hydraulic End Gate is designed to close off the back end of the manure spreader to prohibit spillage out the back of the spreader into the barn aisle or during transport. The end gate is raised and lowered hydraulically and serves to additionally help deflect flying manure away from the operator and tow vehicle while spreading.

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader Fines Pan

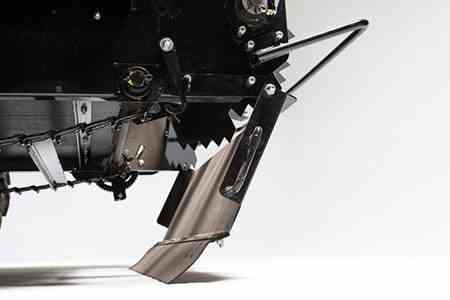

Fines Pan / Litter Pan

For those that leave nothing to chance, the Fines Pan prevents small fines of manure from falling off the back of the spreader and to the ground without first being processed by the beater bar. The pan has a release for easy cleaning and is replaceable. The Fines Pan can also assist in preventing manure from falling out the back of the spreader during loading and transport. A fines pan is highly desired when spreading dry material such a saw dust bedding, wood chip bedding, or dry compost; any type of material with small fines.

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader End Gate

Hydraulic End Gate

The Hydraulic End Gate is designed to close off the back end of the manure spreader to prohibit spillage out the back of the spreader into the barn aisle or during transport. The end gate is raised and lowered hydraulically and serves to additionally help deflect flying manure away from the operator and tow vehicle while spreading.

Ground Driven Manure Spreaders, 25, 50, & 65 cu ft – Compact Manure Spreaders Fines Pan

Fines Pan / Litter Pan

For those that leave nothing to chance, the Fines Pan prevents small fines of manure from falling off the back of the spreader and to the ground without first being processed by the beater bar. The pan has a release for easy cleaning and is replaceable. The Fines Pan can also assist in preventing manure from falling out the back of the spreader during loading and transport. A fines pan is highly desired when spreading dry material such a saw dust bedding, wood chip bedding, or dry compost; any type of material with small fines.

ABI spreaders are fully-welded with COR-TEN steel to be tank-tough through and through. Our extremely thick COR-TEN steel provides tremendous longevity without the ridiculous expense of stainless steel. So yes, our spreaders aren’t shiny like your kitchen appliances for good reason: stainless steel is not as structurally sound as COR-TEN. Below we have detailed out why our spreaders are built to outlast the barn; and the competition.

Manure Spreader, Horse Manure Spreader

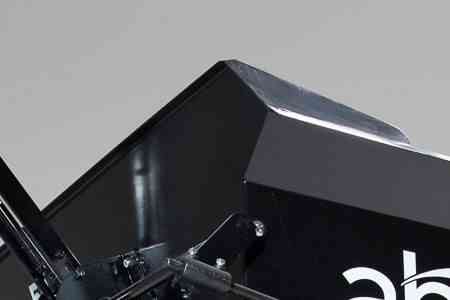

Corrosion-Resistant Steel

We start with extremely thick 10 gauge corrosion-resistant COR-TEN steel construction. Unlike most spreaders, the Classic Spreader is a longterm “one-time” investment which has a fully welded box frame, using thicker steel, for worry-free durability. COR-TEN steel may be exposed to the elements, even unfinished, and rust will not perforate it for decades. With COR-TEN steel, you get the longevity and strength required to build a world-class spreader, without the unneeded additional expense and structural weakness of stainless steel.

Spreader Liner

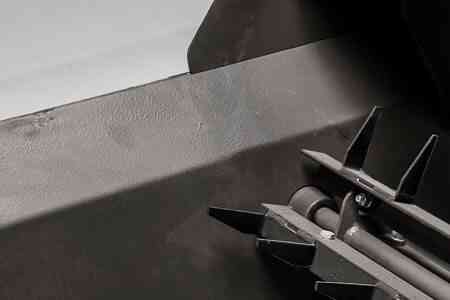

Protective Body Liner

The inside of the spreader body is coated with an epoxy box liner. The epoxy box liner adds an industrial seal to protect from the severe corrosive effects of urine filled manure. Epoxies are commonly used to line underground sewage tanks and pipelines, and even protect the hulls of barges in salt water.

Spreader, Flooring

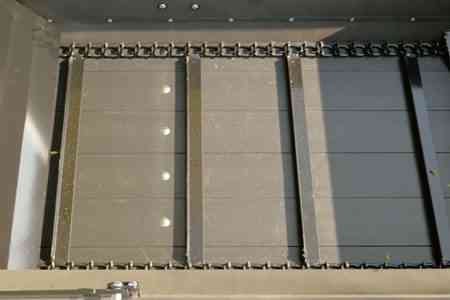

Lifetime Poly-Lumber Flooring

The bottom flooring is constructed of extremely thick tongue-and-groove polyvinyl lumber that will never rot, rust, or need replacing. Even better yet, the tongue-and-groove construction prohibits the individual poly-boards from warping, preventing excessive wear or damage to the apron web. This is a premium maintenance free flooring that will last and comes standard with a limited lifetime warranty.

PTO Manure Spreader, 125 cu ft – Horse Manure Spreader

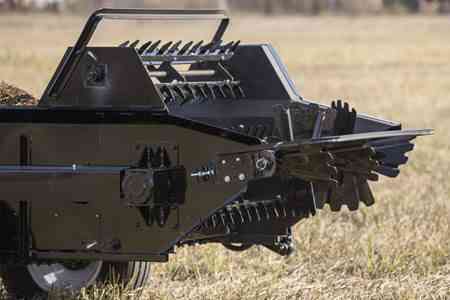

Superior-Quality Craftsmanship & Components

Built in Lancaster Pennsylvania, by highly skilled craftsman with decades of spreader building experience, these spreaders are crafted for daily farm-use-conditions and made of the most durable components we know of. Materials such as grade-5 bolts, greaseable bearings, oil-impregnated bronze bushings, heavy-duty size 60 roller chain (nearly 1″ wide), T-Rod apron chain, and hardened sprockets ensure longevity. You can judge a spreaders materials and components quality by its overall unit weight, the heavier the better. The ABI spreader weighs nearly 1/3 more than equivalently sized competitors spreaders. Now that is tangible quality you can feel!

Rustoleum

Commercial-Grade Coating (PPG AUE-370)

All steel components are sand-blasted before painting to prime for perfect adhesion. A special commercial-grade coating (PPG AUE-370), a black gloss acrylic urethane paint twice as thick as Rust-Oleum is then applied. Unlike powder-coating, this paint is easy to repair and touch-up and moisture cannot get behind it which eliminates the possibility of rust forming under the finish layer.

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Enhanced Standard Warranty For Farm, Ranch, and Commercial Tools

Enhanced Standard Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a limited warranty on this product. See warranty documentation for details.

  • Mechanical: 3 Year
  • Box & Frame: 10 Year (Farm & Ranch) / 3 Year (Commercial)
  • Apron Chain: 10 Year (Farm & Ranch) / 3 Year (Commercial)
  • Poly Floor: Lifetime

Capacity

Classic Spreader 125ft3
Heaped Capacity 125 cu ft
Struck Capacity 84 cu ft
# of Horses Up To 22

Features

Classic Spreader 125ft3
Platform Commercial Ag
PTO Driven: Yes
Steel Type: COR-TEN
Steel of Gauge: 10
# of Beaters: 3
In-line Shreddding Beater: Yes
# of Spreading Paddles: 10
# of Shredding Blades: 120
Flow Control Speeds: 4
Speed Adjustment: Pull Rope
Spray Shield: -
Bed Liner: Yes
Poly Lumber Floor: Yes
Jack Stand: Skid Plate
Tires Flotation
Ratcheting Hubs: -

Min, Vehicle Requirements

Classic Spreader 125ft3
Tractor Type: Compact & Utility
Min. Horsepower: 35 hp
Min. Hydraulic Pump: -
Utility Vehicle Type: -
Min. CC: -

Weights

Classic Spreader 125ft3
Unit Weight: 2,650 lbs
Shipping Weight: 2,650 lbs
Empty Tongue Weight: 200 lbs

Unit Dimensions

Classic Spreader 125ft3
Total Length: 234" (19' 6")
Total Width: 86" (7' 2")
Total Height: 66" (5' 6")
Box Length: 125" (10' 5")
Box Width: 48" (4')
Box Height: 24" (2')
Box Flared Width: 53" (4' 5")
Loading Height: 50" (4' 2")

Warranty

Classic Spreader 125ft3
Mechanical 3 Year
Workmanship (Farm & Ranch): 10 Year
Workmanship (Commercial): 3 Year
Poly Lumber Floor: Lifetime

Attributes

125 ft³ PTO - Large Manure Spreader
Connection Pin Hitch / Drawbar
Power Range 35 – 60 h.p. Tractor, 60 – 75 h.p. Tractor, 70 – 105 h.p. Tractor, 100 – 150 h.p. Tractor
Tow Vehicle Tractor, Compact Tractor, Utility Tractor, Large-Utility Tractor
Size
Other Attributes Hydraulics Optional, PTO Required, PTO Driven
Market
