The World's Premier Arena Drag

Used & recommended by leading organizations like the AQHA, NRHA, Lazy E Arena, and many of the industry's top horsemen, the ABI DragMaster Elite is the world's premier arena drag! With all the features of the ABI DragMaster Elite, you can easily create proper depth, consistent moisture content, and footing consistency to create a safe, healthy, and beautiful arena footing for your horses.
Water Trailer

Ground-Engaging Components

5

Possible Configurations

150

H.P. Rating

45 - 150

Limited Warranty

36-month

Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the ABI DragMaster Elite wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.

Ground Engaging Components

Independent Ground Engaging Components

Revolutionary Design & Industry Exclusive Features include Motor Grader Style Ground Plane: The pull behind design offers a long distance between the tractor wheels and the ABI DragMaster Elite wheels. The leveling blade sits in between these wheels creating the perfect ground plane that is critical for level consistent footing. The Independently Controlled Hydraulic Leveling Blade is independent from the frame and other ground engaging components. This enables precision leveling without changing the conditioning depth.

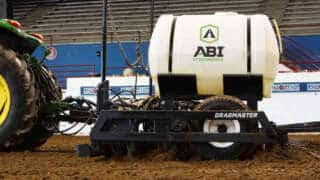

The ABI DragMaster Elite is shown fully equipped. This is the configuration most of our customers will need. However, some customers may not need all the included features so they may be removed from the ABI DragMaster Elite. Some indoor arenas that have pure sand may not need the hydraulic scarifier system. Indoor arenas that have an overhead watering system may not need the PTO water system. Although these features may be removed to lower the purchase price ABI recommends the fully equipped configuration for the vast majority of our customers.

Base Model
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
Configuration 1
Base Model with Scarifiers
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Scarifier System
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
Configuration 2
Fully Equipped
  • Hydraulic Grading/Leveling Blade
  • Adjustable Grooming Rods
  • Hydraulic Scarifier System
  • Hydraulic Transport & Gauge Wheels
  • Profile Blade
  • Finish Drag Bars
  • 300-500 Gallon PTO Water System
Configuration 3

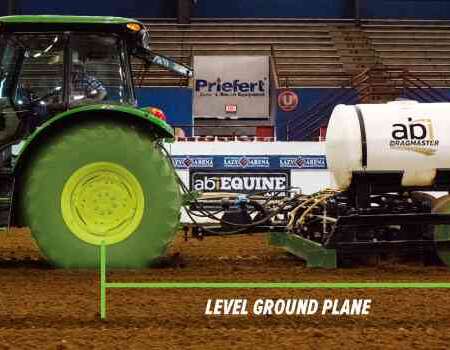

Level Ground Plane

Pull-Behind Ground Plane Design

The innovation behind the ABI DragMaster Elite begins with its pull-behind design. By creating a ground plane, this design offers distance between the wheels of the tractor and DragMaster Elite. The Hydraulic-leveling blade sits between these wheels for precision grading creating perfectly level and consistent footing, which allows the ABI DragMaster Elite to outperform all 3-point arena drags.

Wheel

Hydraulic Transport & Gauge Wheels

Supporting the ABI DragMaster Elite and controlling its working depth are the hydraulic transport & gauge wheels. These wheels keep the arena footing consistent with every pass. Consistency is key to the performance and safety of the horse. The main hydraulic cylinder controls the gauge wheels, which allows you to lock in your settings for repeatable and precise results. Whether at home or an event, every operator can ensure a consistent riding experience for each horse and rider.

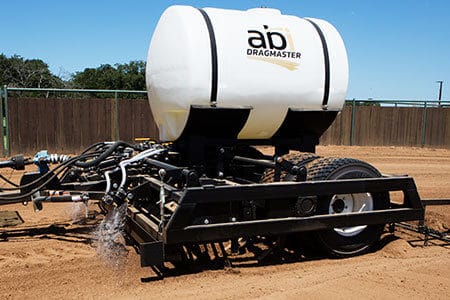

Water System

Massive PTO Watering System

The available massive PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control. The DragMaster Elite has the largest watering system available on any arena drag in the world ranging from 300gal to 500gal. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy!

The DragMaster Elite’s independently-adjustable ground-engaging components can be precision-adjusted from the frame for ultimate control! After the hydraulic leveling and grading blade creates a level traveling surface, the adjustable grooming rods, scarifiers, profile blade, and drag bars systematically pulverize, re-grade and loosen the footing, reinforce the base, and create the ideally-cushioned footing profile!

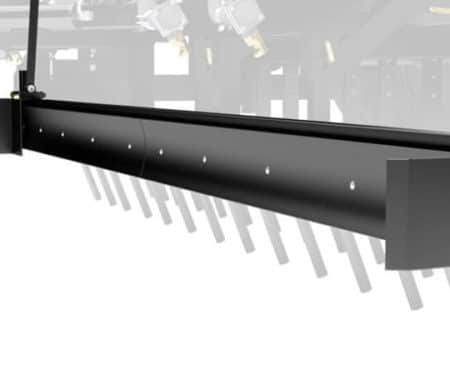

Hydraulic Grading

Hydraulic Grading & Leveling Blade

Maintain Consistent Footing Depth

The first adjustable component is the hydraulic grading & leveling blade. Used to maintain consistent footing depth and equalize high and low areas across the arena. Level your arena automatically with the optional laser system!

Grooming Rods

Adjustable Grooming Rods

Loosen Material & Incorporate Water

The 2 rows of adjustable grooming rods are the first components to loosen material, and are designed to incorporate the DragMaster Elite’s water into the footing.

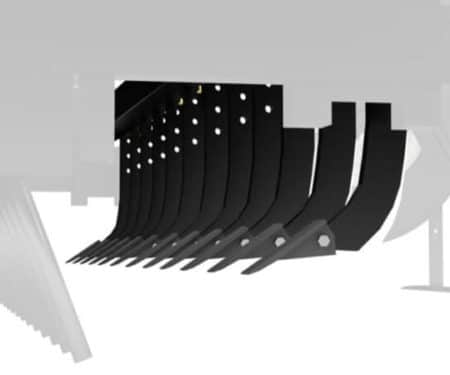

Hydraulic Scarifier

Hydraulic Scarifier System

Break Up The Hardest Compacted Material

The DragMaster Elite’s available hydraulic scarifier bar breaks up the hardest compacted material for when an arena sees heavy use or hasn’t been properly loosened for a time. The bar is independently adjustable from the rest of the components, enabling them to be engaged or disengaged easily. The replaceable tips are made from a hardened, wear-resistant steel.

Profile Blade

Profile Blades

Slice Through Material From The Bottom Up

The patented Profile Blades of the DragMaster Elite can loosen 100% of the arena footing with every pass! No longer does an operator have to make multiple passes to loosen all the footing. The Profile Blades slice through material from the bottom up, not the top down. This eliminates all ridges in the footing, allowing the footfall of the horse to be flat and perfect every time!

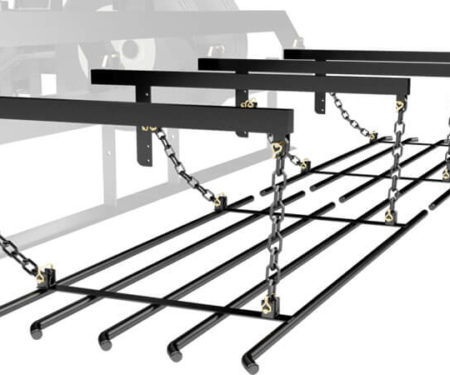

Finish Drag Bar

Finish Drag Bars

Leave A Signature Finish

The Drag bars of the DragMaster Elite are designed to leave a signature finish while filling in any remaining small holes. These bars can be adjusted to apply the perfect amount of pressure to the footing depending on the footing consistency and moisture level.

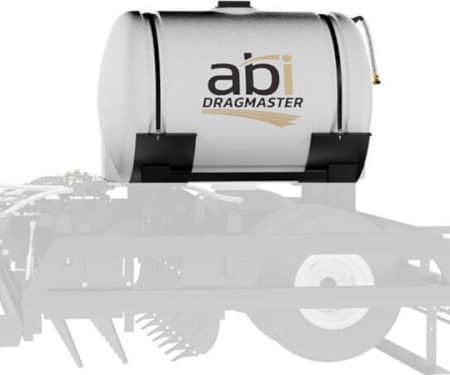

PTO Watering System

300-500 Gallon PTO Water System

Regulate The Amount Of Water In Your Footing

The available PTO watering system regulates the amount of water in your footing, which is critical to its strength, cushion, and rebound, not to mention dust control! The DragMaster Elite has the largest watering system available on any arena drag in the world. The variable-output PTO-driven pump allows precision control from the tractor seat, making a perfect water application easy! 300 or 500 gallon size. For facilities with another arena moisture solution (water trailer, sprinklers, etc.), the DragMaster Elite can now be fitted without a water system from the factory!

Proudly manufacturered in the USA

Manufactured Right Here

You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.

Limited Warranty For Farm, Ranch, and Commercial Tools

36-month Warranty

We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.

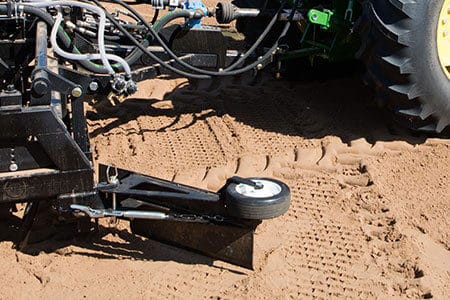

Rail Blade

Rail Blade

Every arena experiences footing displacement, especially ones that have heavy use. The rail blade rides along the edge of your arena and guides footing back into the path of the hydraulic leveling blade for even distribution across the arena!

Spray Hose

Spray Hose

The DragMaster Elite’s spray hose helps provide the extra polish and “finish factor” to arenas. Use it to clean panels and fencing, wash down your tractor and drag, or apply water to hard-to-reach areas like corners and entry areas. Long enough to be safely operated from the tractor seat!

Laser Systen

Laser System

Take all of the guess work out of grading your arena! The optional laser system ensures perfectly-consistent footing depth from one end of the arena to the other. Optional laser packages are specially configured to provide everything needed to maintain a level grade & consistent footing depth.

Base Unit

ABI DragMaster 8' 10' 12' 16'
Working Width 8' (96") 10' (120") 12' (144") 16' (192")
Min. PTO Horsepower 45 55 65 85
Max. Horsepower 100 120 150 150
Tractor Hydraulic Ports At least 2 in & 2 out (4 ports) Required
Hydraulic Leveling Blade Yes Yes Yes Yes
Adjustable Grooming Rods Yes Yes Yes Yes
# of Grooming Rods 23 29 35 47
Grooming Rod Spacing 2 Offset Rows (8" Center Per Row) 4" Space Between
Adjustable Profile Blades Yes Yes Yes Yes
Rear Finish Bars Yes Yes Yes Yes
Pin Hitch Yes Yes Yes Yes
Finish Rust Resistant Black Powder Coating

Wheel Configurations

ABI DragMaster 8' 10' 12' 16'
# of Wheels 4 4 4 4
Available Implement Tires 11L - 15SL I-1 8-ply, 30.6" MTD Diam., 10.7 MTD Width, 36 Max PSI
Available Max Flotation Tires - 31L - 15.5 15 8-ply, 30.6" MTD Diam. 14.3 MTD Width, 45 Max PSI

Rippers (Optional)

ABI DragMaster 8' 10' 12' 16'
Additional HP Required 10 10 15 20
Hydraulic Ports Required 3rd Set or Install Available Hydraulic 2-way Sequence Valve (HYDSV2M)
# of Scarifiers 10 12 14 18

Water Systems (Optional)

ABI DragMaster 8' 10' 12' 16'
Tractor PTO Required Yes Yes Yes Yes
PTO Pump Cast iron 6-roller pump; Max. flow 62 gpm; Max. pressure 150 psi
# of Brass Nozzles 4 4 4 4

300 Gallon System 8' 10' 12' 16'
Available Yes Yes Yes No
Additional HP Required 10 10 10 -
Implement Tires Yes Yes Yes -

500 Gallon System 8' 10' 12' 16'
Available No Yes Yes No
Additional HP Required - 15 15 15
Implement Tires - Yes Yes Yes

Laser Systems (Optional)

ABI DragMaster 8' 10' 12' 16'
Hydraulics Packages Available proportional valve and hoses factory installed on drag. (Requires 4th set of hydraulic ports on tractor or 3 sets of ports with HYDSV2M Installed) Must be ordered as "open" or "closed" to match with tractors hydraulics system.
Electronics Packages Available transmitters: Dual Slope, Single Slope, or Level. Also included in the package is the Receiver, Detector, and (Operator View) Control Box.
Receiver Pole Available Available Available Available
Transmitter Tripod Available Available Available Available

Accessories (Optional)

ABI DragMaster 8' 10' 12' 16'
Wall / Rail Blade Available Available Available Available
Spray Hose Available Available Available Available

Miscellaneous

ABI DragMaster 8' 10' 12' 16'
Fully Equipped Dry Weight 2,800 lbs. 3,400 lbs. 4,100 lbs. 5,400 lbs.
Fully Equipped Min PTO HP 65 w/4WD 70 w/4WD 85 w/4WD 115 w/4WD
Warranty 36-month 36-month 36-month 36-month
Designed Use Horse Arena Horse Arena Horse Arena Horse Arena
Made In USA Yes Yes Yes Yes

Attributes

ABI DragMaster Elite
Power Range 60 – 75 h.p. Tractor, 70 – 105 h.p. Tractor, 100 – 150 h.p. Tractor
Tow Vehicle Utility Tractor, Large-Utility Tractor, Row Crop-Ag Tractor
Product Type Horse Arena Drags
Connection Pin Hitch / Drawbar
Other Attributes Hydraulics Required
