Ground-Engaging Components
Scarifiers
Min Tractor H.P.
Limited Warranty

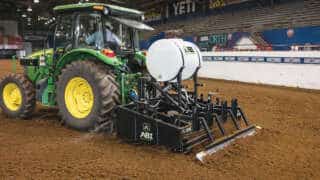

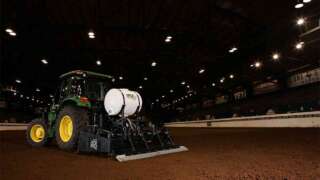

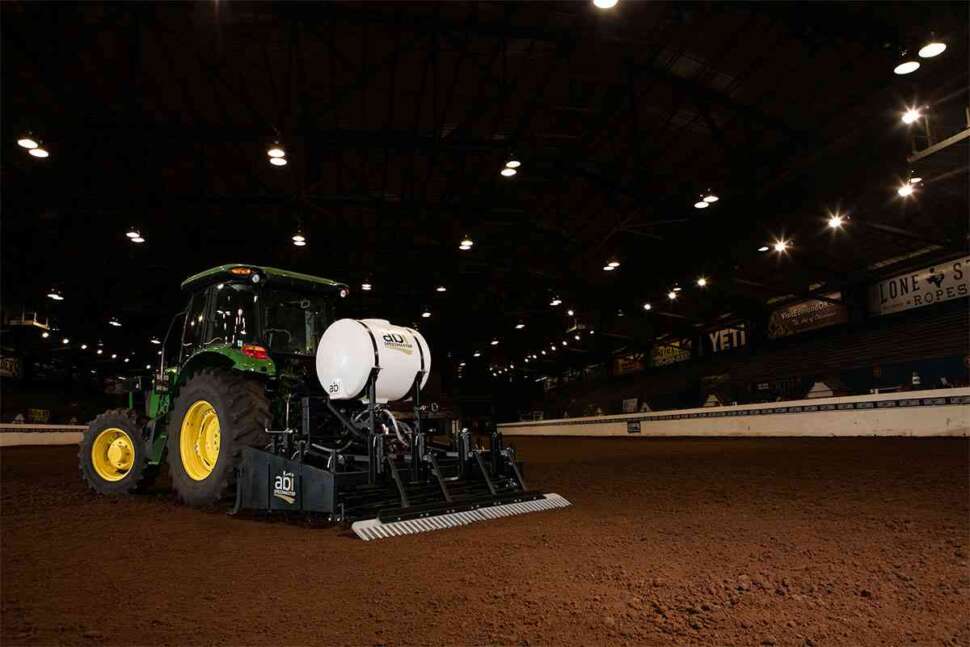

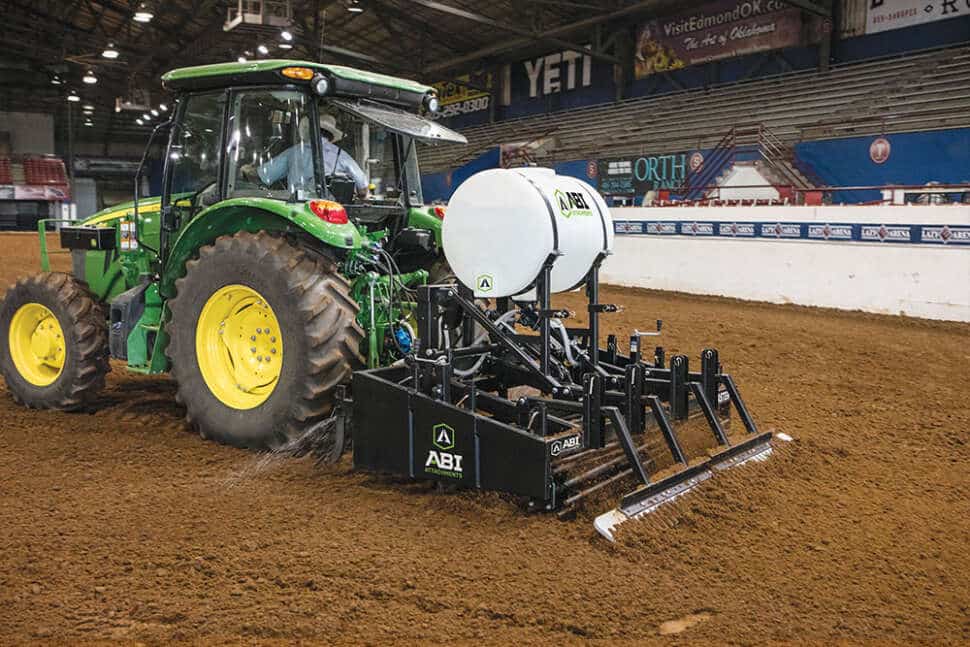

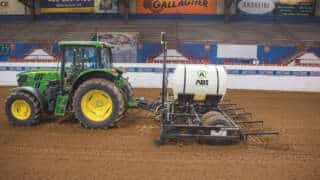

The Speedmaster features independent ground-engaging components arrayed and designed expressly for speed events. The hydraulic leveling blade allows users to expertly re-level footing from the seat of the tractor and the hydraulic rippers quickly and powerfully pulverize compacted areas. The PTO Water System allows operators to knock down dust along high-traffic areas without using a second piece of equipment. The Grooming Rods re-integrate the freshly groomed footing and create an even and consistent depth. The Rolling Basket and Finish Rake are the perfect 1-2 punch for knocking out any remaining surface inconsistencies and creating a picture-perfect finish. The result? Quick, professional arena grooming that inspires confidence in every competitor.

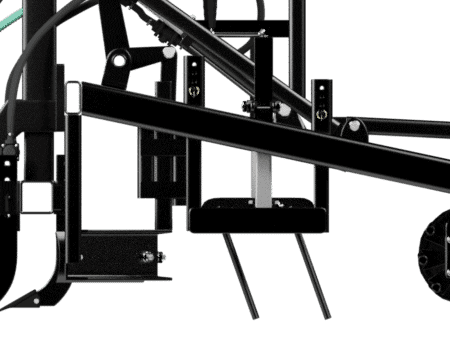

For ultimate control, all of the ground engaging components are independently adjustable, enabling you to get the perfect footing, base and finish for any discipline.

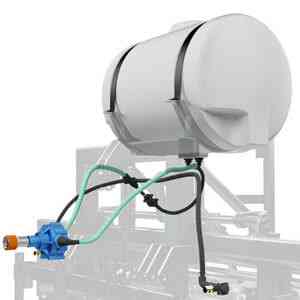

The ABI SpeedMaster features a watering system that maintains footing moisture levels and knocks down dust created by the drag during operation. This 110 gallon system uses a powerful PTO pump and brass flood nozzles, which are adjustable, making it easy to apply water for specific applications, such as the barrel pattern. Event facilities that drag frequently during events will appreciate this system’s ability to apply more water more quickly than competitors. The SpeedMaster’s PTO water system allows you to continually add water between runs, maintaining footing shear strength and stability, and controlling dust throughout the facility for horses, competitors and spectators alike. For additional water application needs, ABI offers a variety of water trailers perfect for any arena!

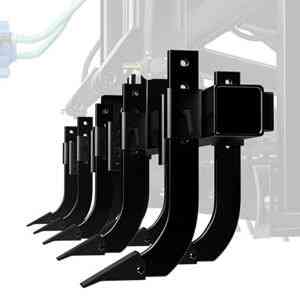

The ABI SpeedMaster features several independently controlled ground engaging components allowing for 5 points of control over the arena footing material. The double row of offset hydraulic rippers provides variable loosening action ideal for speed events. To enhance material flow and reduce large dirt clods, ABI’s exclusive double row of offset ripping teeth have more shanks per foot for increased consistency. With hydraulic control from the seat of the tractor, the operator is empowered to precisely control footing conditions with ease. Each shank has replaceable bolt on tips, for easy and affordable maintenance.

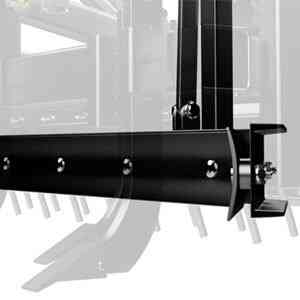

The ABI SpeedMaster brings significant advancement in performance drag design with the game changing hydraulic leveling blade! This innovative feature is exclusive to ABI! The SpeedMaster’s leveling blade moves independently from the frame so the operator can level an arena without lifting the 3 point connection and disengaging the drag’s other components. This precision hydraulic control is crucial for properly preparing footing for speed events!

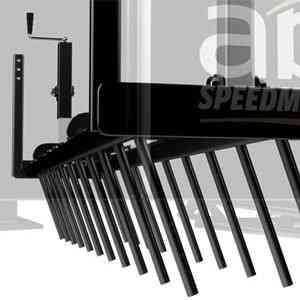

The ABI SpeedMaster features custom made rods designed specifically for grooming horse arenas. These two offset rows of replaceable grooming rods condition every inch of the footing to ensure ridge free consistency. The one inch diameter rods may be adjusted to properly condition the footing material after it has been loosened by scarifiers and leveled by the blade.The rods are strategically spaced and set at the ideal angle to allow for exceptional material flow and grooming results.
The rolling basket on the ABI SpeedMaster does much more than simply leave behind a rolled surface. This uniquely designed basket functions to control the drag’s operating depth and helps to prevent the drag from following tractor undulations. It pulverizes footing clods with ease as it packs the loosened material creating a stable footing ideal for speed events. The innovative rolling basket leaves behind a small top coat of loosened footing material to provide proper cushion and grip in the footing profile.

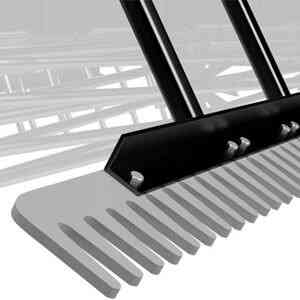

The finish rake is the final ground contact point and creates the ABI SpeedMaster’s signature finish. This rake is adjustable and can be locked down or allowed to float. This customization enables the SpeedMaster to create the perfect finish in nearly any footing material composition or moisture conditions. The rake is constructed of 1/2″ thick laser cut steel that is replaceable in one foot sections and is split in the middle for easier handling and consistent ground contact.
You want the best quality materials, you want the highest quality workmanship, you want your attachments made in the United States of America–and so do we! That’s why, since 1997, we’ve been manufacturing and selling equipment built to exceed your expectations, just like we should. This attention to detail creates products that are durable, reliable, and ready to do your toughest work–day after day.
We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will last a very long time. And to back that up, we offer a 36-month limited warranty on this product. See warranty documentation for details.
| ABI Speedmaster | 8' |
|---|---|
| Working Width | 8' |
| Min. Horsepower | 70 h.p. 4WD |
| Unit Weight | 2,165 lbs. |
| Total Width | 96" |
| Total Length | 86" |
| Total Height | 48" |
| Leveling Blade | Hydraulic Control 2" x 8" Cylinder |
| Laser Ready | Yes |
| # of Grooming Rods | 23 |
| Grooming Rod Spacing | 8" Center Per Bar 4" Space Between |
| Grooming Rod Gauge | 1" |
| Grooming Rods | Adjustable & Replaceable |
| # of Scarifiers | 9 |
| Scarifier System | Hydraulic Control 2" x 8" Cylinder |
| Scarifier Tips | Replaceable Hardened Steel |
| Hydraulic Ports Required | 2 Sets of Ports (2 In & 2 out) |
| Hydraulic Hoses | Included - #8 |
| Hitch Type | CAT II 3-Point |
| Designed Use | Horse Arena Only |
| Finish | Rust Resistant Black Powder Coating |
| ABI SpeedMaster | |
|---|---|
| Power Range | 60 – 75 h.p. Tractor, 70 – 105 h.p. Tractor |
| Tow Vehicle | Tractor, Large-Utility Tractor |
| Product Type | Horse Arena Drags |
| Connection | CAT II 3-Point |
| Size | 8Ft (96In) Width, 110 Gallons |
| Other Attributes | Hydraulics Required, PTO Required |
| Market | Equestrians |
