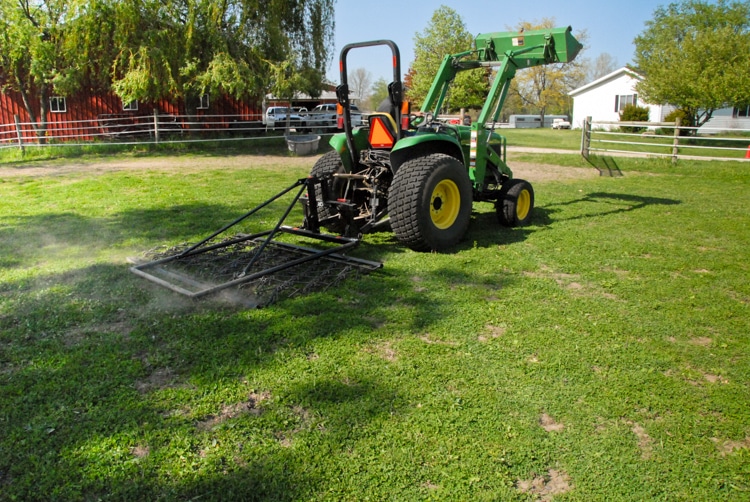

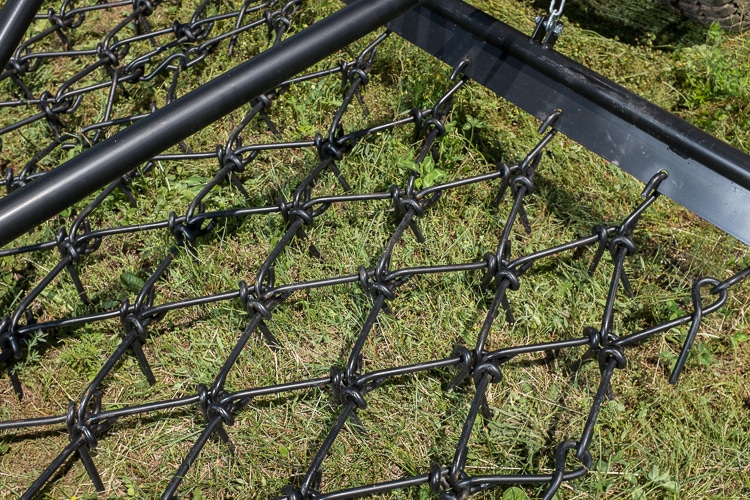

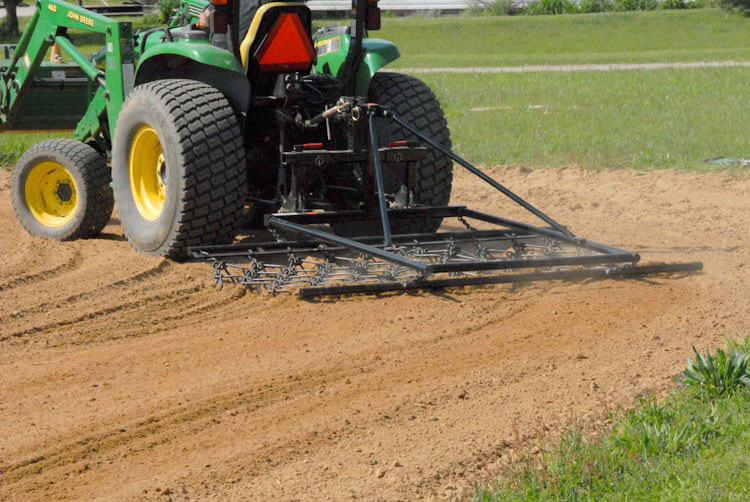

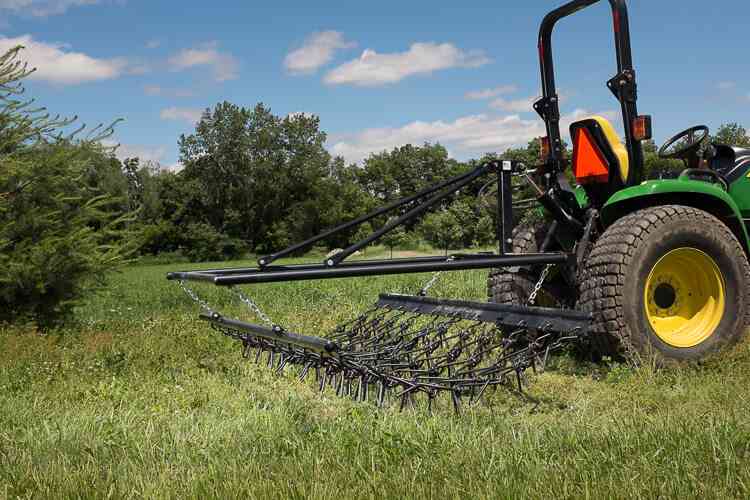

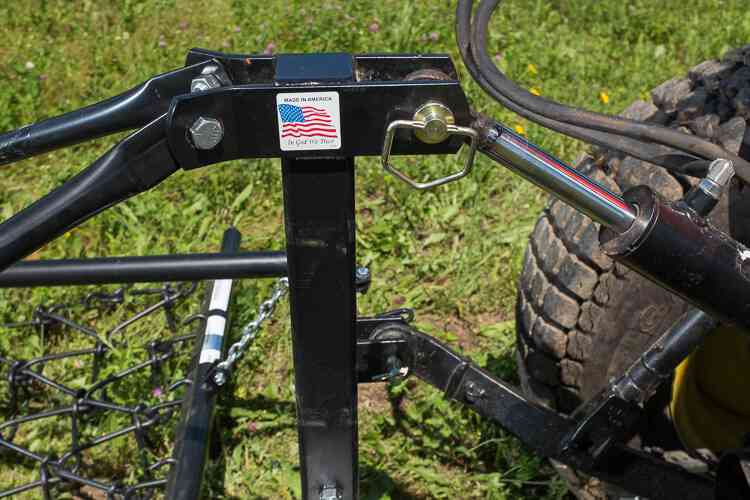

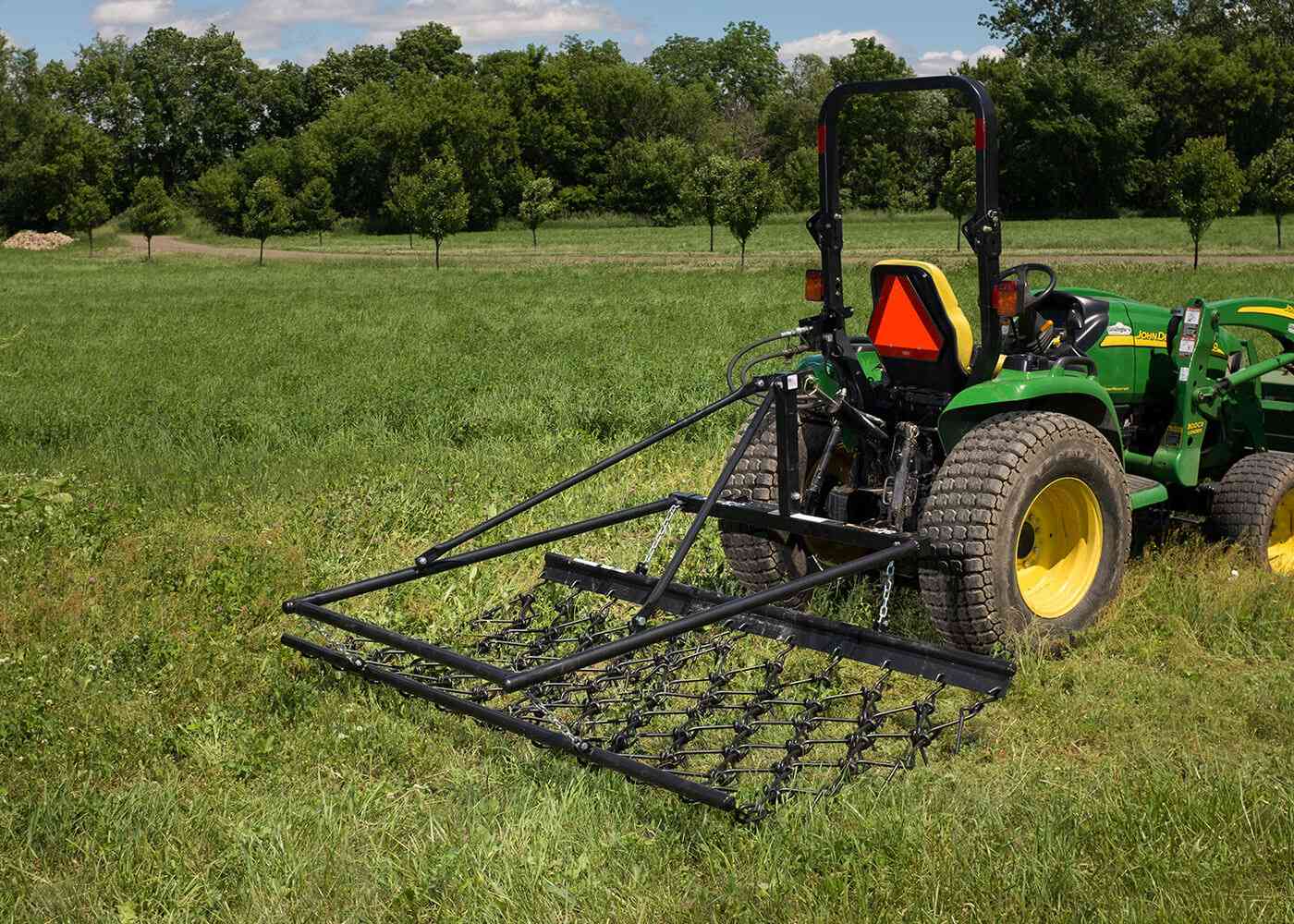

An economical method to lightly harrow gardens, food plots, pastures, paddocks, lawns, horse arenas and round pens, ball fields, driveways, trails, and more. Available with a three-point tractor lifting frame. The harrow mat itself is reversible and can be flipped for three levels of aggressiveness. Level one is most passive, with the tines facing upward. Level two allows the tines to face downward but also to release under pressure. Level three is the most aggressive, with the tines fully locked downward when pulled forward. The harrow mat is made of 1/2″ inch thick chain, made from high-carbon heat-treated steel. Each mat is 4 feet long from front to back, and the tines themselves measure four inches long. The available 3-point lifting frames are rated for CAT 1 tractors up to 50 hp and the mat is suspended by adjustable chains to allow it to stay in contact with the ground while operating over undulating terrain. Backed by a 24-month limited warranty! Attachment mounting pins and top link sold separately.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
| Size | 4 ft. | 6 ft. | 8 ft. | 12 ft. |
|---|---|---|---|---|
| Min. CC | 15 HP | 15 HP | 20 HP | 27 HP |
Attributes | ||||
| Power Range | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor | 18 – 23 h.p. Tractor, 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor |
| Tow Vehicle | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor |
| Connection | CAT I 3-Point | CAT I 3-Point | CAT I 3-Point | CAT I 3-Point |
| Product Type | Chain Harrows | Chain Harrows | Chain Harrows | Chain Harrows |
| Size | 4Ft (48In) Width | 6Ft (72In) Width | 8Ft (96In) Width | 12Ft (144In) Width |
| Other Attributes | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed | NO Hydraulics Needed, NO PTO Needed |
