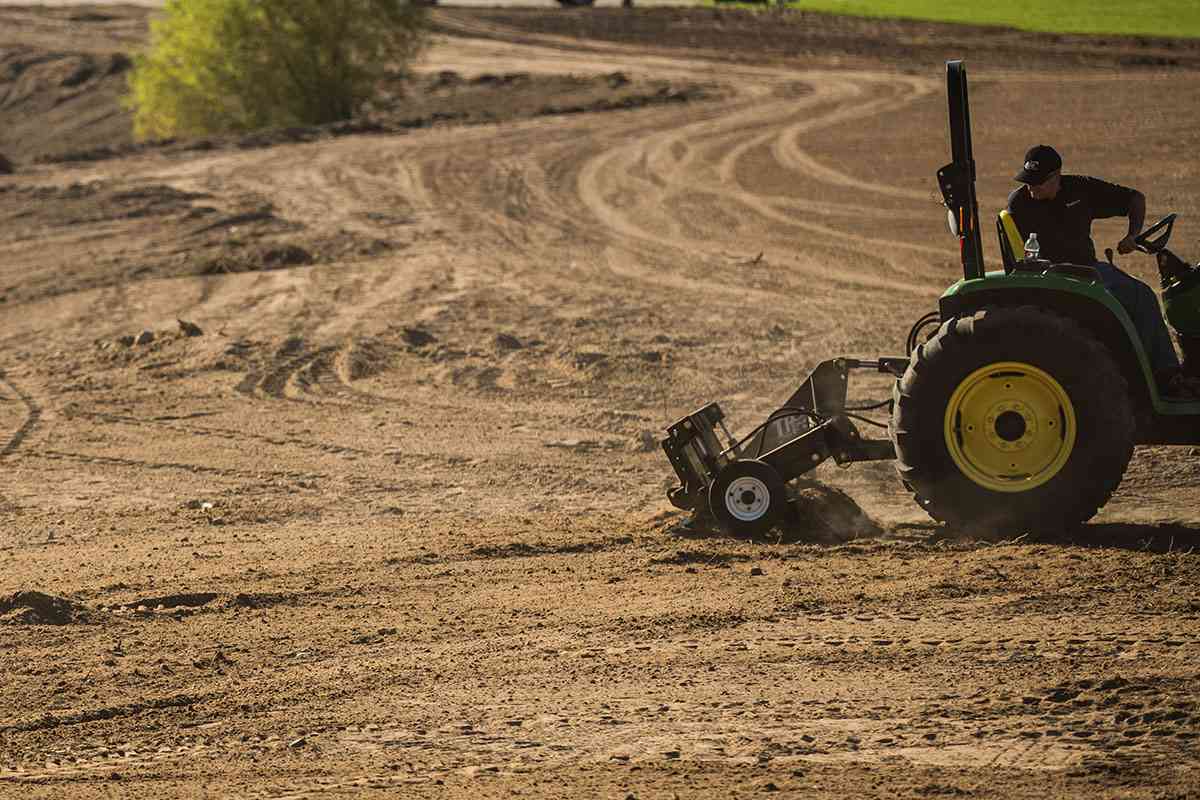

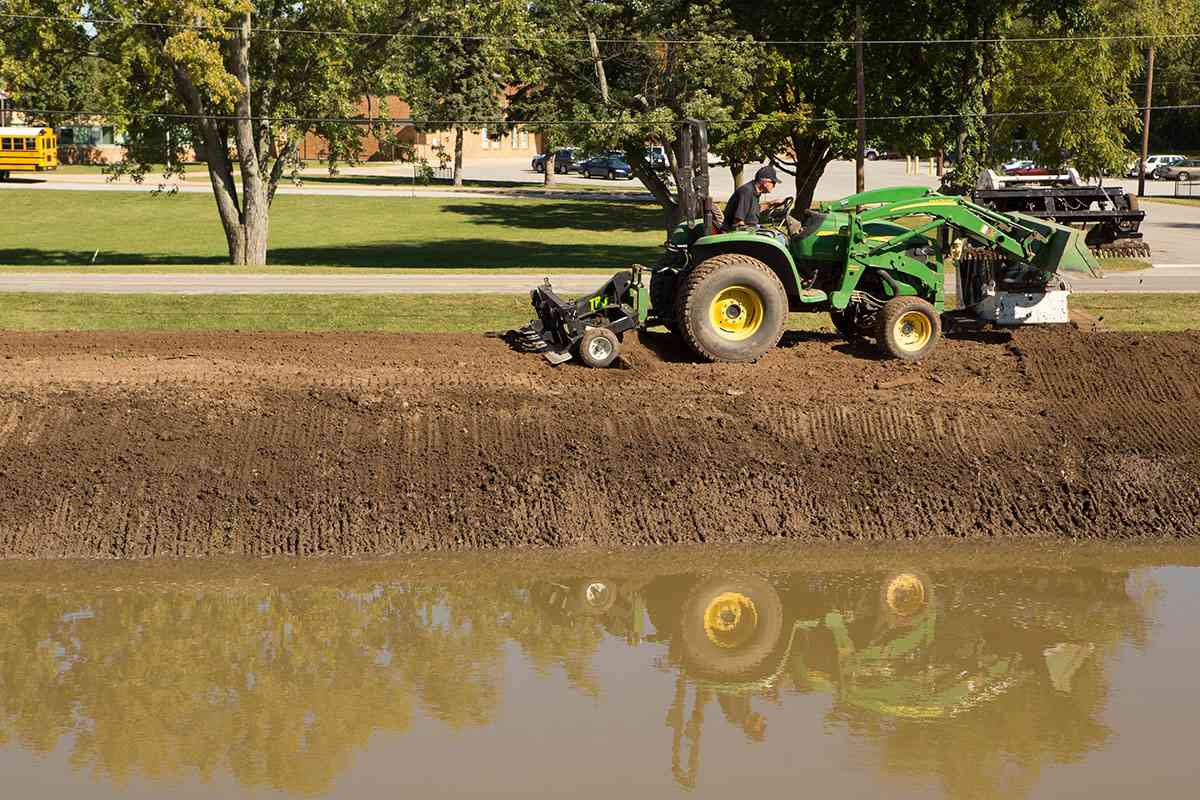

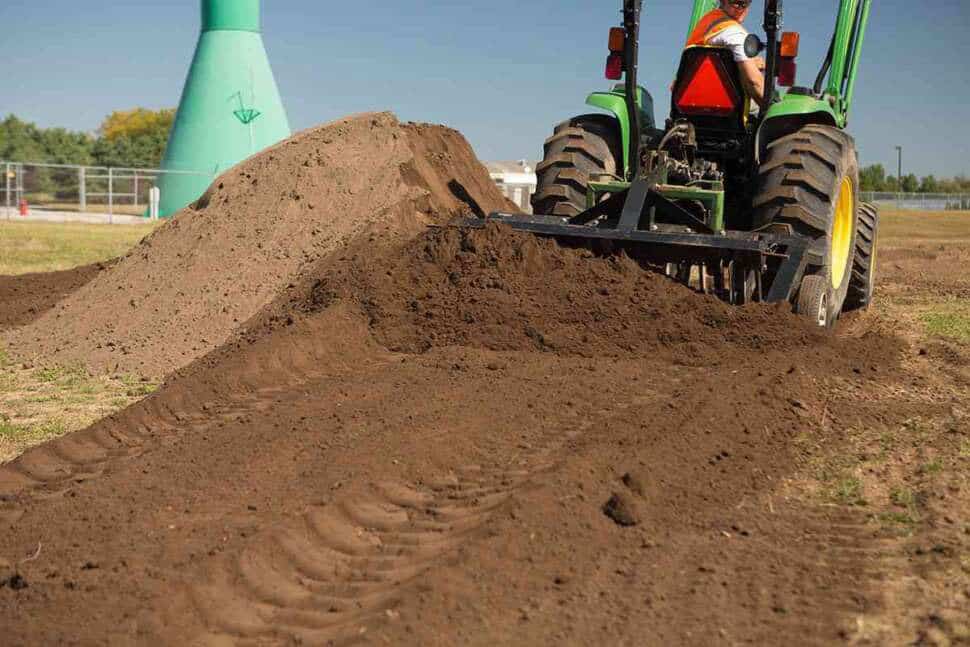

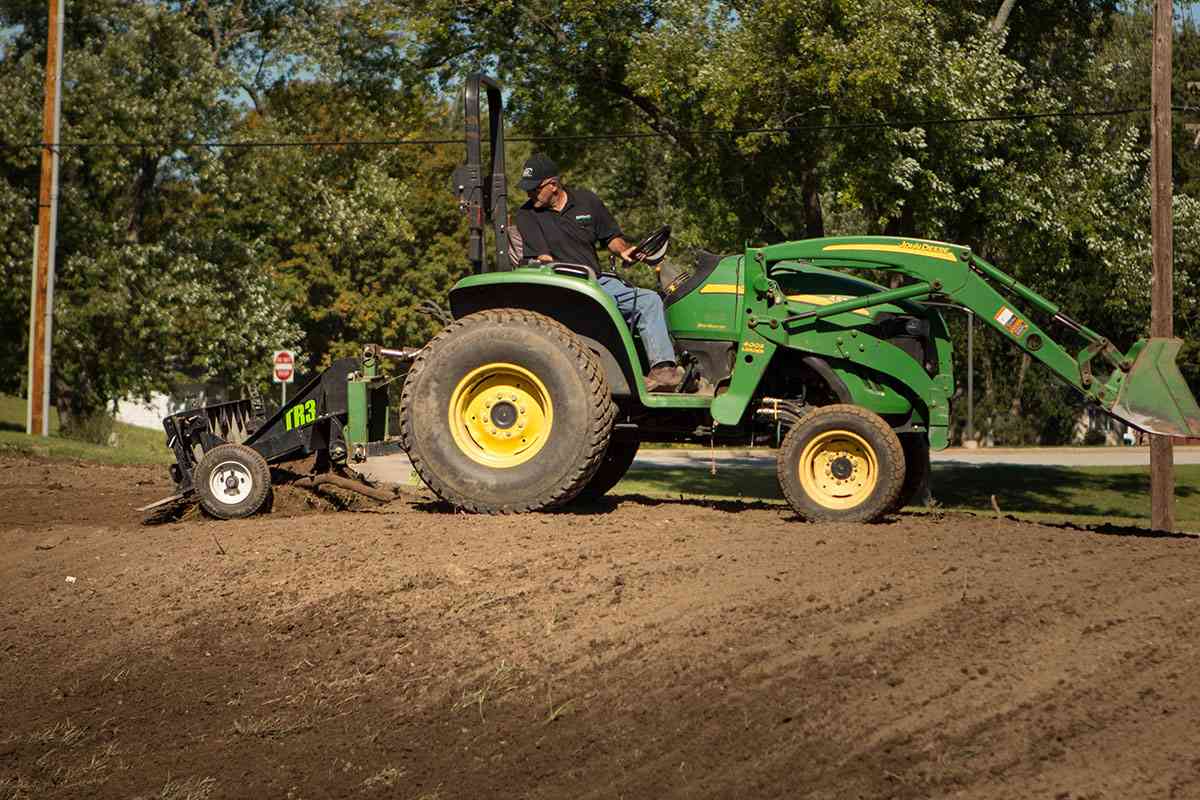

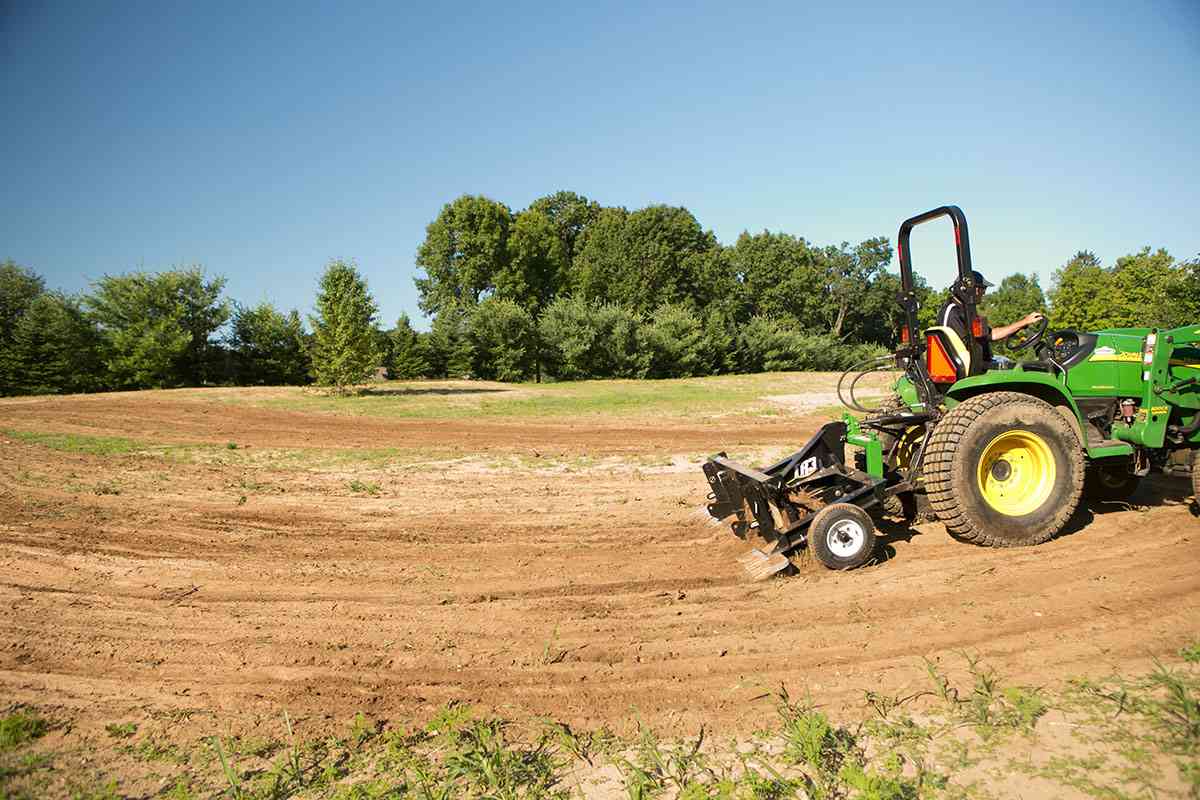

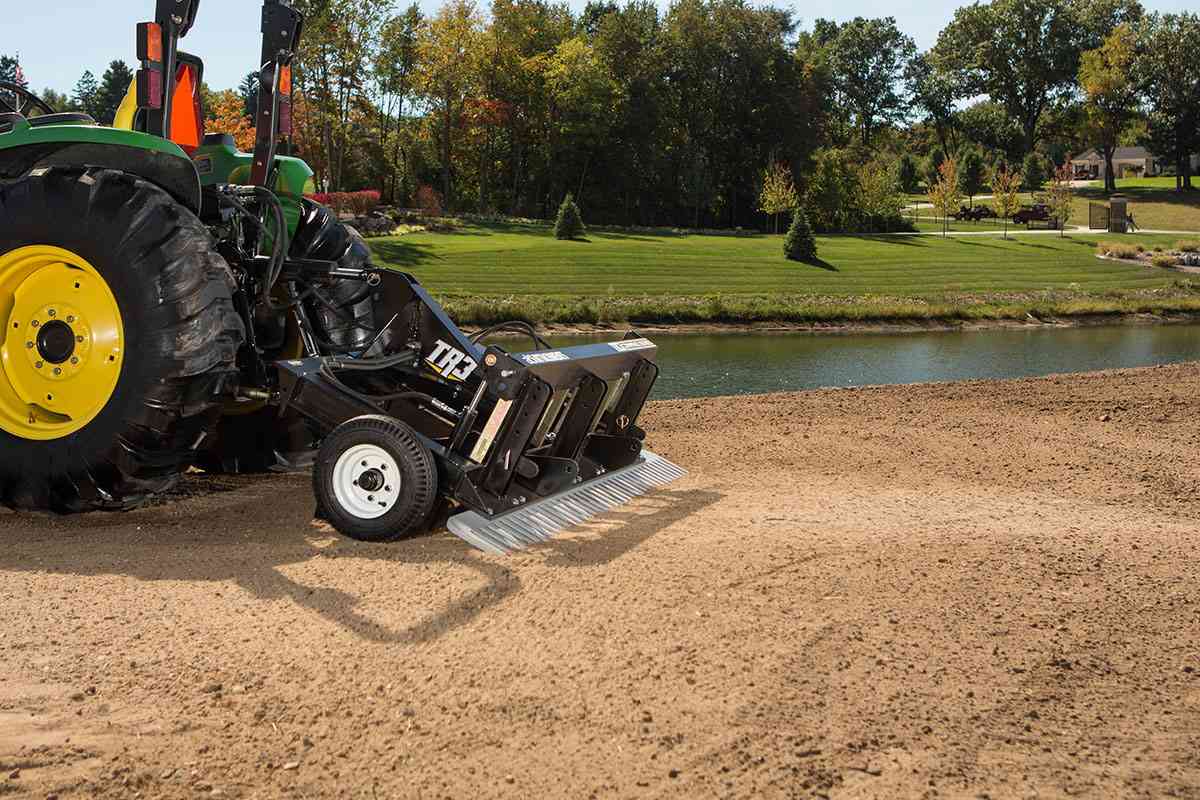

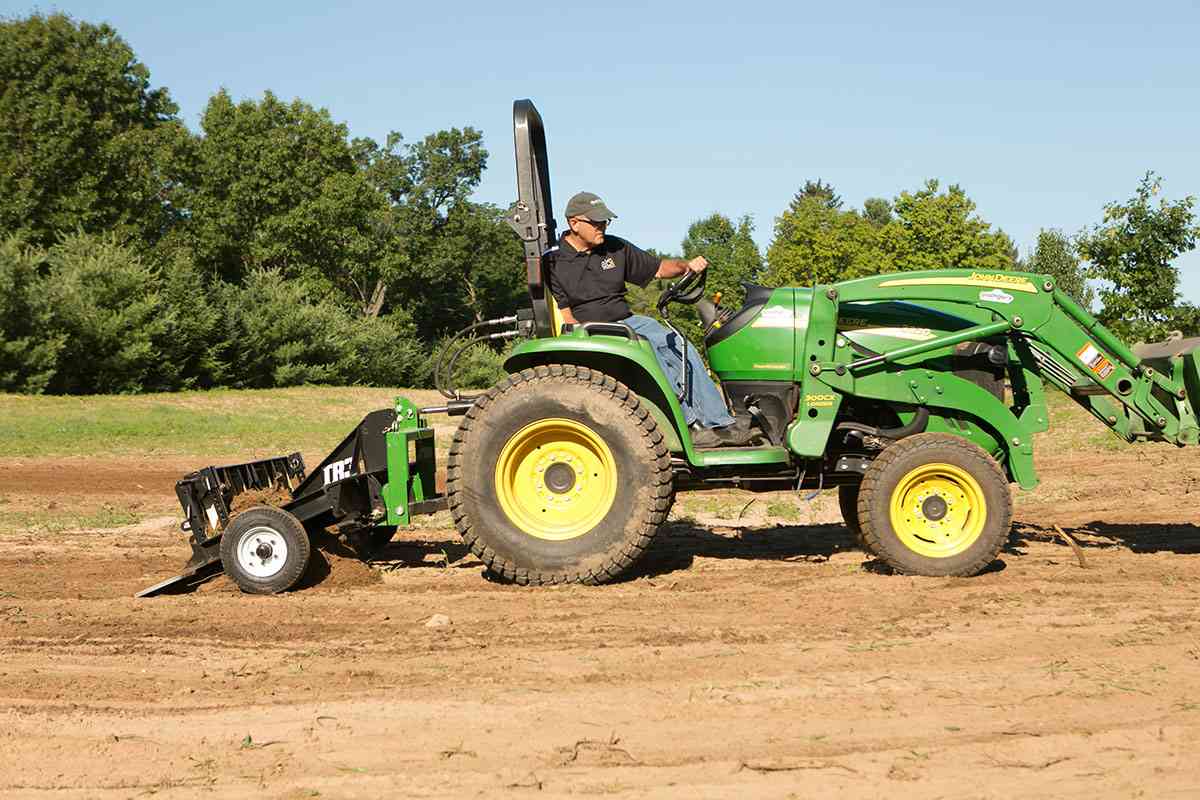

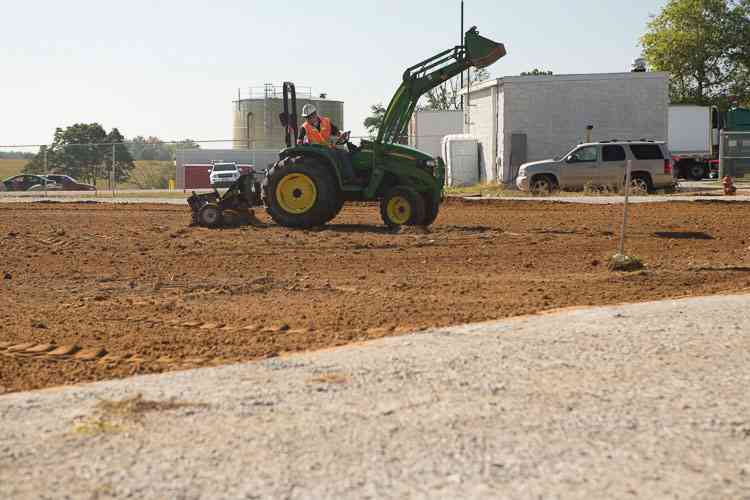

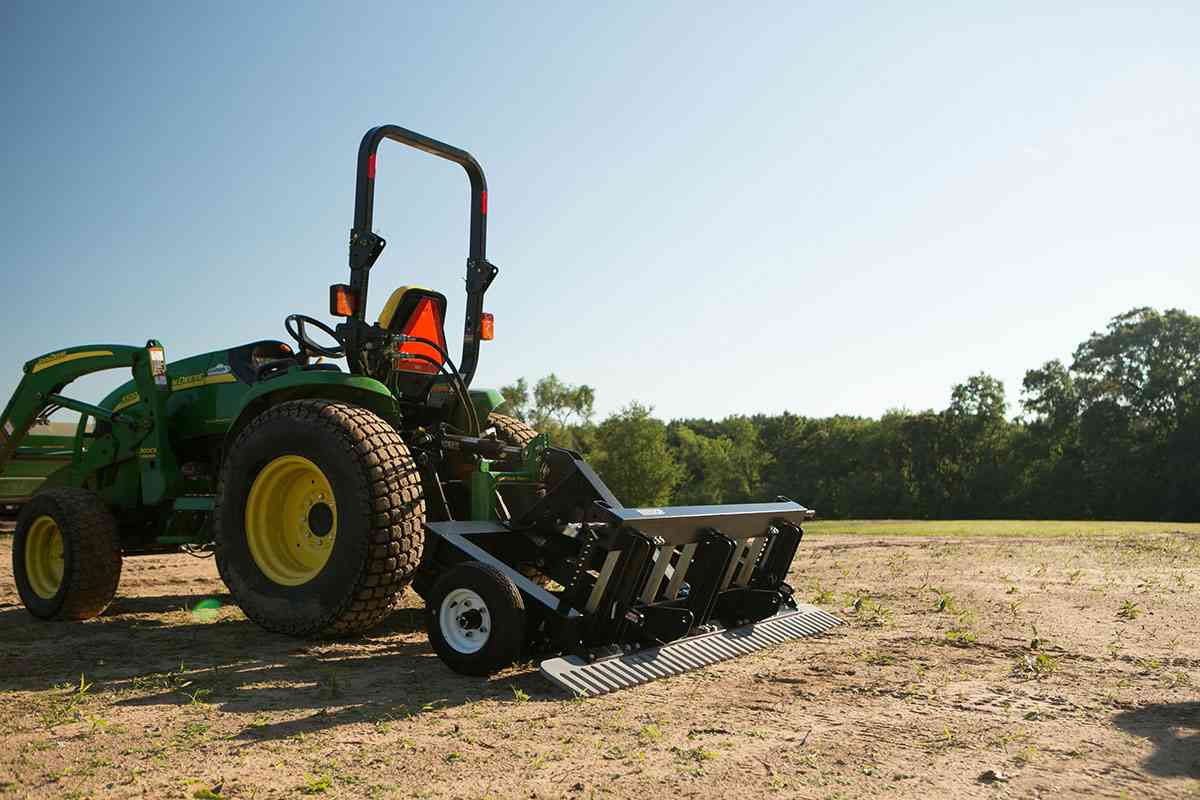

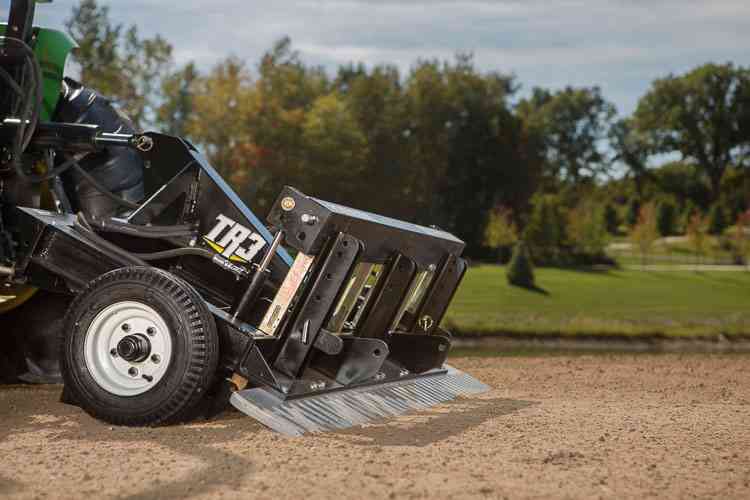

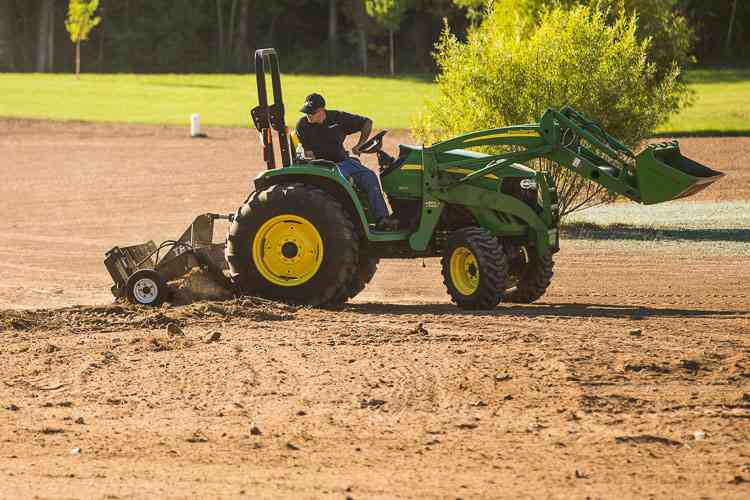

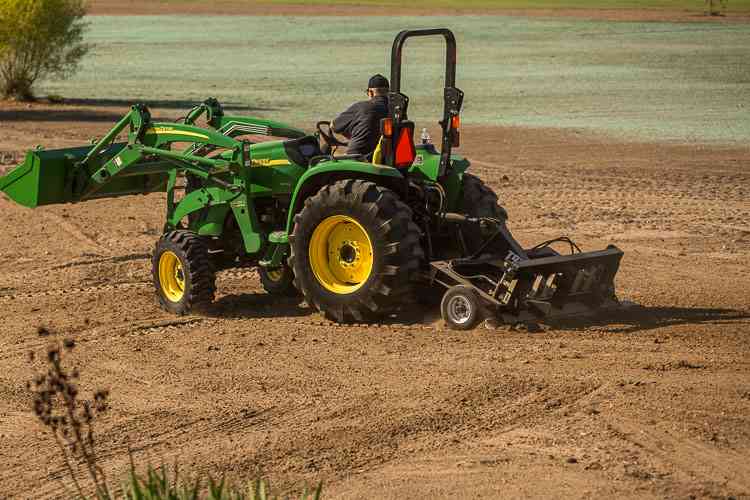

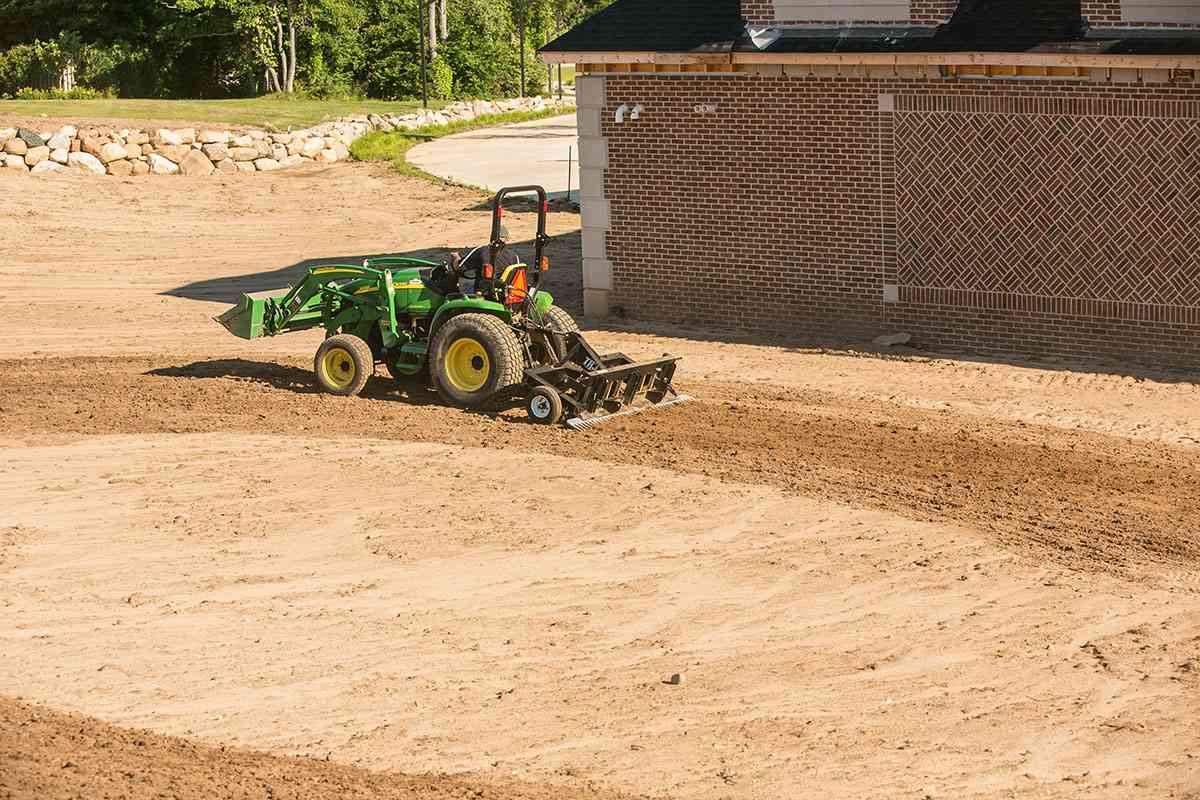

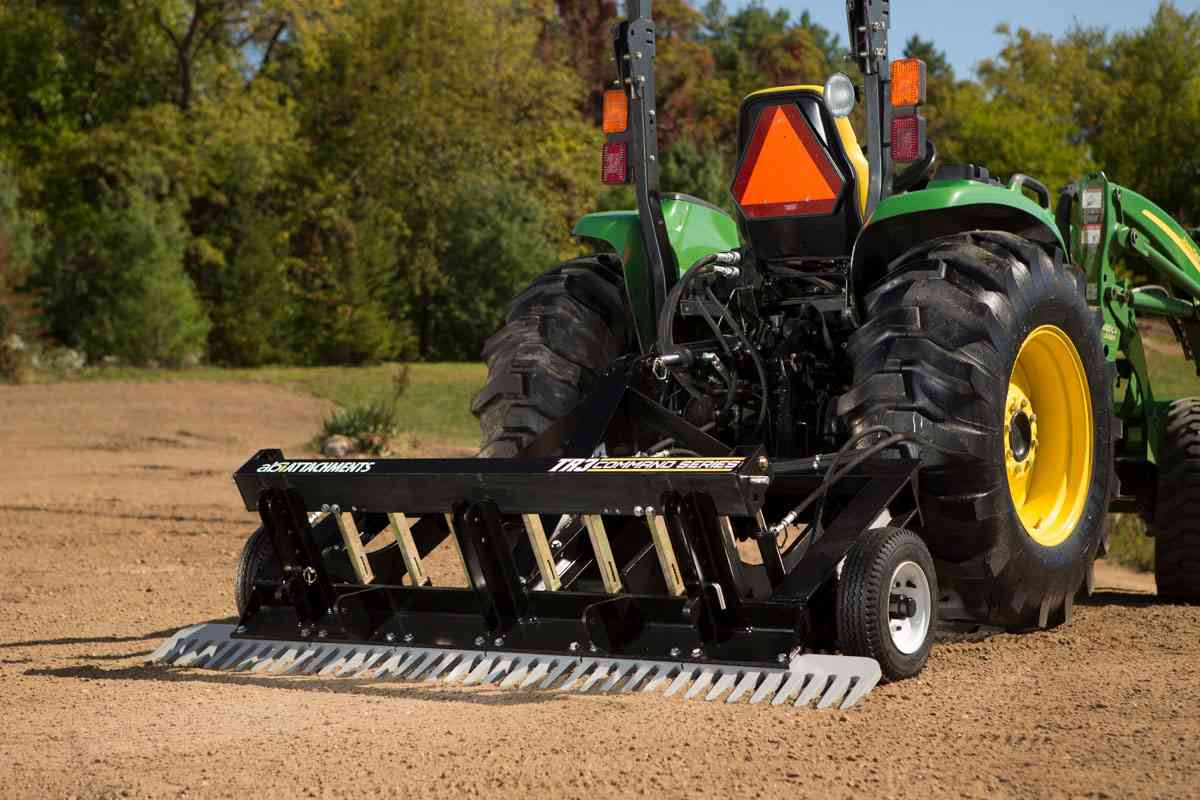

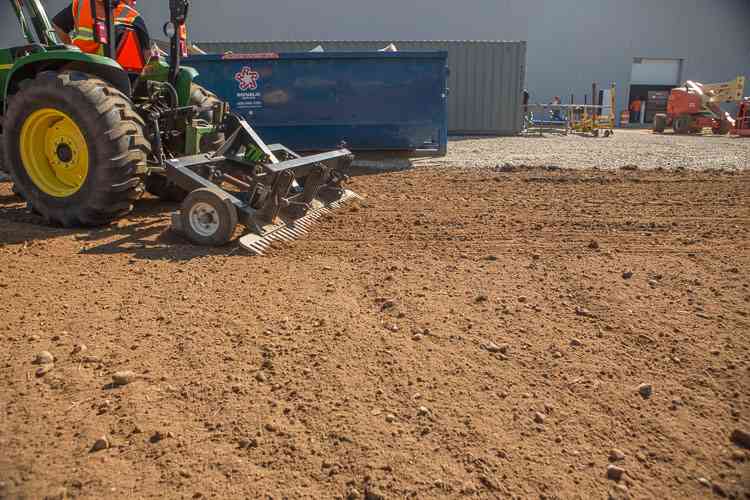

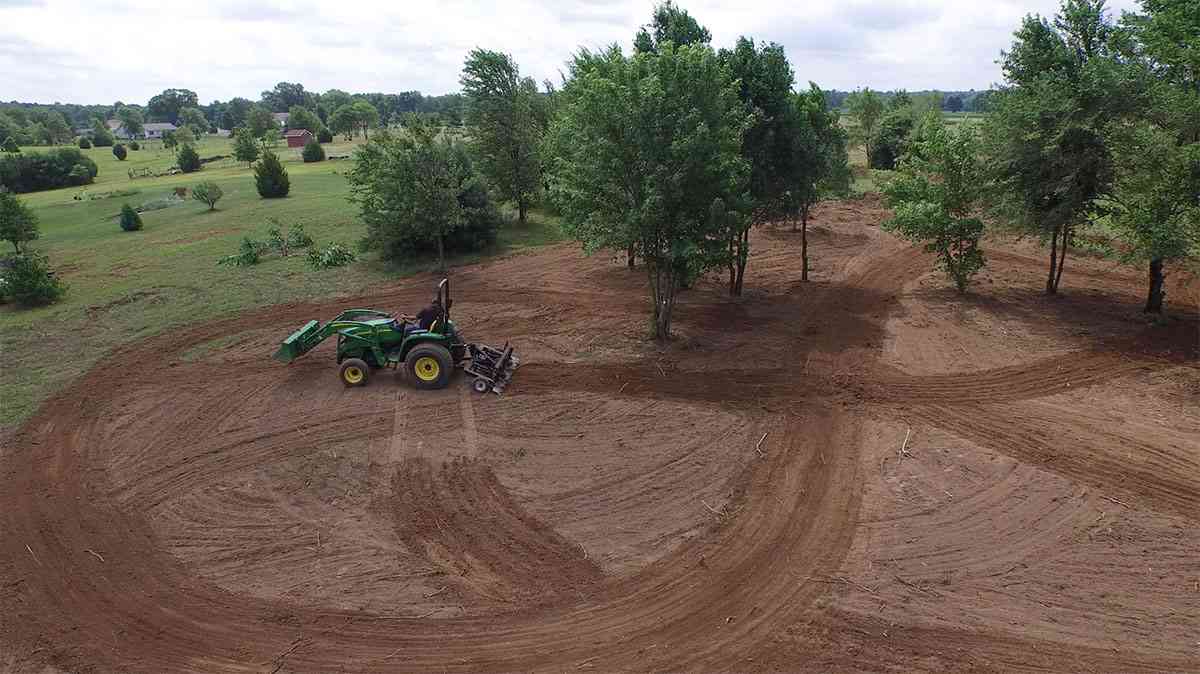

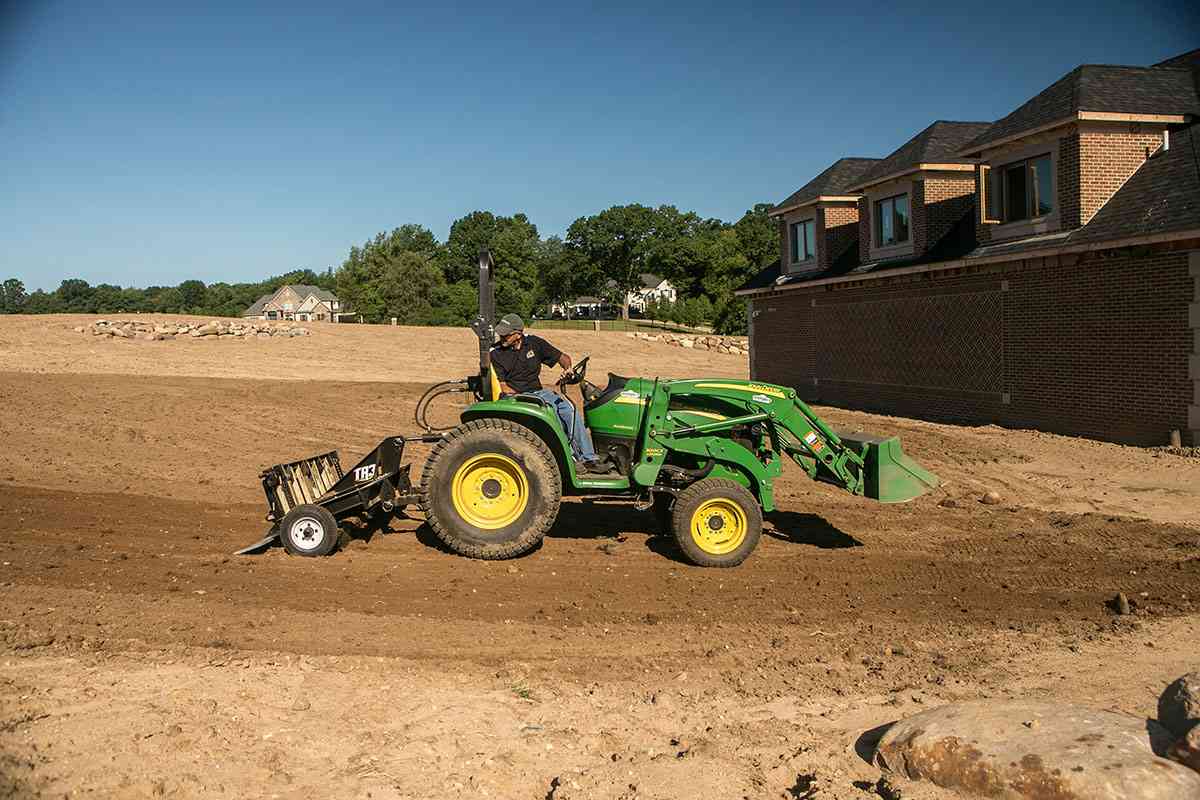

The Command Series TR3® Rake is a commercial-grade seedbed preparation attachment for Cat 1 3-point tractors. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination. Unlike a power rake, the TR3® Rake has no rotary components, it can take abuse like no other soil prep attachment can. The TR3® Rake is vastly more efficient and effective than a power box rake as it can be operated at a much higher speed and is capable of eliminating compaction, leveling, raking, and finishing the ground simultaneously on every pass. The TR3® Rake has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 3″ (Standard), adjustable to 5″. 7.5′ wide.
U.S. Patents
Ground-Engaging Components
H.P. Rating
Limited Warranty

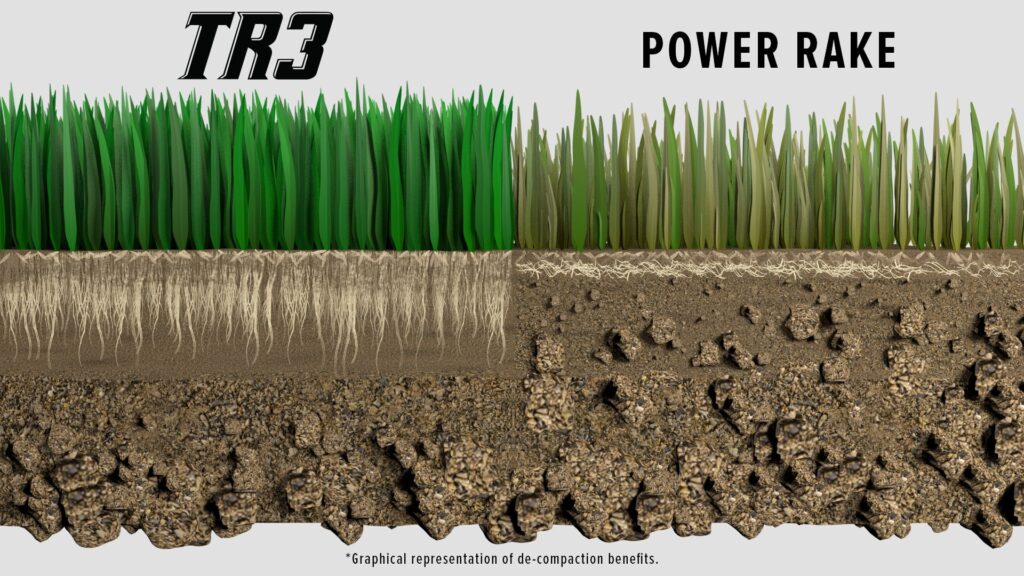

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.

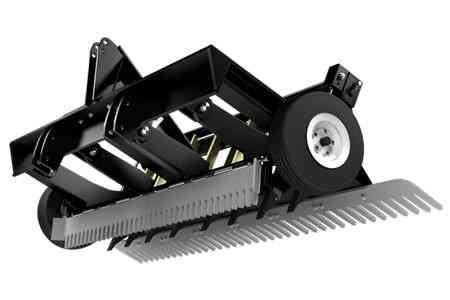

The TR3® combines the best features of a tractor attached Box Blade, Landscape Rake, Pulverizer, Land Planner, & Scarifier all into one innovative design. This eliminates the need to switch out implements and delivers vastly superior results, significantly faster than ever before. In comparison to a power rake, the TR3®’s features provide significantly more soil compaction relief, speed of operation, and grading capability without downtime due to extensive maintenance.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
| TR3 Grading Rake | |
|---|---|
| Vehicle Type | 3-Point Tractor |
| Min. Horse Power | 35 |
| Unit Weight | 1,100 lbs. |
| Raking Width | 89" |
| Grading Width | 66" |
| Scarifying Width | 59" |
| # of Scarifiers | 8 |

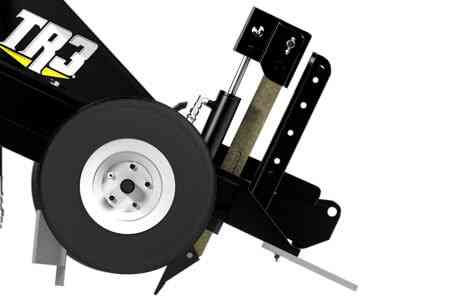

| Hydraulic Scarifiers | Yes |
| Scarifier Spacing | 6.5-9" |
| Scarifying Depth | 0-3" Adjustable to 5" |
| Scarifying Tip | Yes - Replaceable (Bolt-On) |
| Hydraulic Ports Needed | 1 Set |

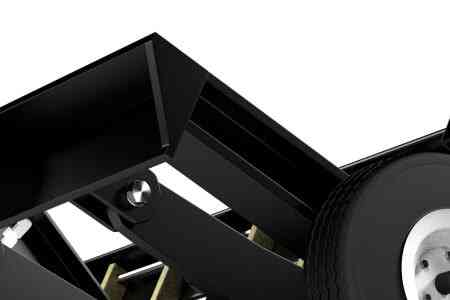

| Construction | I-Beam & Angle Iron |

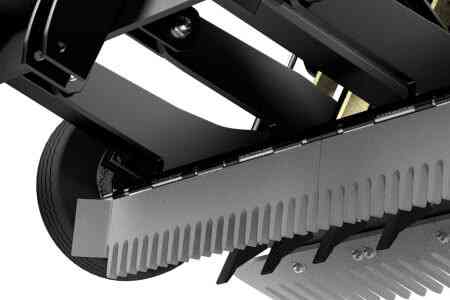

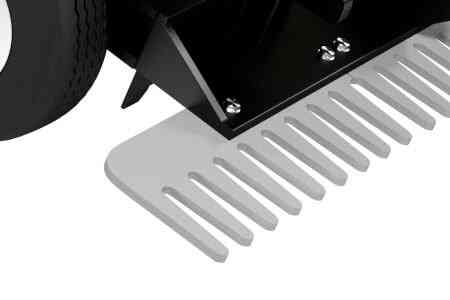

| Rake Material | 3/4" AR Steel - Laser Cut - (Replaceable in sections) |
| Wheels | 12" Foam Filled |
| 3-Point Tractor Mount | CAT I |
| Skid Steer Mount | No |
| Unit Dimensions | 96"W x 50"D x 39"T |
| Warranty | 60-month |
| We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 36-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details. | |
Attributes | |
| Tow Vehicle | Tractor, Compact Tractor, Utility Tractor |
| Product Type | Landscape Rakes |
| Connection | CAT I 3-Point |
| Size | 7.5Ft (90In) Width |
| Other Attributes | Hydraulics Required, NO PTO Needed |
| Market | Landscape Contractors, Property Owners |
