Gravel Driveway & Road Grader - Smooth Driving Surface

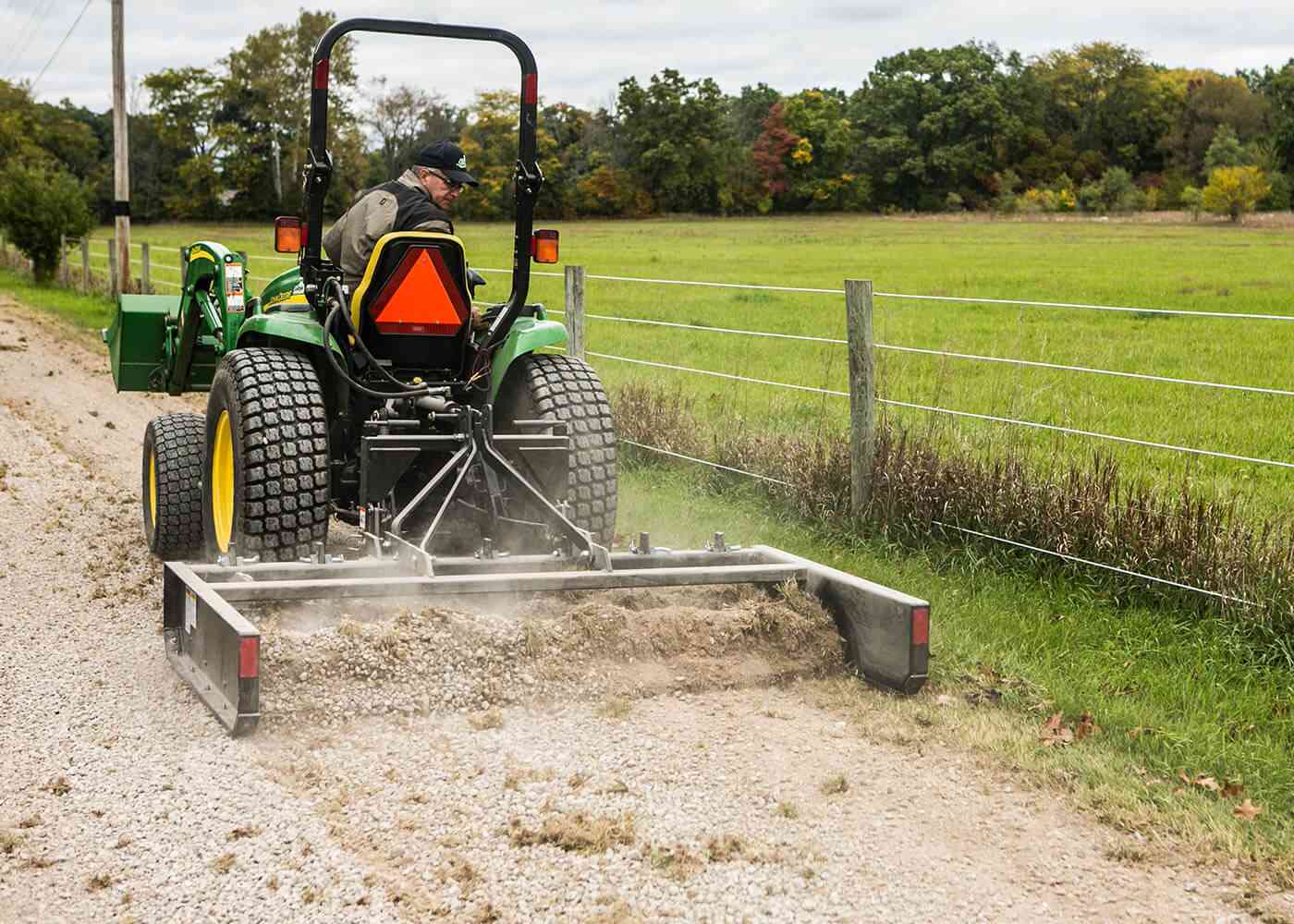

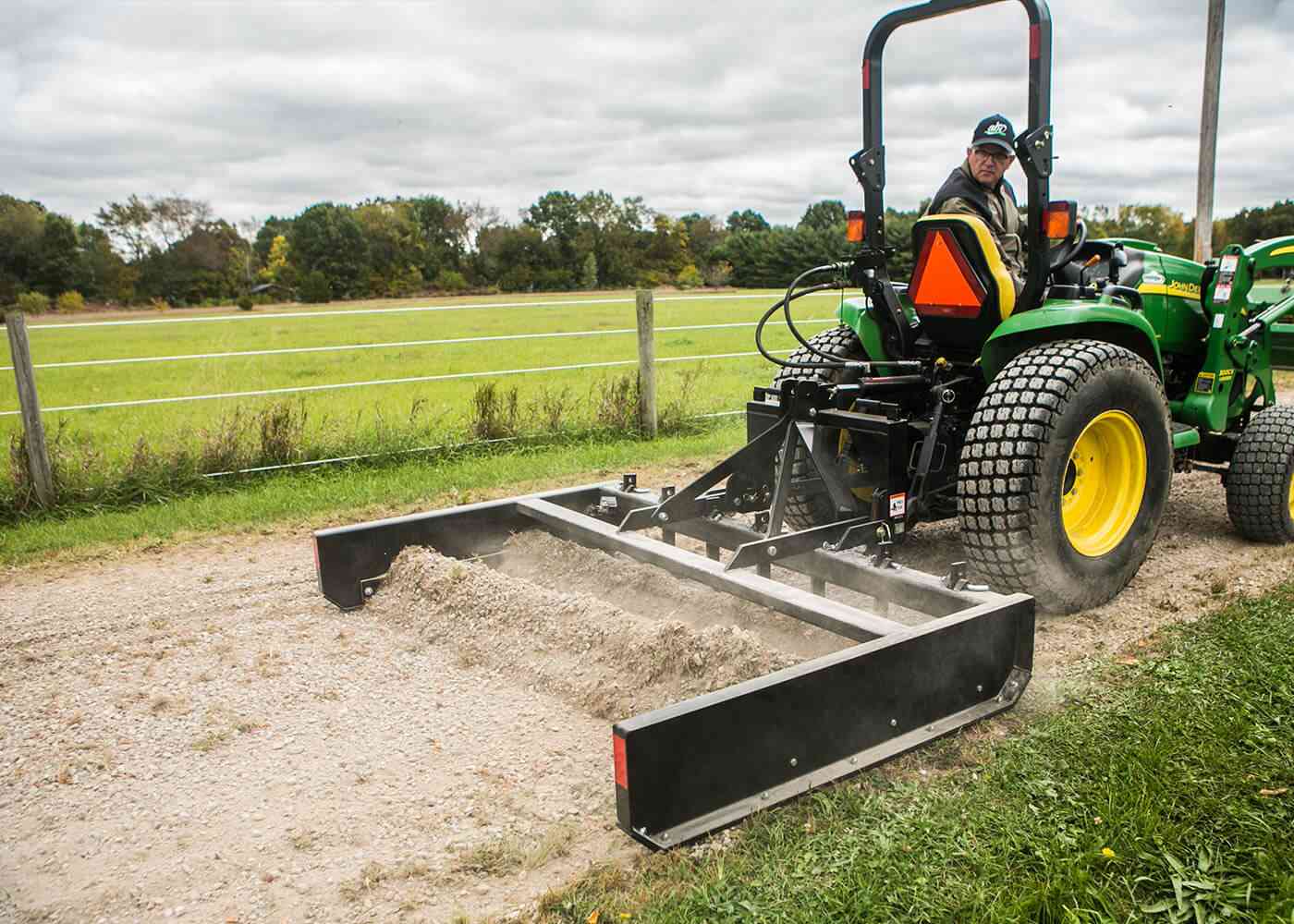

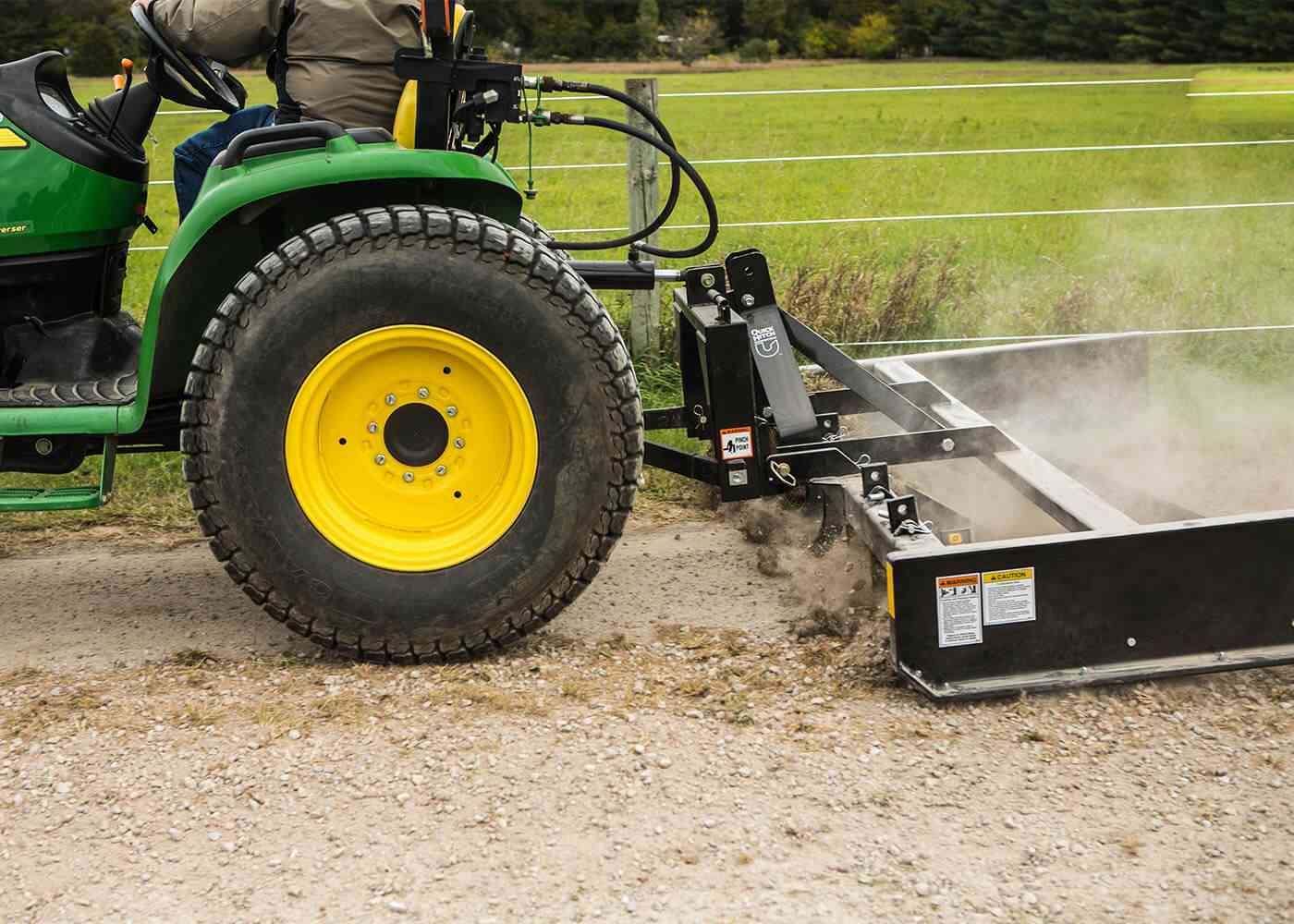

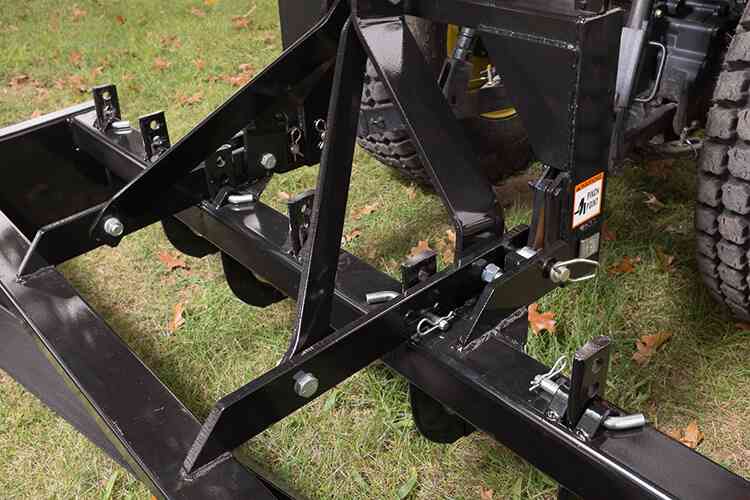

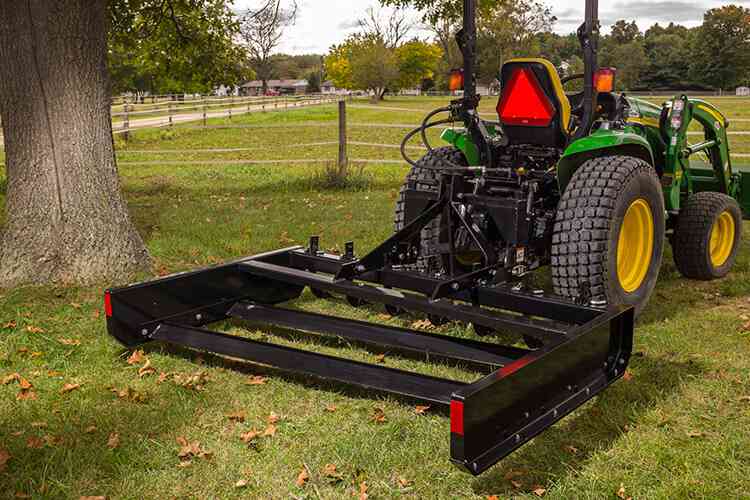

The Land Plane takes command of your dirt and gravel roadway maintenance. This attachment creates a smooth driving surface with no skill required. Built in five, six, and seven foot widths, the 3-point connection is category one ASAE quick-hitch compatible, and is designed for use with most any compact or utility tractor. The Land Plane’s rugged design is built for extreme-duty work and superb durability.

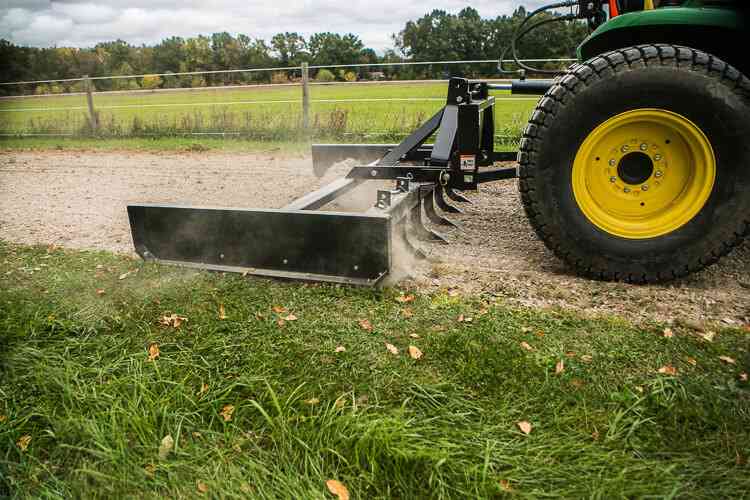

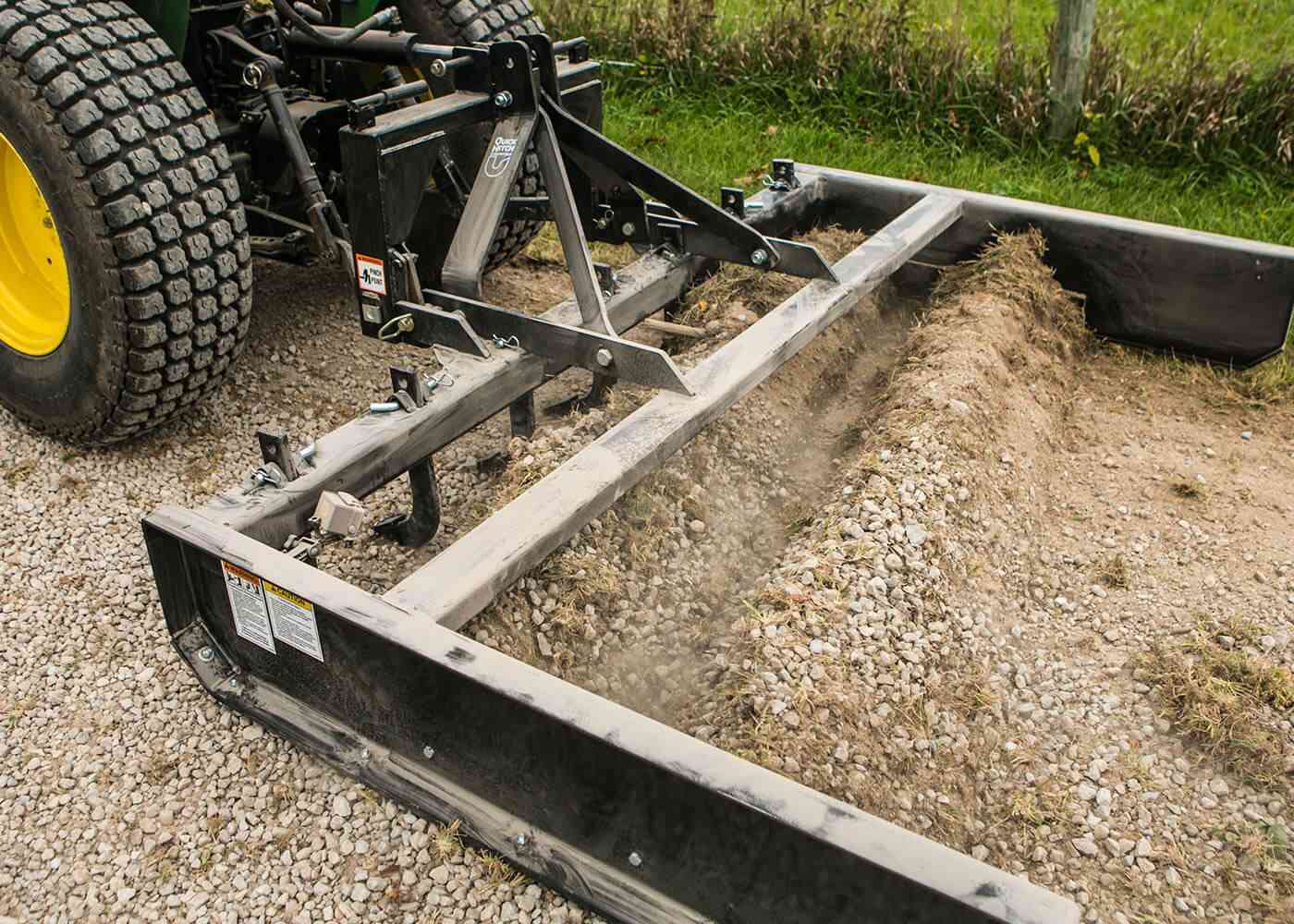

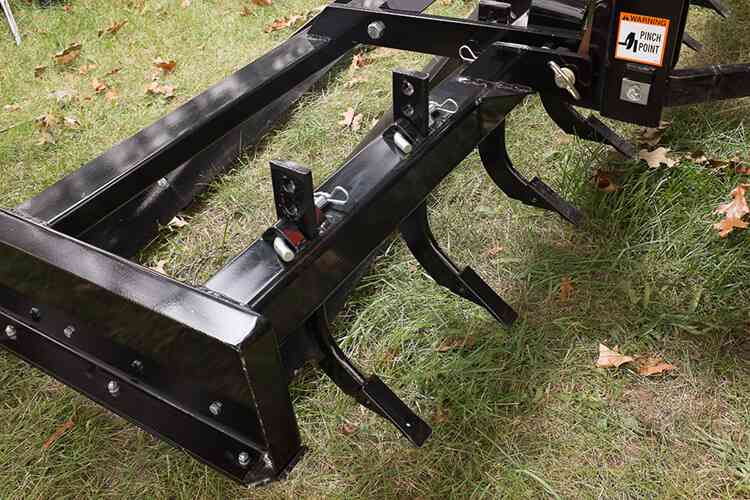

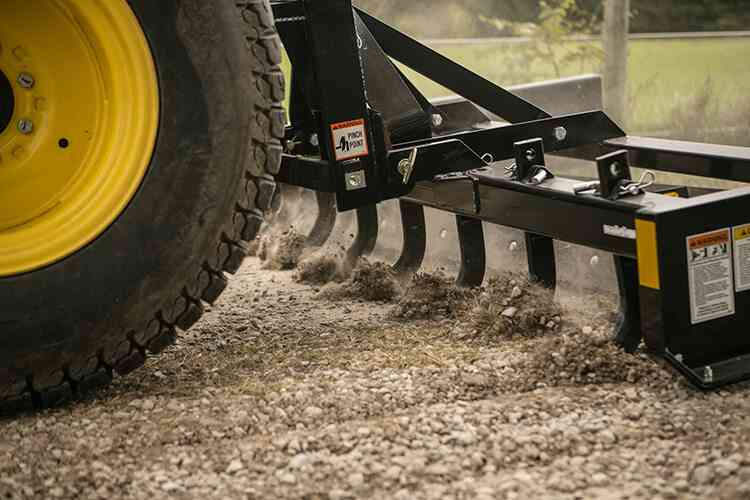

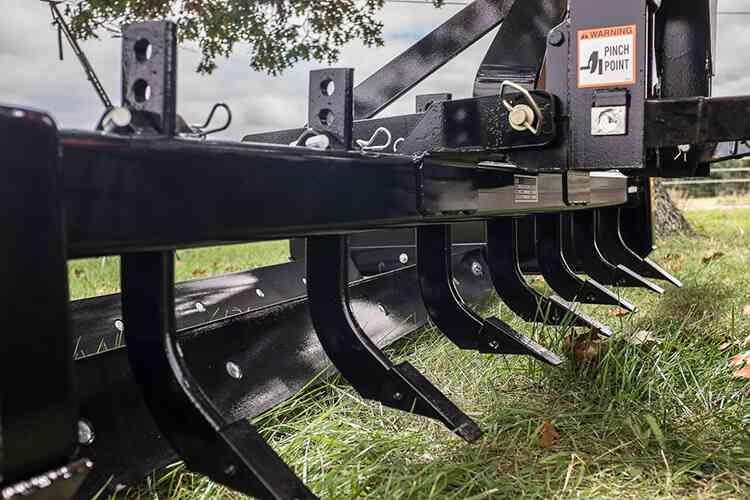

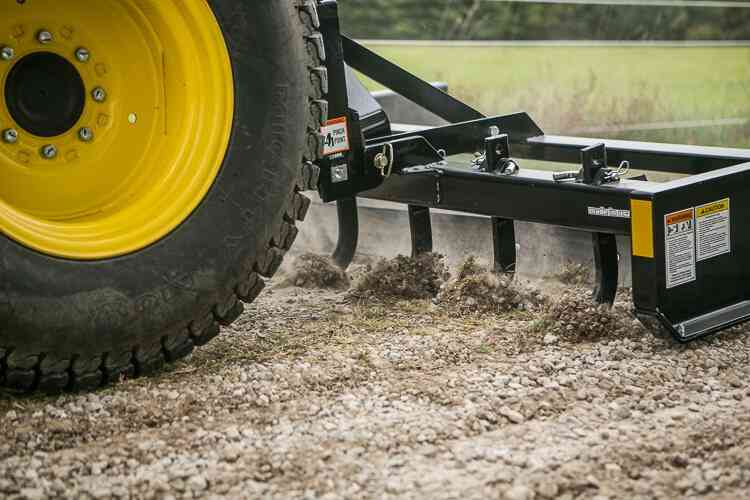

For extra-tough jobs, the included scarifiers mounted to a 4-inch tube-steel bar, helps provide the ultimate bite, and a welded frame ensures precise results and utmost longevity. Each scarifier can be raised or lowered and the pair of angled grading blades can be adjusted for grading depth, pitch, or blade wear.

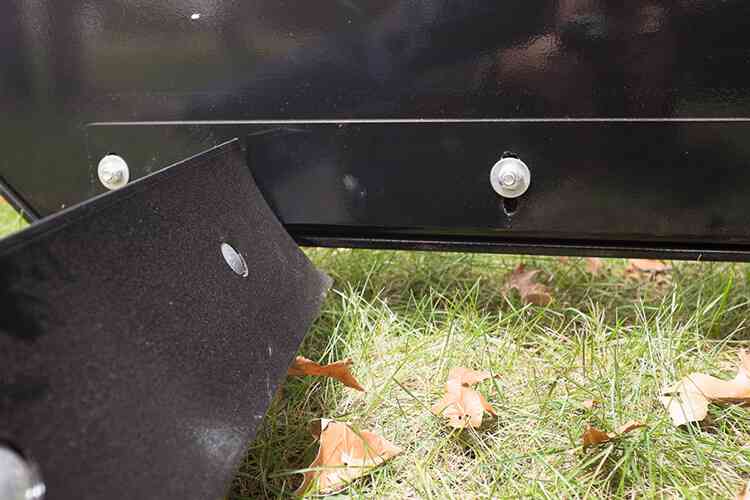

To ensure your Land Plane will keep working hard season after season, it features heavy-duty wear parts that are long-lasting and easy to replace. Its thick sidewalls are equipped with full-length replaceable skid shoes. Each scarifier features a replaceable hardened-steel tip and each tapered 1/2″ high-carbon heat-treated steel planing blade is easily reversed or replaced.

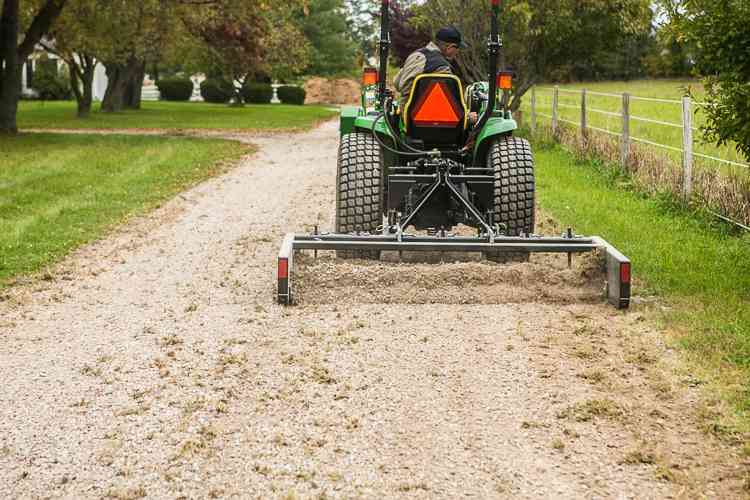

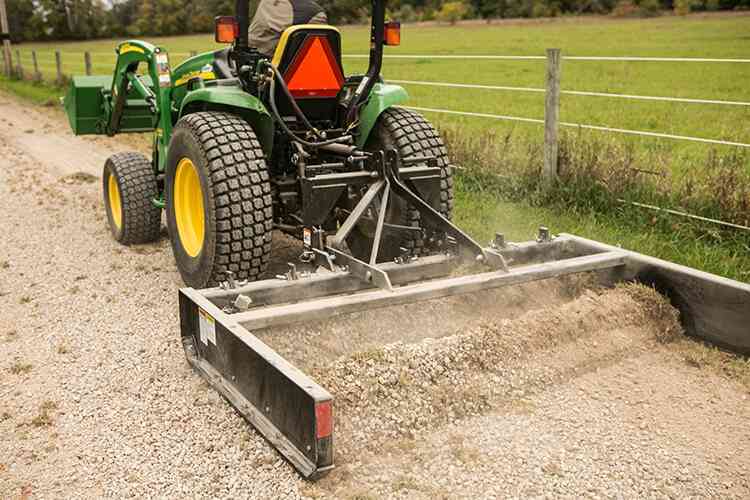

To maintain a crown, select the driveway grader that will only cover half of the width of your driveway, operate the grader up & down each side of the driveway and never drive down the center. Two lower arm mounting pins are included.
Related Products
Our Better Way:
Buy Direct from ABI
Ship Direct to You
Pay Over Time Financing
Customer Support
Trusted by the Pros
Features
Quick Hitch Compatible
Request A Quote
attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| Land Planes | AILP60 | AILP72 | AILP84 |
|---|---|---|---|
| Working Width | 5' (60") | 6' (72") | 7' (84") |
| Unit Weight | 595 lbs. | 705 lbs. | 765 lbs. |
| # of Scarifiers | 5 | 6 | 7 |
| Min. HP | 25 | 27 | 32 |
| Max HP | 65 | 65 | 65 |
| Blade Height Adjustment | 0 - 1.5" | 0 - 1.5" | 0 - 1.5" |
| Blade Angle | 10° | 10° | 10° |
| Cutting Blades | .5" Thick x 6" Tall | .5" Thick x 6" Tall | .5" Thick x 6" Tall |
| Hitch Type | 3-Point, CAT 1 | 3-Point, CAT 1 | 3-Point, CAT 1 |
| Side Rail Height | 12.5" | 12.5" | 12.5" |
| Side Rail Length | 44" | 44" | 56" |
| Skid Shoes | Replaceable | Replaceable | Replaceable |
| Unit Length | 50" | 50" | 62" |
| Unit Width | 64" | 76" | 89" |
| Unit Height | 34" | 34" | 34" |
| Ship Length | 78" | 81" | 90" |
| Ship Width | 48" | 51" | 64" |
| Ship Height | 30" | 30" | 30" |
| Warranty | 2 Year Limited | 2 Year Limited | 2 Year Limited |
Attributes | |||
| Power Range | 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor | 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor | 23 – 38 h.p. Tractor, 35 – 60 h.p. Tractor |
| Tow Vehicle | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor | Tractor, Sub-Compact Tractor, Compact Tractor, Utility Tractor |
| Product Type | Driveway Graders | Driveway Graders | Driveway Graders |
| Connection | Ltd. CAT I 3-Point, CAT I 3-Point | Ltd. CAT I 3-Point, CAT I 3-Point | Ltd. CAT I 3-Point, CAT I 3-Point |
| Size | 5Ft (60In) Width, 6Ft (72In) Width, 7Ft (84In) Width | 5Ft (60In) Width, 6Ft (72In) Width, 7Ft (84In) Width | 5Ft (60In) Width, 6Ft (72In) Width, 7Ft (84In) Width |
| Other Attributes | Hydraulics Optional, NO Hydraulics Needed, NO PTO Needed | Hydraulics Optional, NO Hydraulics Needed, NO PTO Needed | Hydraulics Optional, NO Hydraulics Needed, NO PTO Needed |
| Market | Property Owners | Property Owners | Property Owners |
