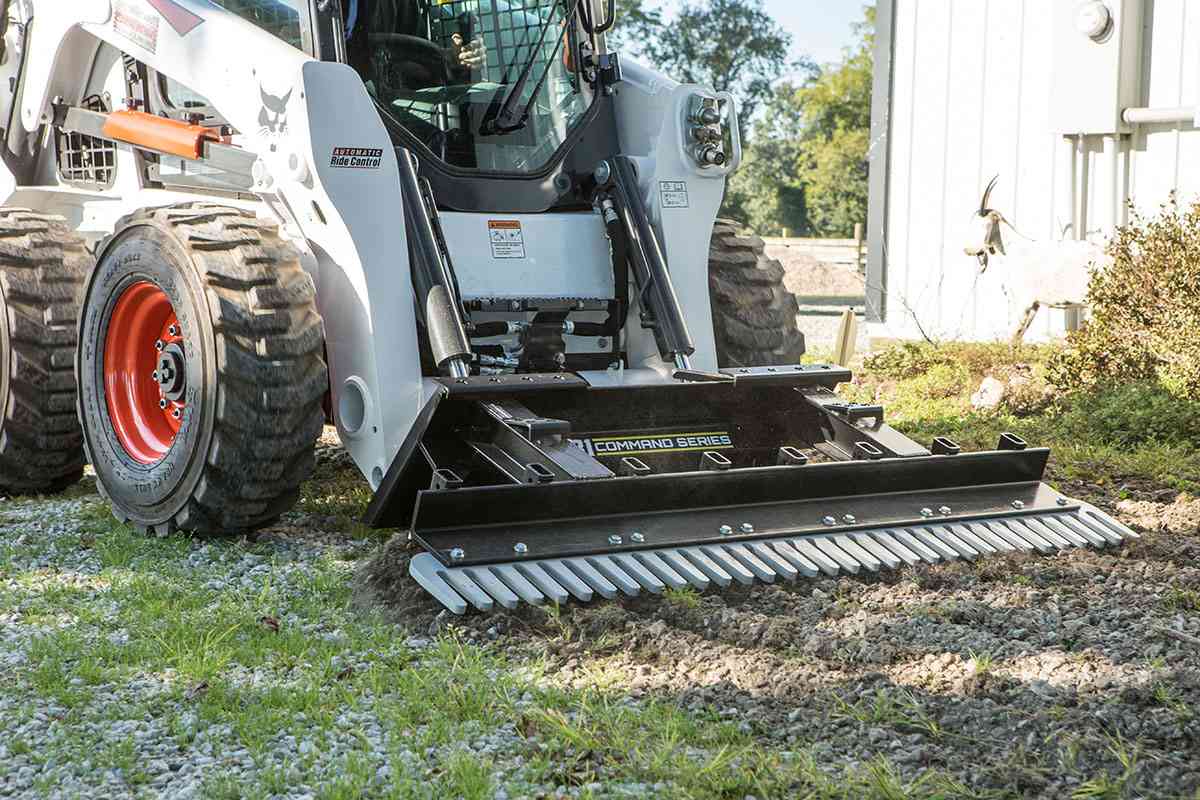

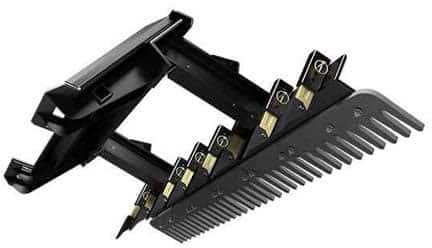

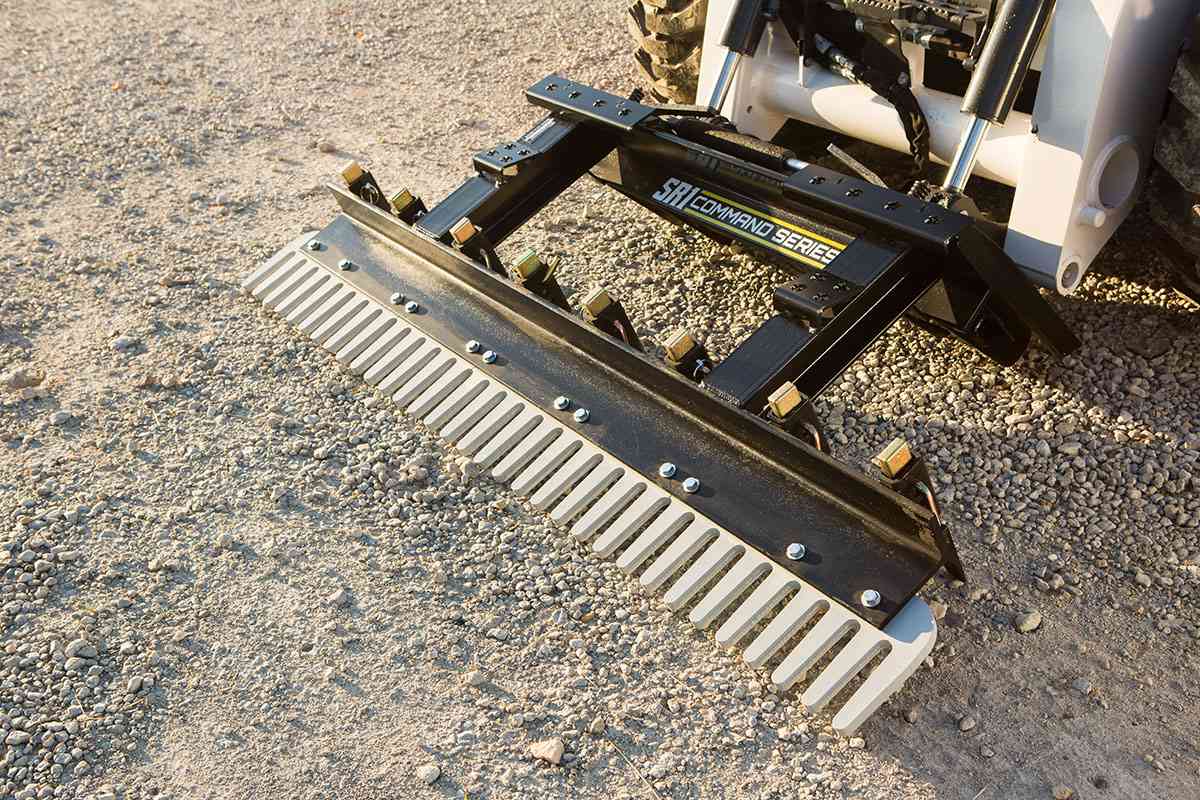

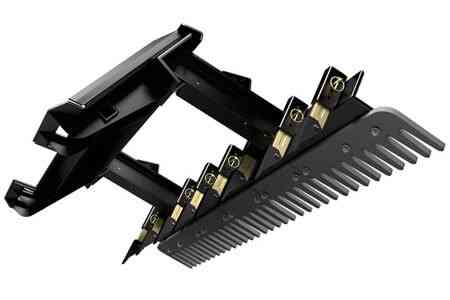

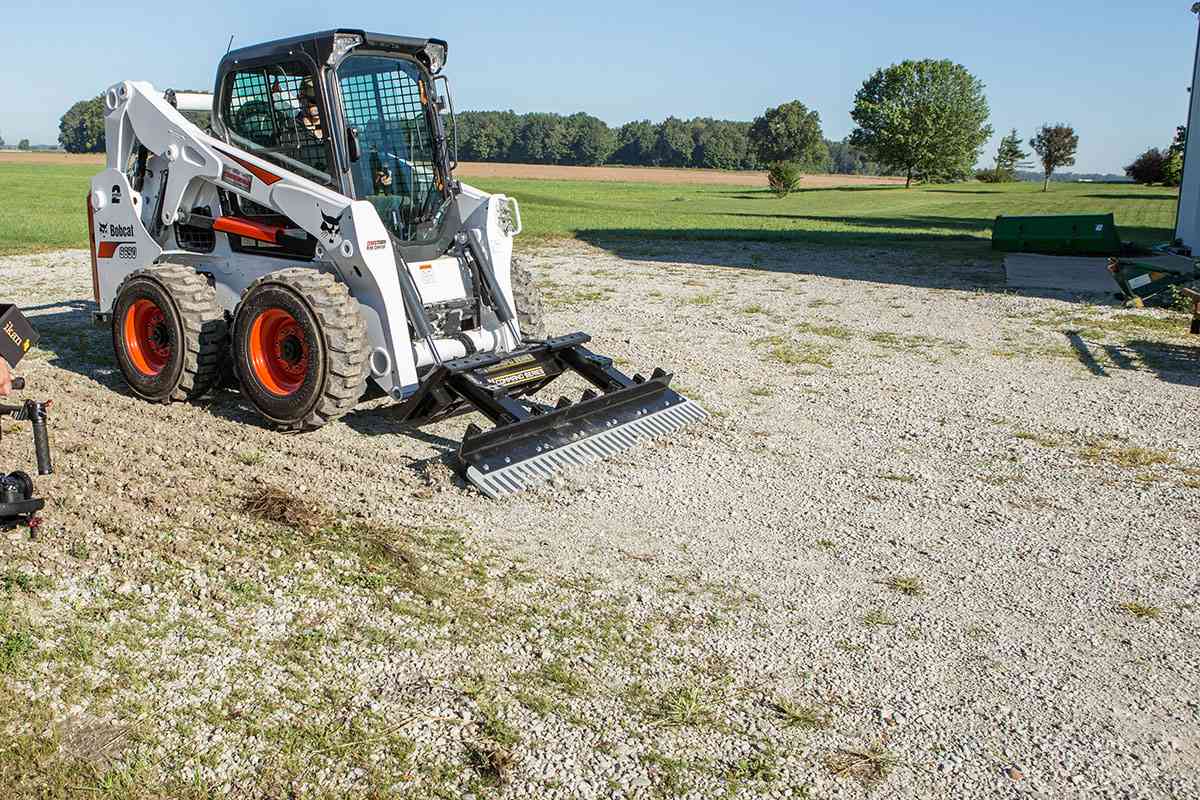

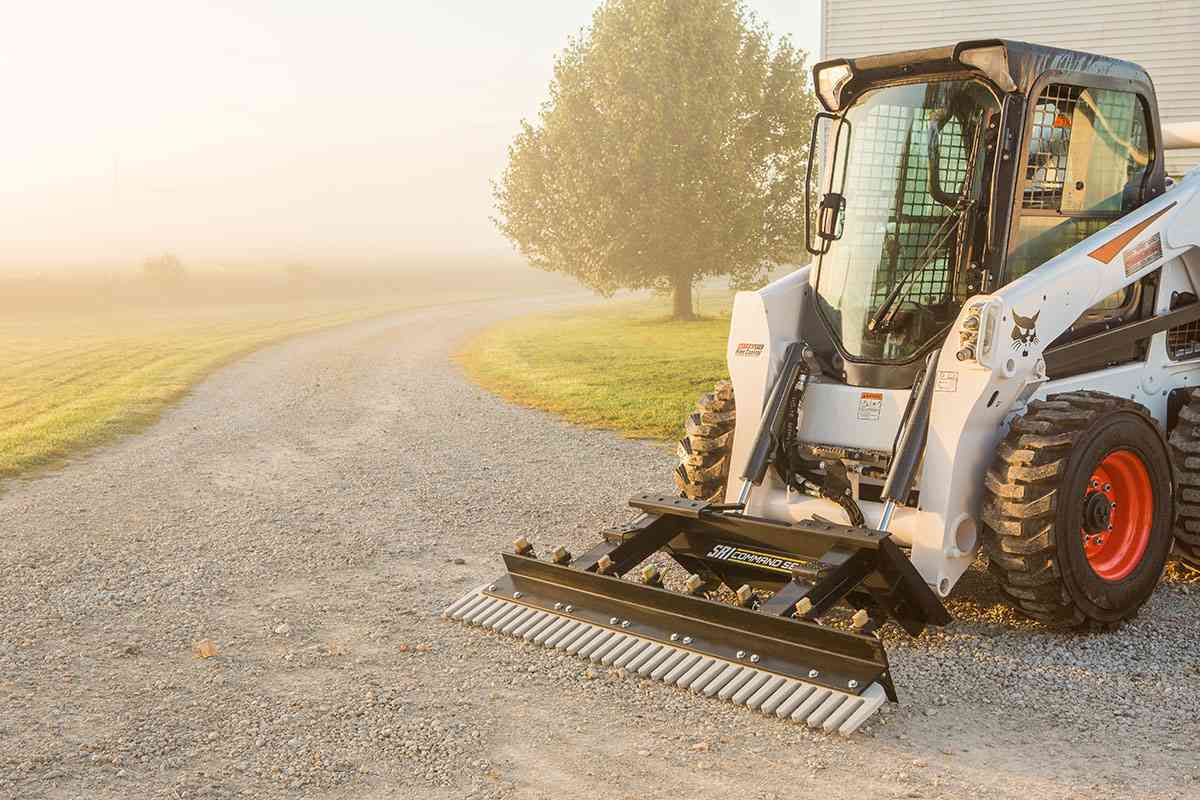

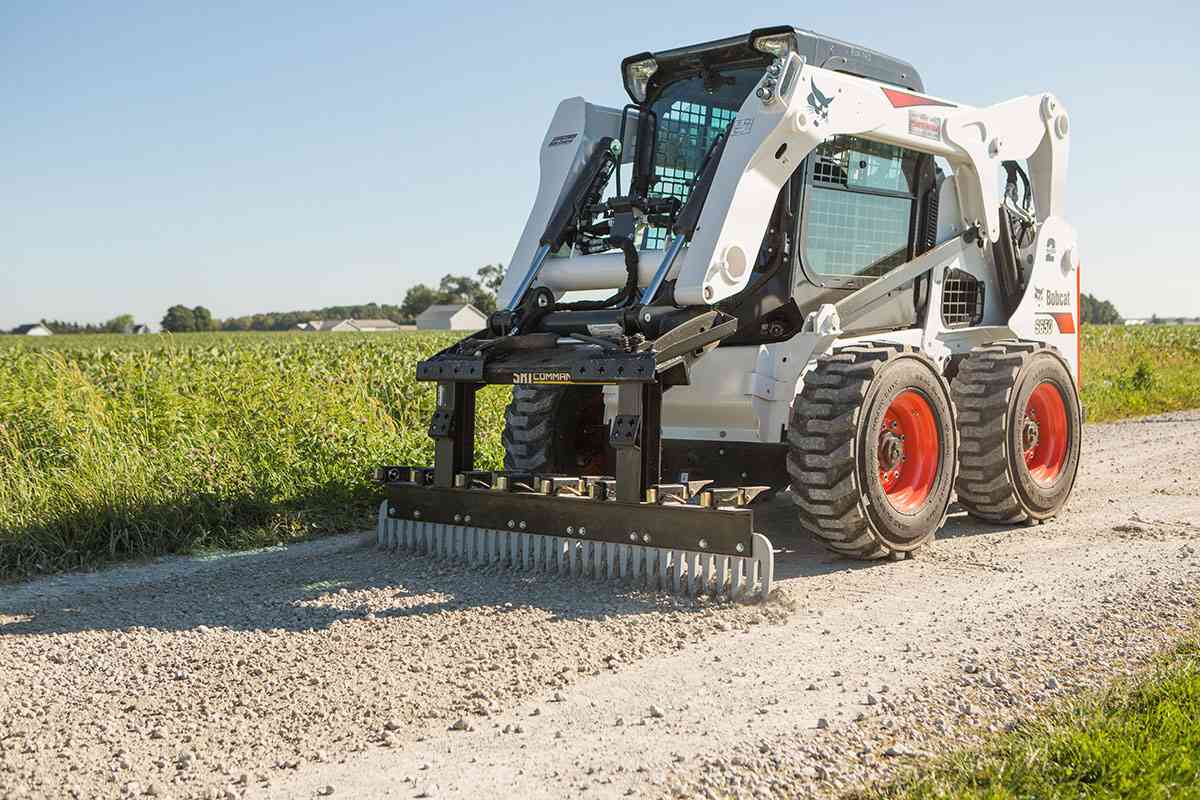

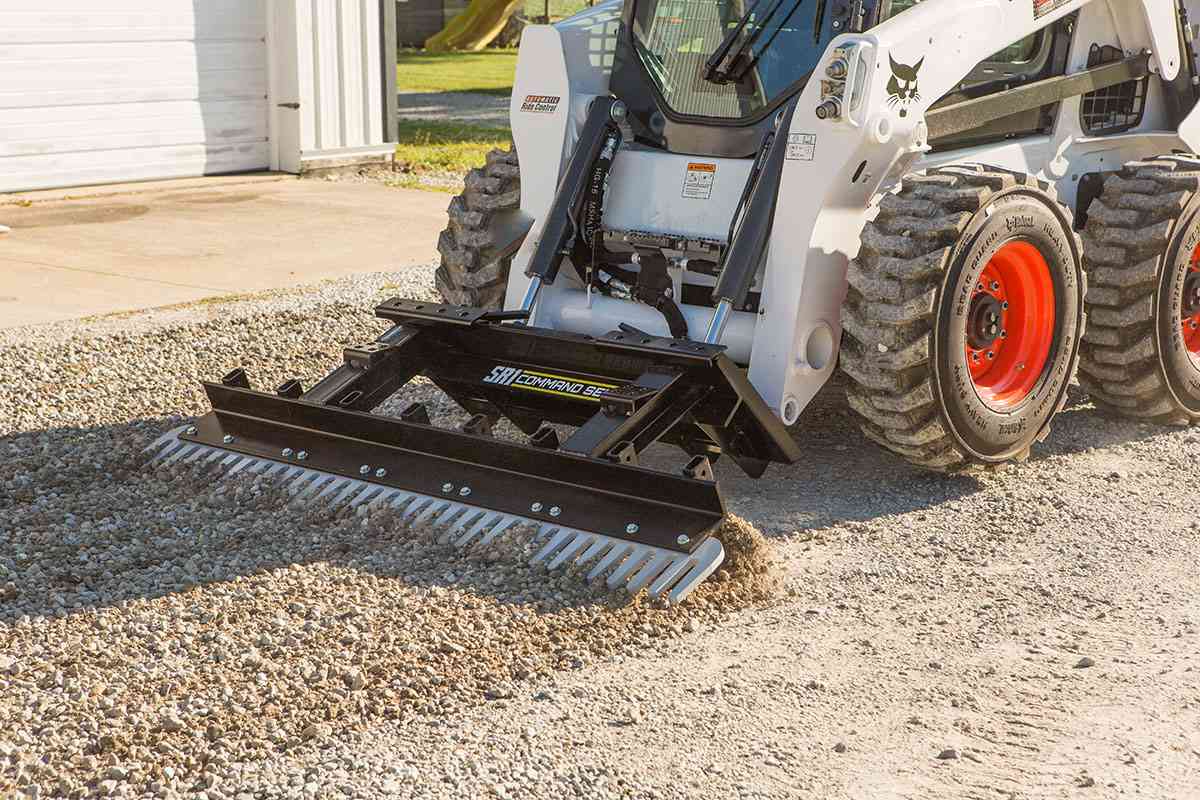

The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before.

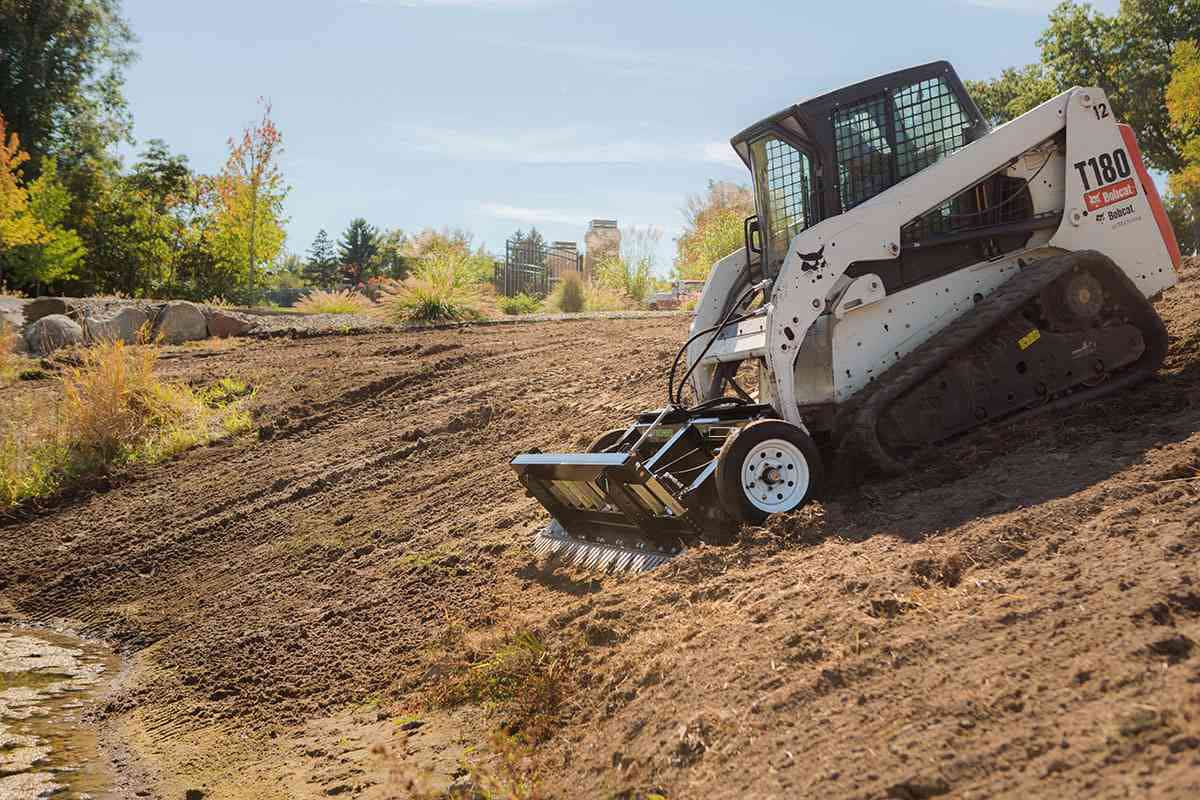

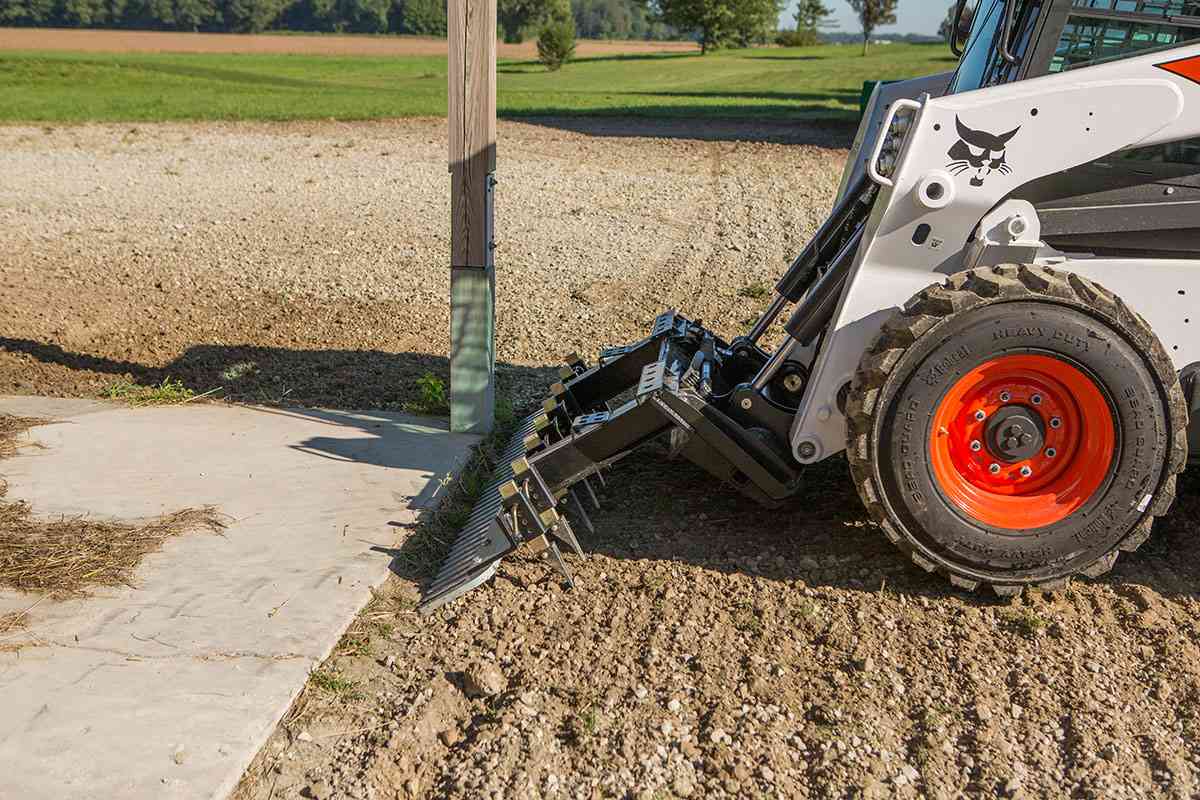

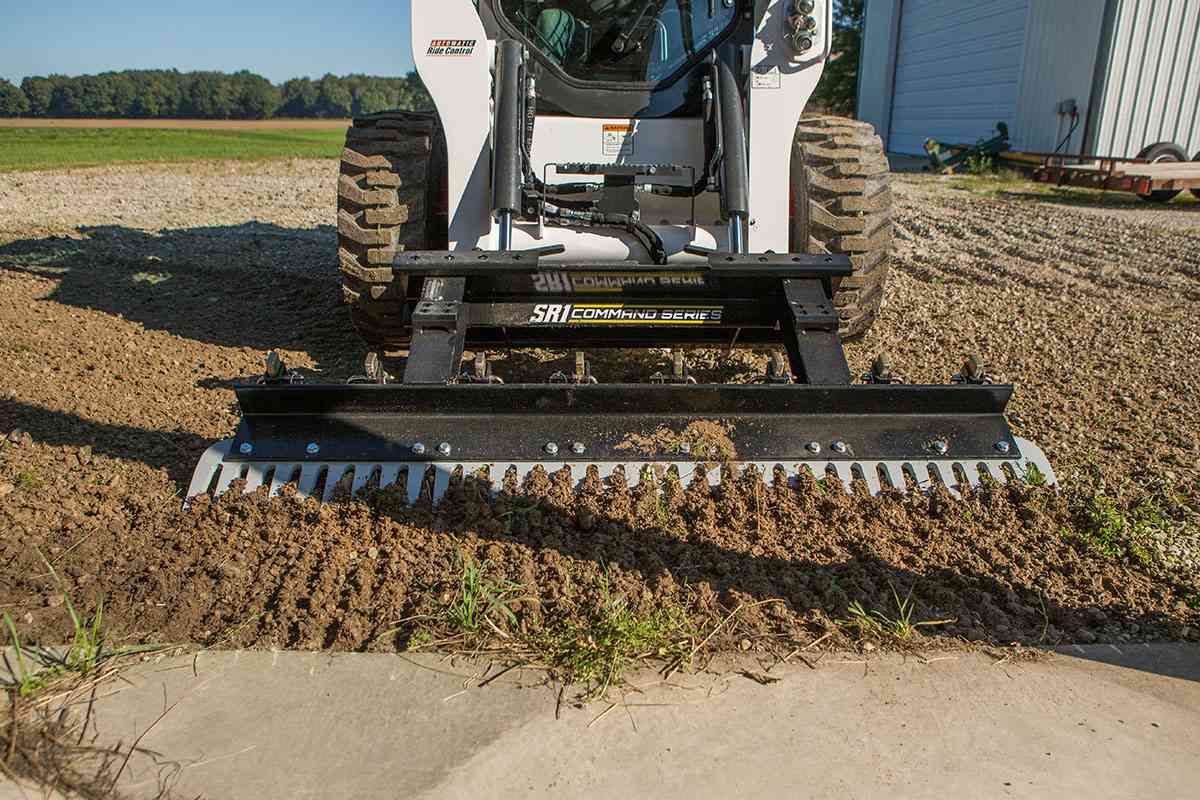

Backbreaking manual work along landscape and concrete edges is now a thing of the past. The SR1 is designed to work small areas and along edges and eliminate the back-breaking hand work. Command Your Land with the SR1 from ABI Attachments!
Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.

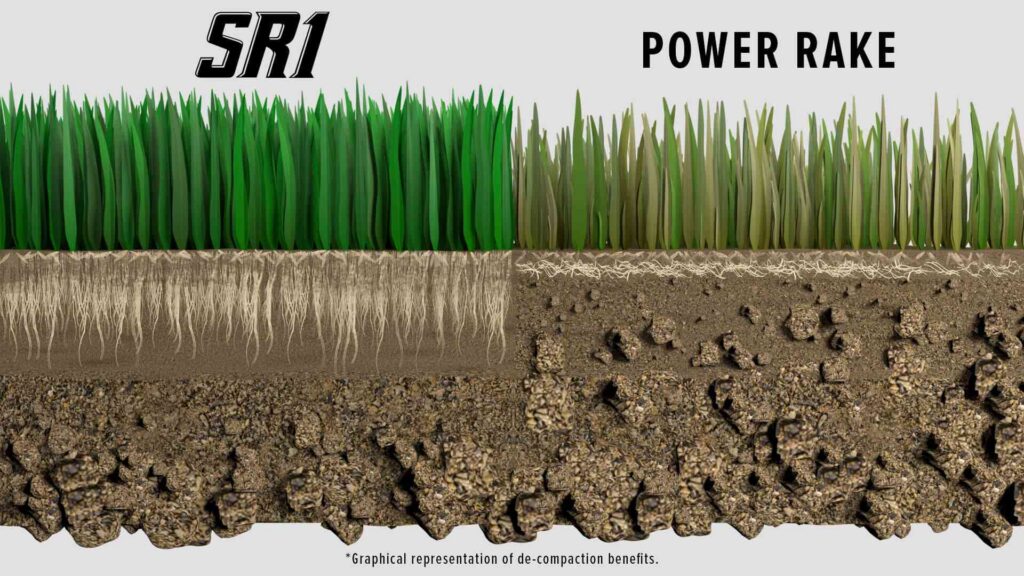

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.
Patent Pending
Ground-Engaging Components
H.P. Rating
Limited Warranty
Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.
The SR1 combines the best features of a skid steer attached Landscape Rake, Pulverizer, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. Backbreaking manual work along landscape and concrete edges is now a thing of the past.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)

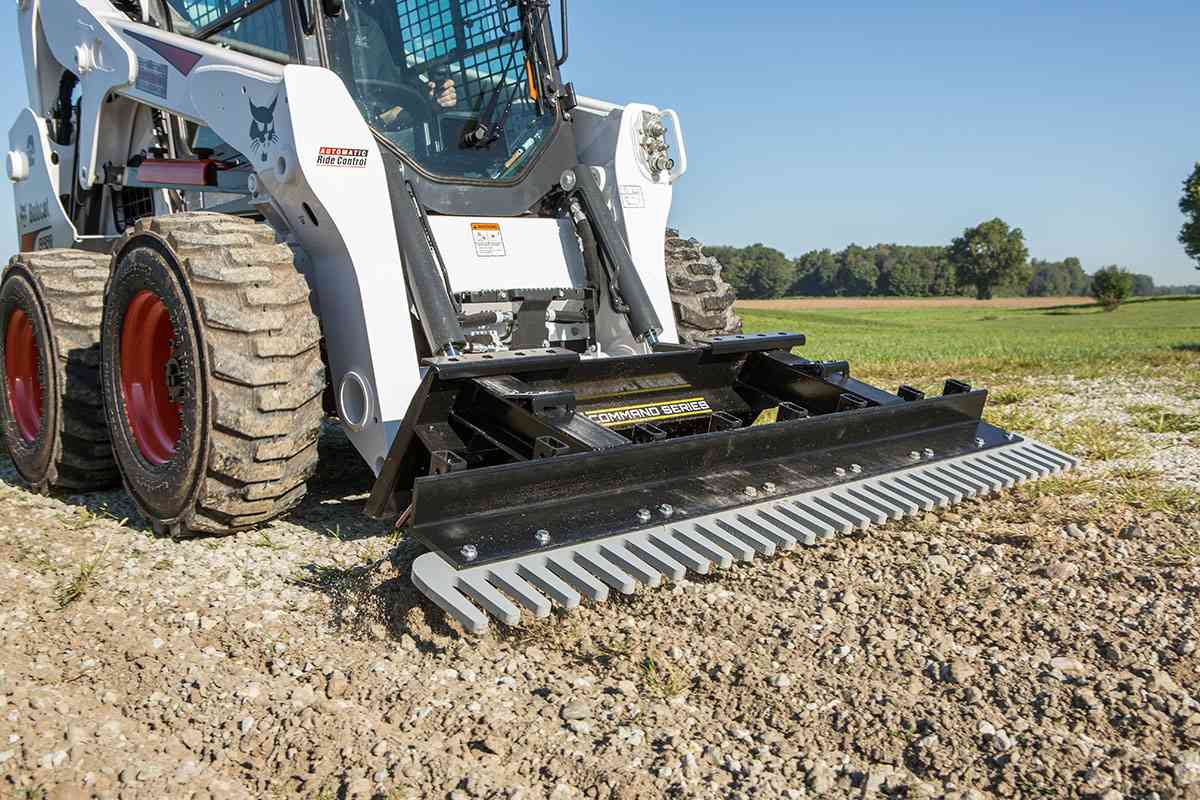

| SR1 Grading Rake | |
|---|---|
| Vehicle Type | Skid Steer |
| Min. Horse Power | 30 |
| Unit Weight | 460 lbs. |
| Max Operating Weight | 7,000 lbs. |
| Raking Width | 78" |
| Grading Width | - |

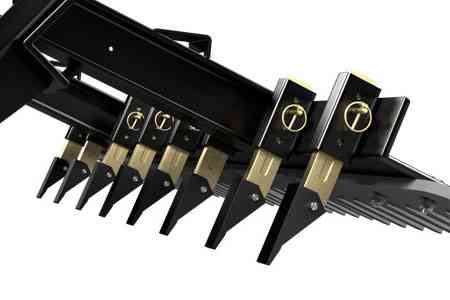

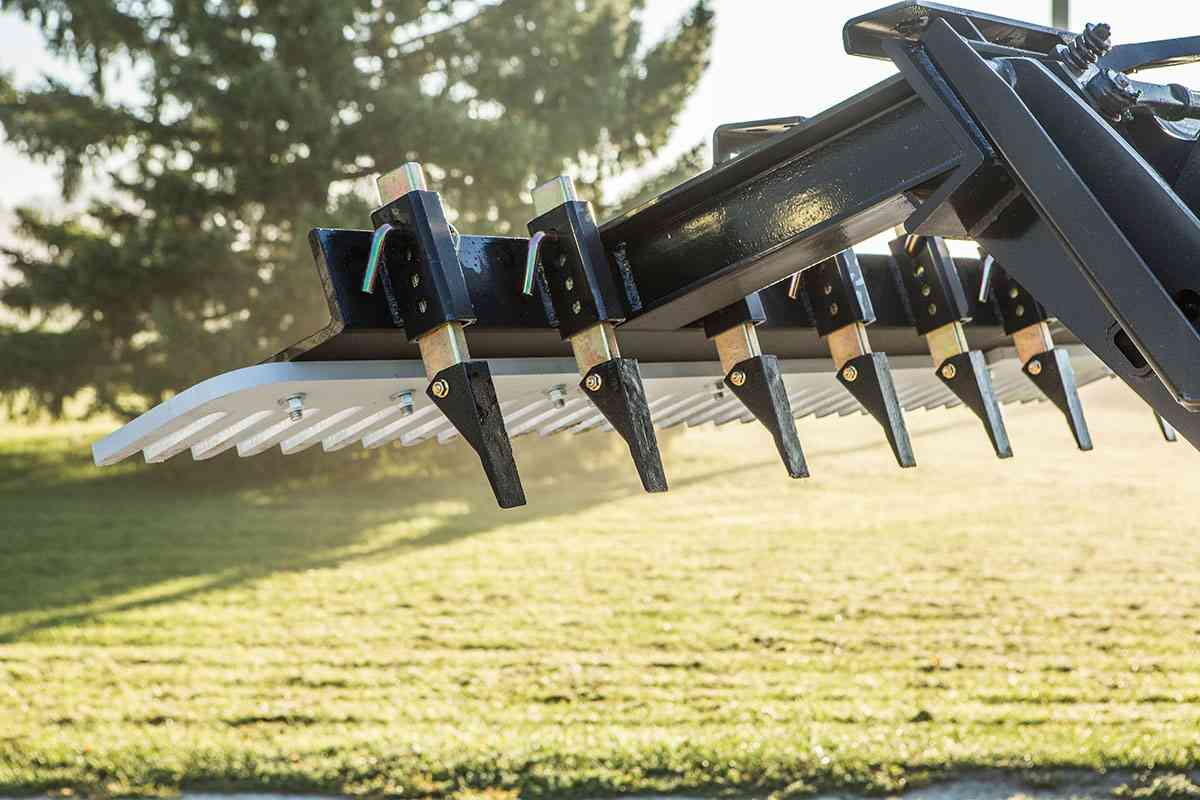

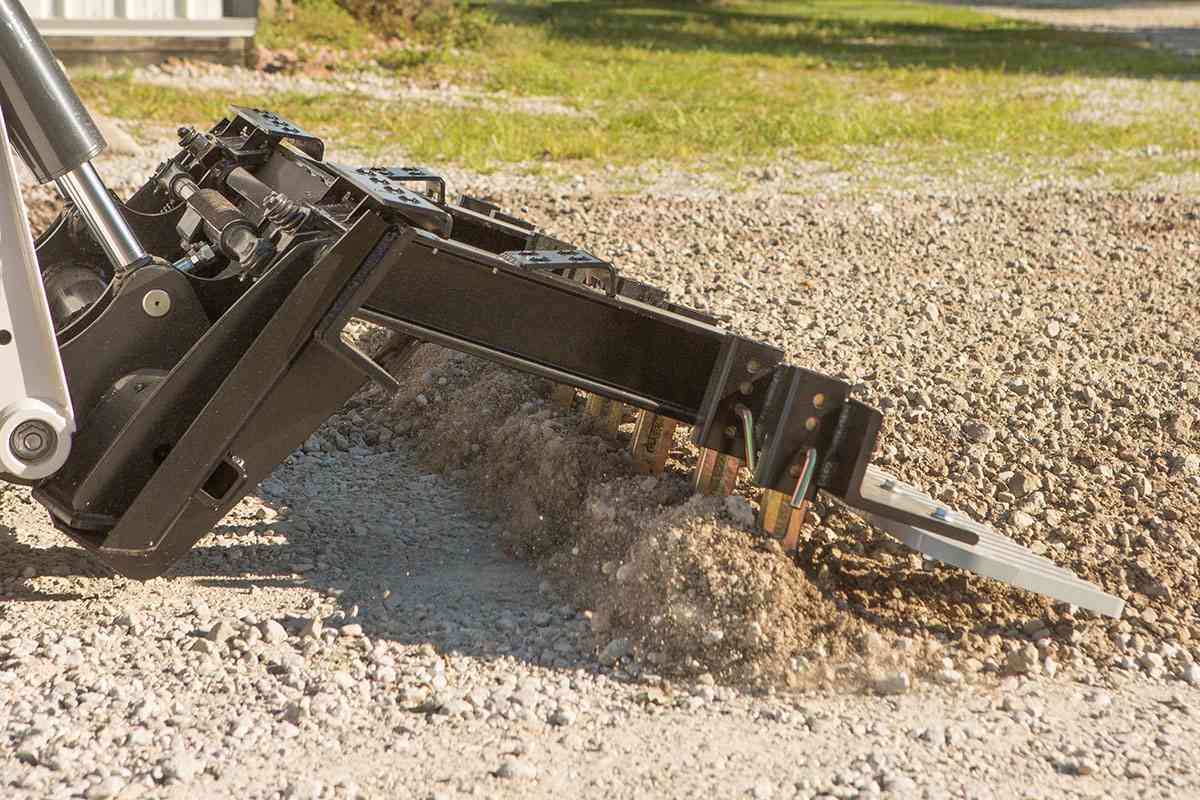

| Scarifying Width | 66" |
| # of Scarifiers | 8 |
| Hydraulic Scarifiers | - |
| Scarifier Spacing | 9-10" |
| Scarifying Depth | 0-5" |
| Scarifying Tip | Yes - Replaceable (Bolt-On) |
| Hydraulic Ports Needed | - |

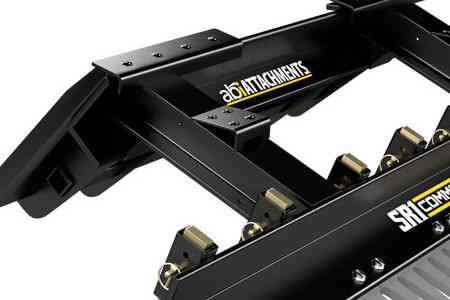

| Construction | I-Beam & Angle Iron |

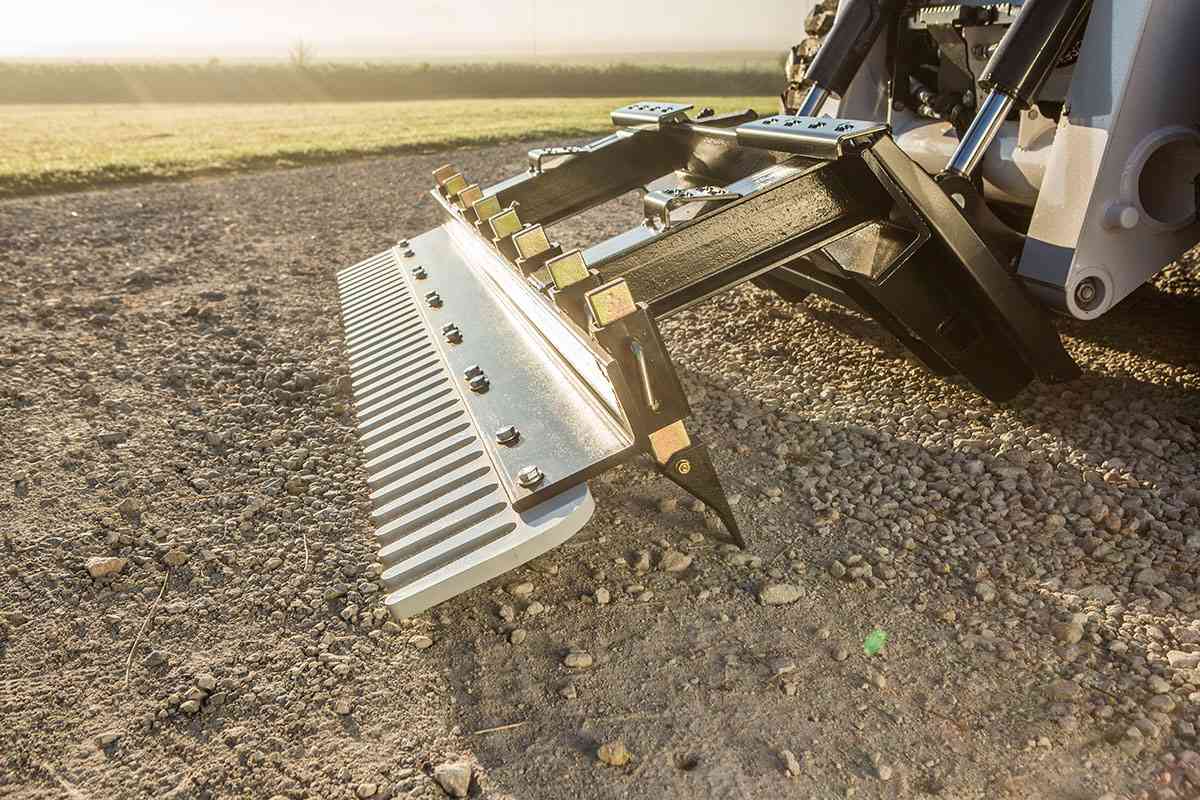

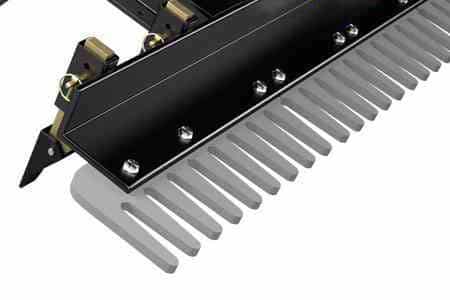

| Rake Material | 3/4" AR Steel - Laser Cut - (Replaceable in sections) |
| Wheels | - |
| 3-Point Tractor Mount | No |
| Skid Steer Mount | Universal |
| Unit Dimensions | 78" W x 39" D x 19" H |
| Warranty | 60-month Warranty |
| We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 60-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details. | |
Attributes | |
| SR1 Grading Rake | |
| Connection | Universal (Skid-Steer) |
| Tow Vehicle | Skid-Steer, Compact Track Loader |
| Power Range | 30 – 60 h.p. Skid Steer |
