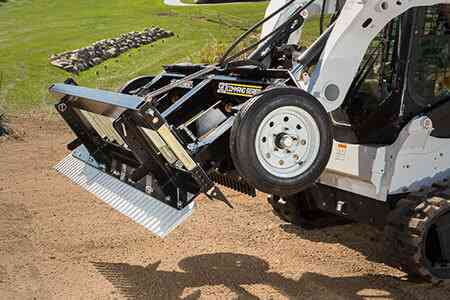

The SR3 is a commercial-grade seedbed preparation attachment for skid steer. This amazing landscape rake incorporates an auto leveling blade, hydraulic scarifiers and a finishing rake to properly prepare the perfect seedbed, free of compaction, for excellent seed-to-soil contact and accelerated germination.
Unlike a power rake, the SR3 has no rotary components so it can take abuse like no other soil prep attachment can. Possibly the greatest benefit of the SR3 is ease of use. With clear sight lines to the front edge of the tool the operator can have confidence even along concrete edges, irrigation heads, landscaping, and buildings. Even an inexperienced operator can quickly become an expert SR3 operator as it can be operated with the loader arms in “Float”.

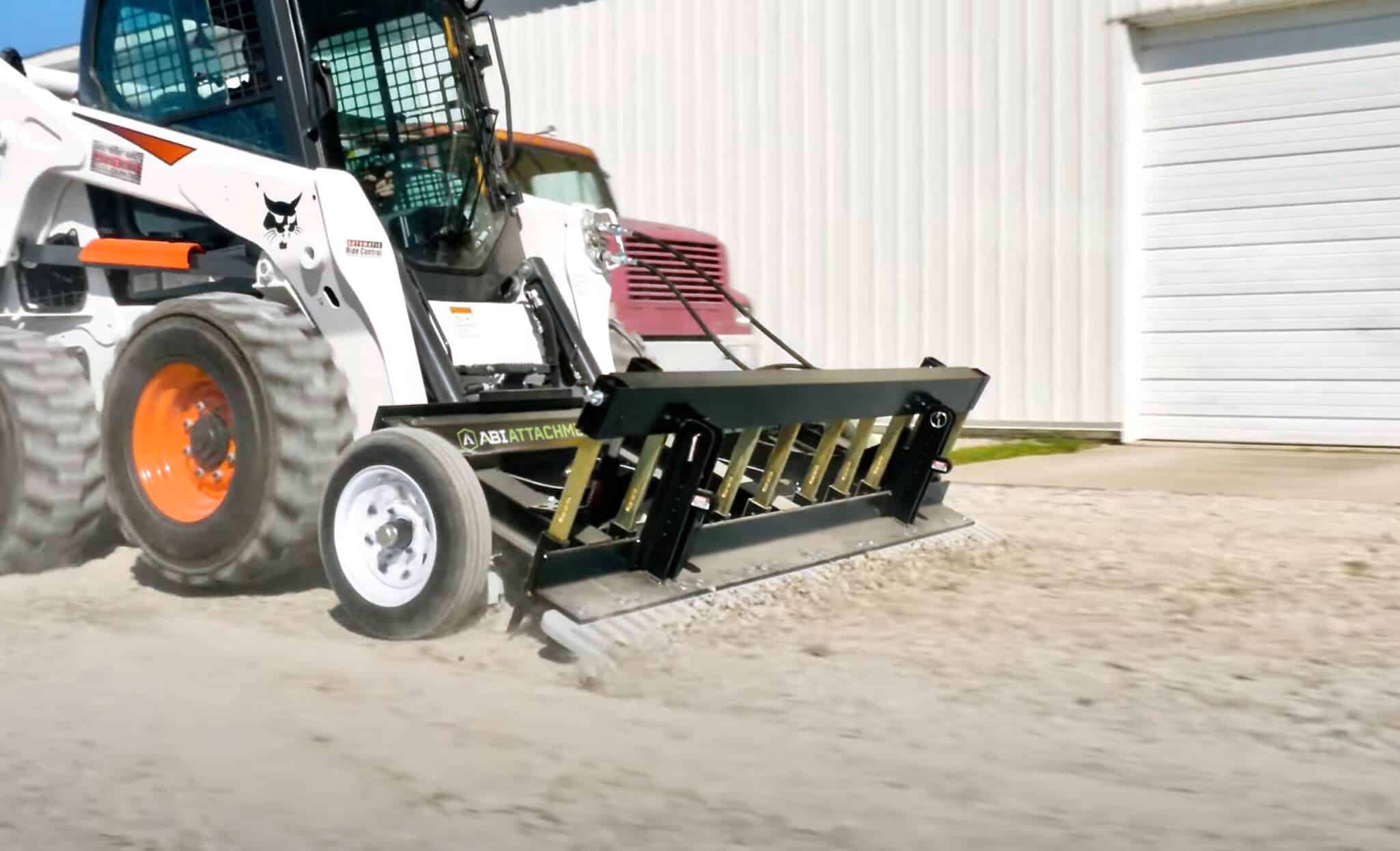

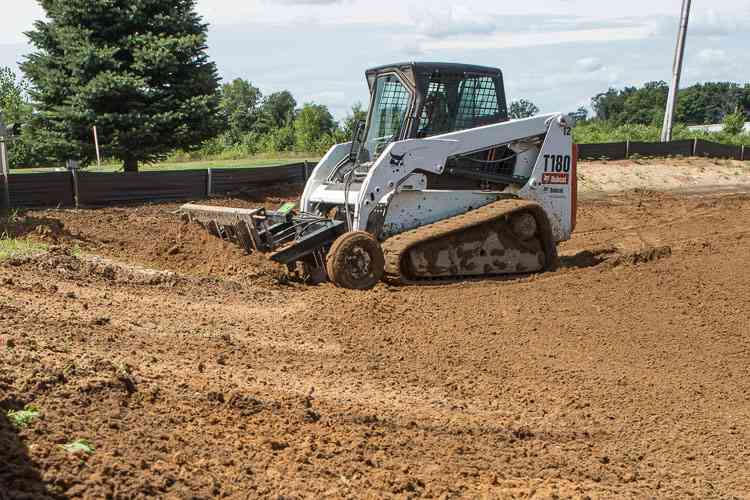

The SR3 has the capability to complete both light rough grading and finish grading jobs more quickly and easily than ever before. Forward and reverse grading and raking operation. Loosens soil up to 3″(standard), adjustable to 5″.
Required Vehicle Specs: Skid Steer Universal Mount, 40 – 90 hp., Max 10,750 lb. Operating Weight, Standard Flow, Unit rake is 7.5′ wide.
Trent Gillam with Henderson Turf Farm talks with Scott Holmes with ABI Attachments about the benefits of the TR3 Command Series and the impact it has on seedbed germination.
In this episode of ABI Dirt, we connect with our good friend Stanley “Dirt Monkey” Genadek to talk about his brand new SR3 and how Stanley plans to use the tool on future projects!

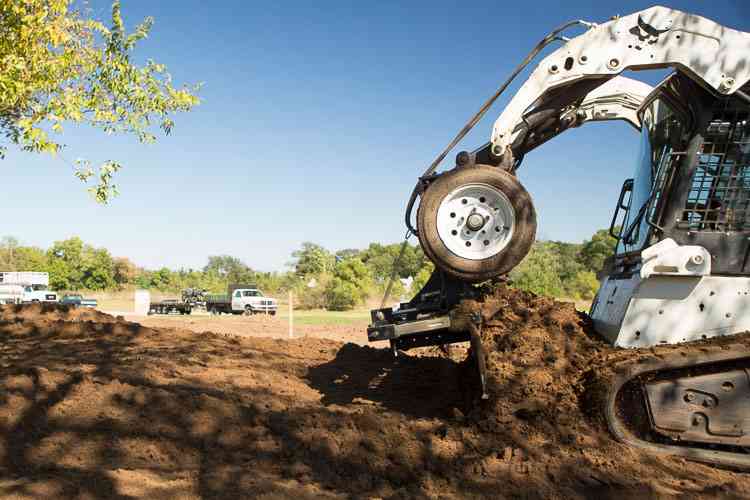

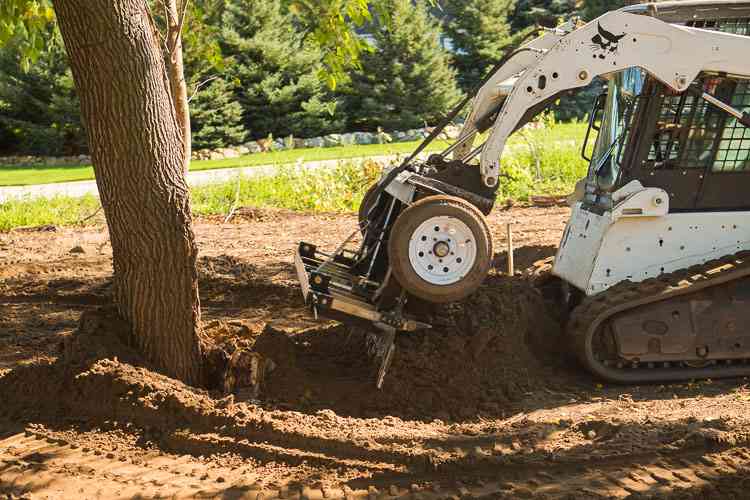

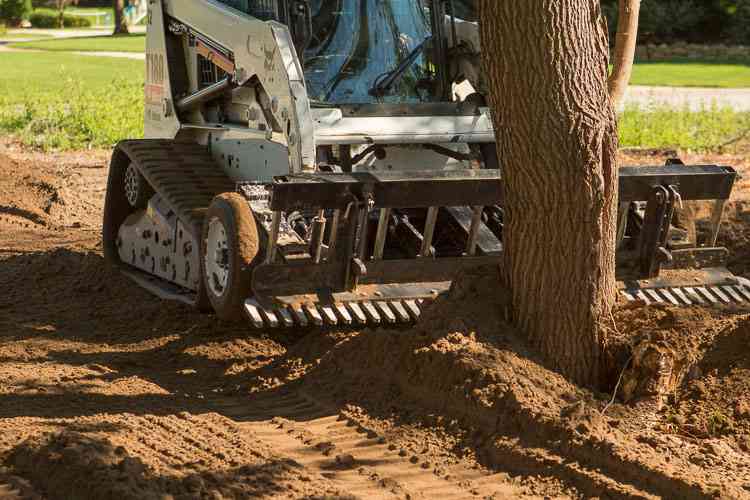

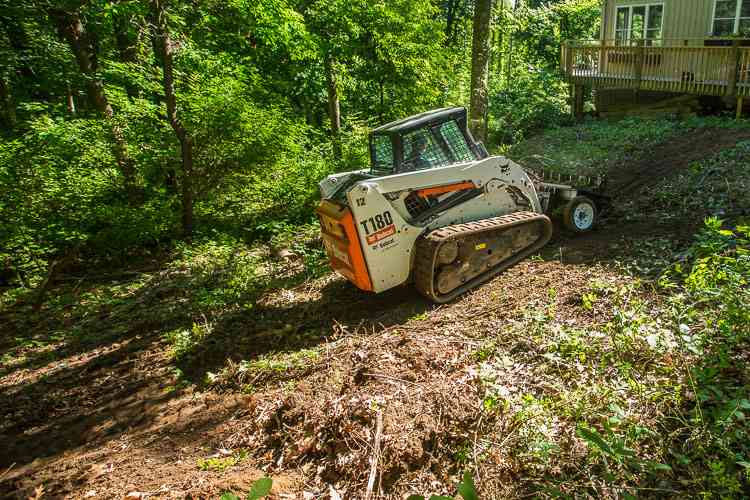

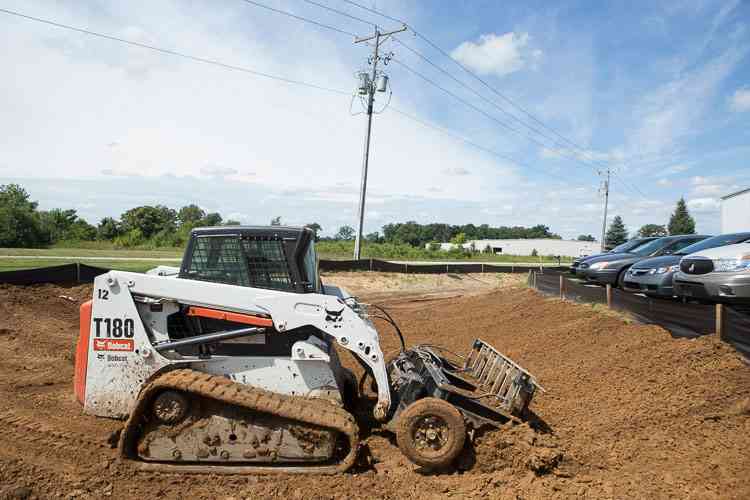

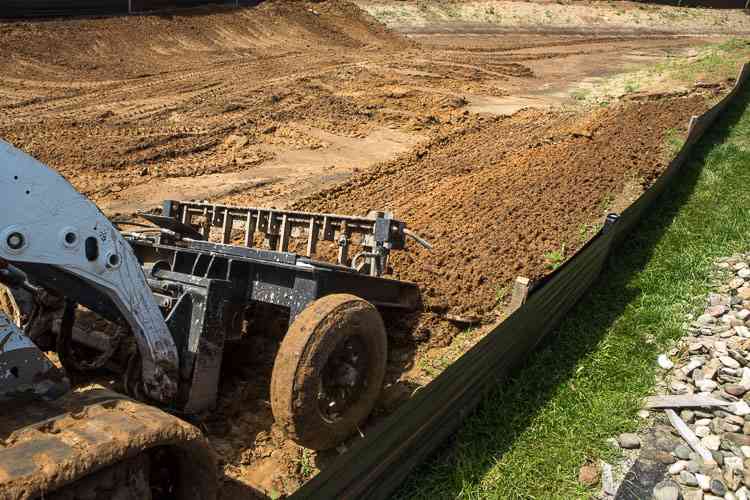

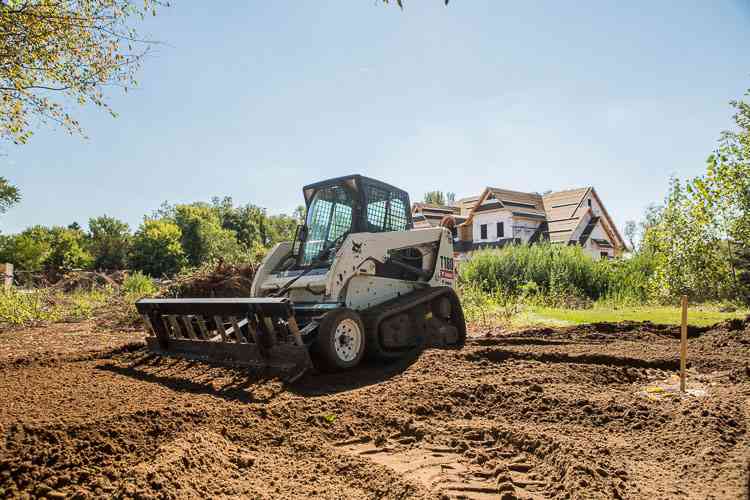

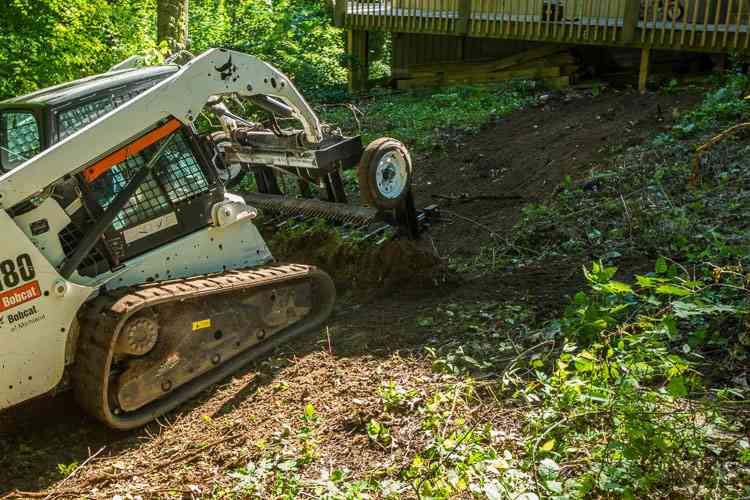

With an easy-to-set depth control in the gauge and float wheels, any operator can quickly clear, grade, and finish the toughest of jobs. Sift out rocks, level, and loosen when pulling the SR3; push large amounts of material and feather loose soil up against an edge when pushing forward!

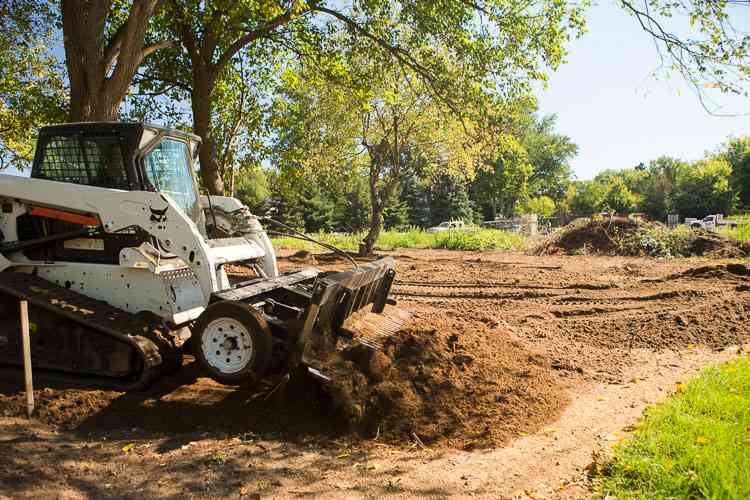

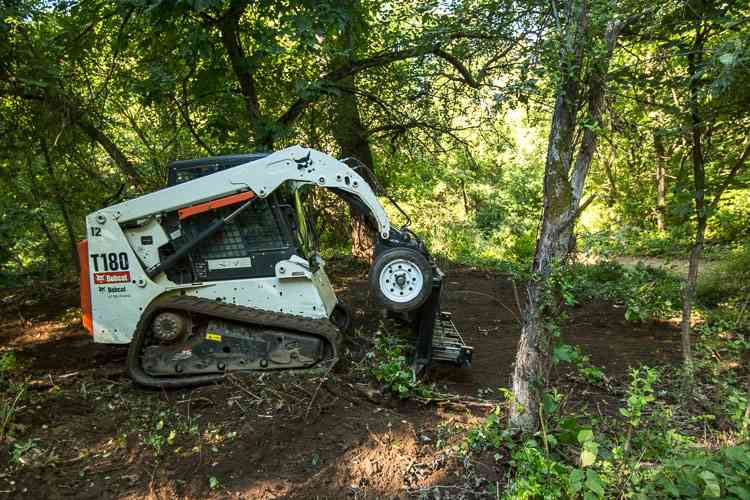

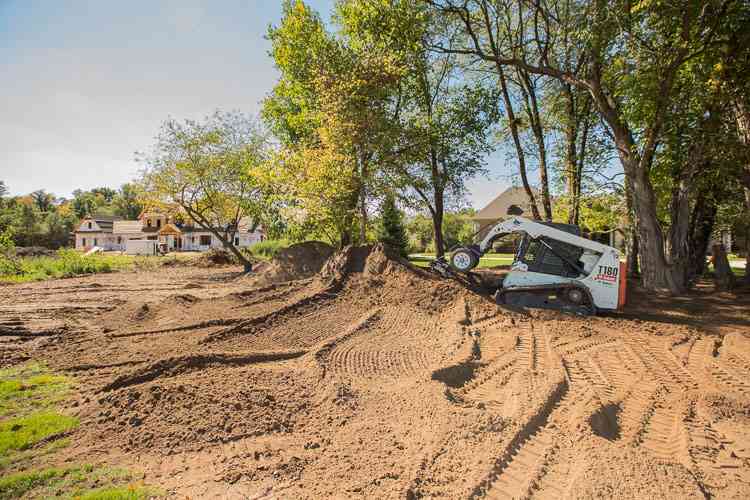

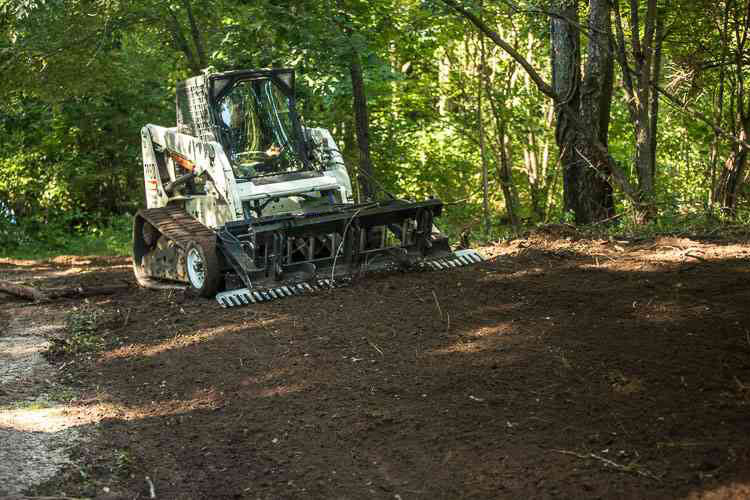

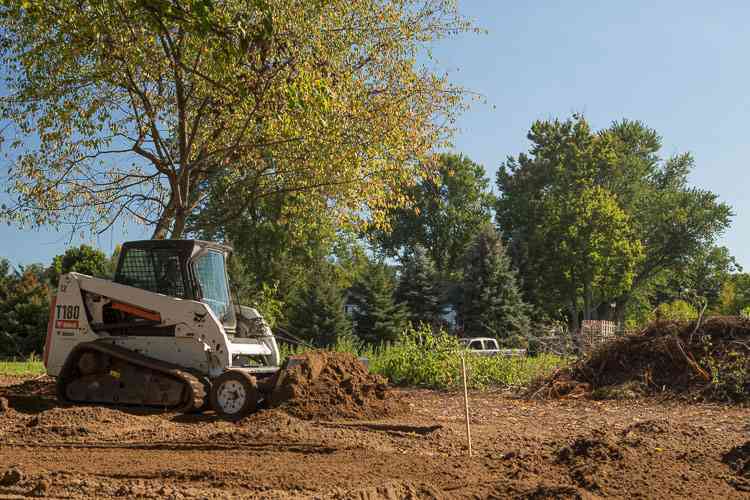

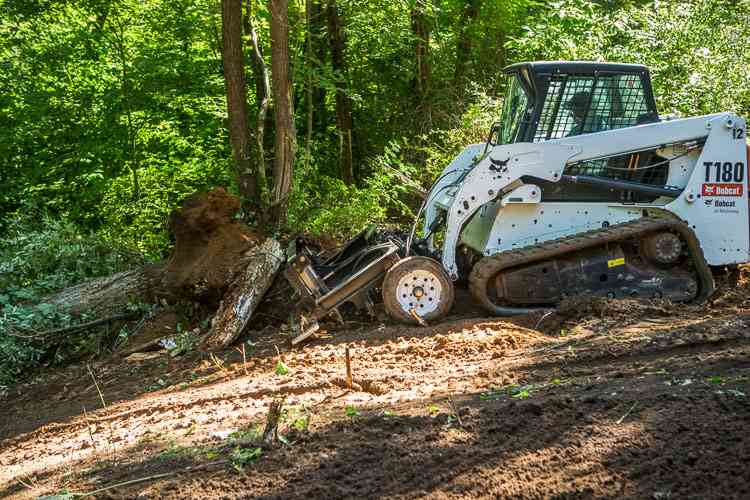

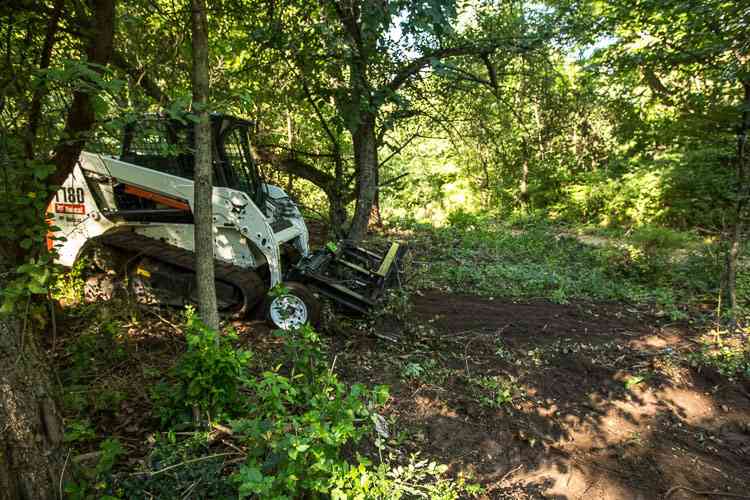

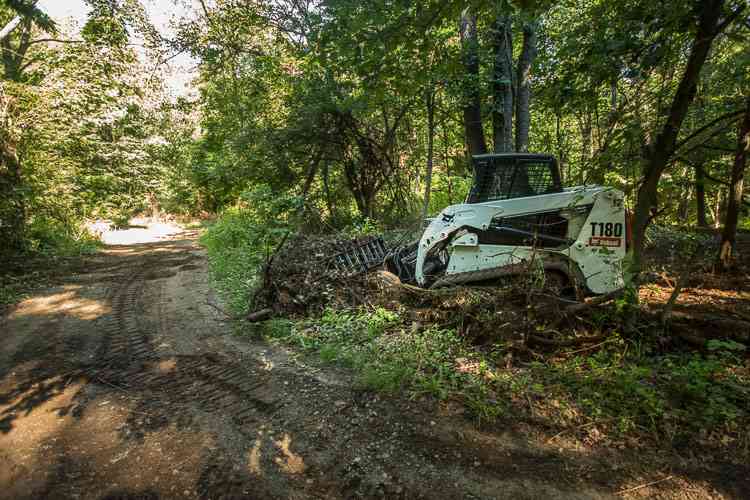

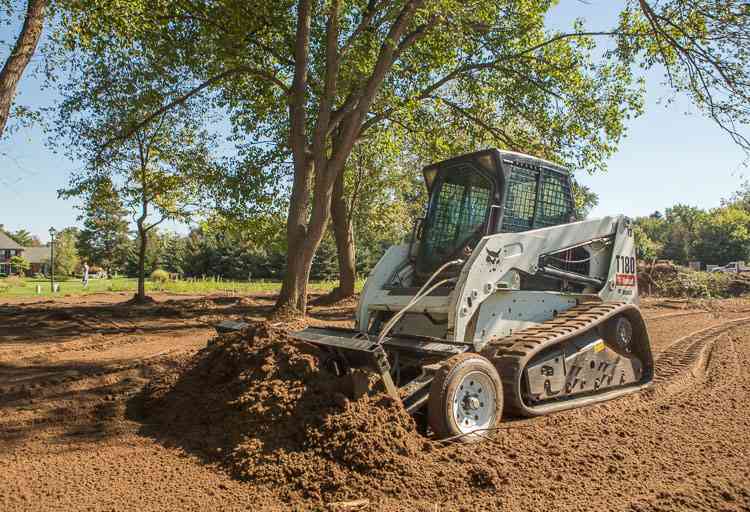

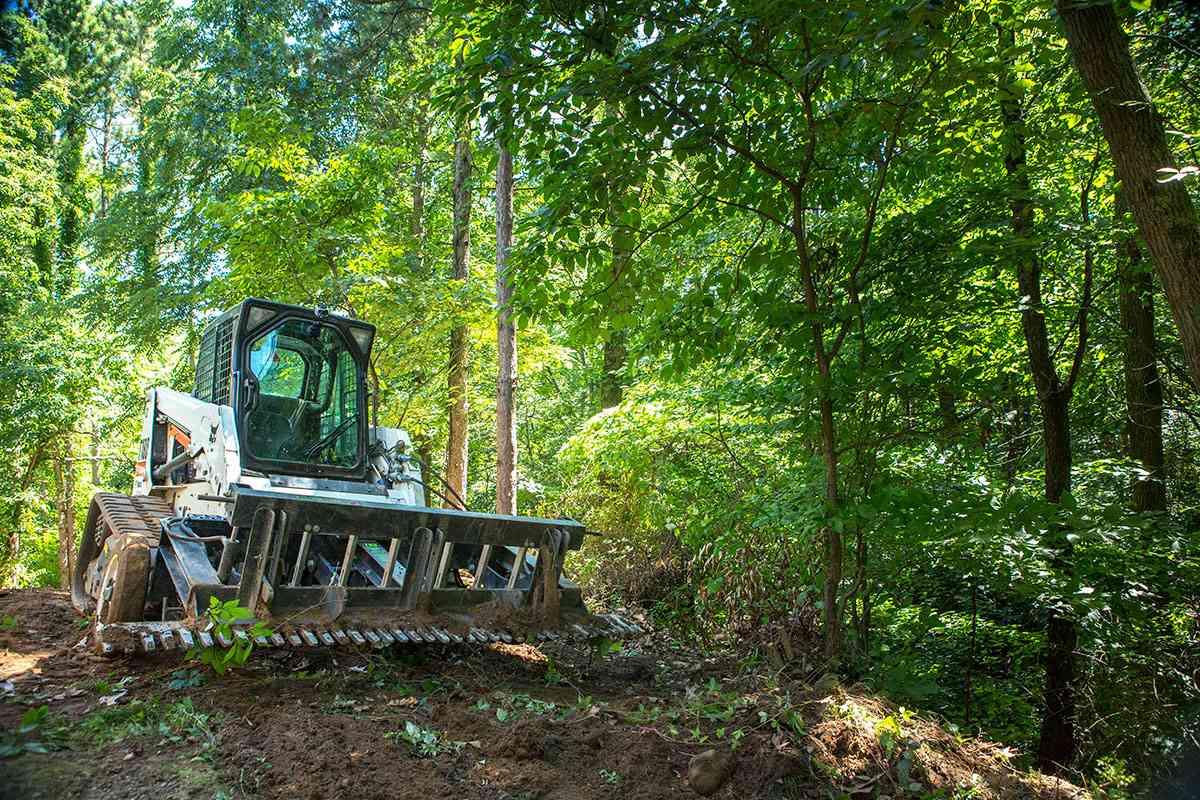

The ability of the SR3 to finish a job from overgrown land to a seedready finish drastically reduces time spent changing tools, unloading trailers, reconnecting hydraulics, and more. Its ability to tackle every job-from spreading large mounds of topsoil & removing debris to feathering against a tight edge-greatly reduces the need for other tools and handwork. Watch your profits soar: complete more jobs each day with fewer staff on site!

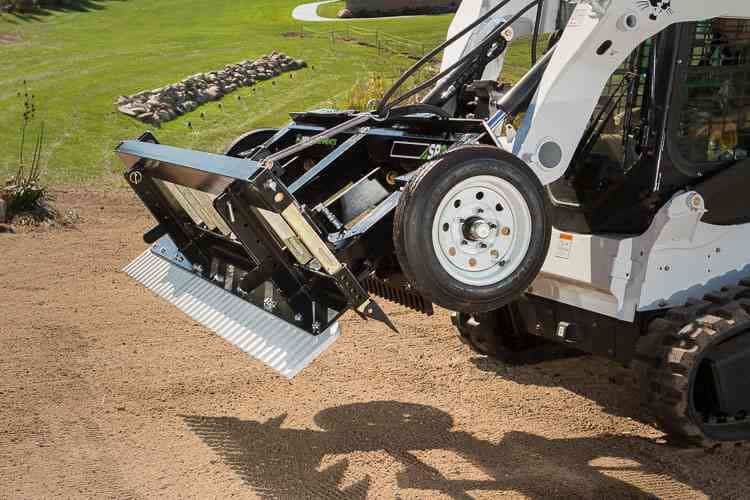

Matchless in the landscape industry, the float & gauge wheels on the SR3 let any operator achieve quick, easy, and professional results. Furthermore, the low-profile design was engineered to provide maximum visibility of ground-engaging components (minimizing guess-work). Assign any crew with confidence!

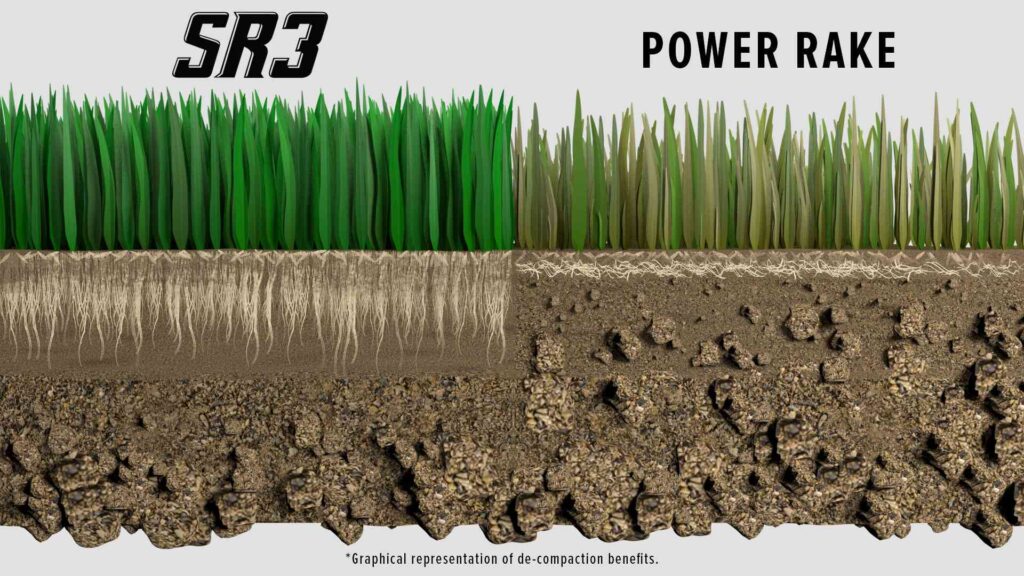

At ABI Attachments we know that there is nothing more important to preparing a proper seedbed than getting rid of the compaction of the soil. A de-compacted soil allows water and air to reach the roots of the seed, giving those roots the ability to anchor deep creating a stable and healthy turf.
Patent Pending

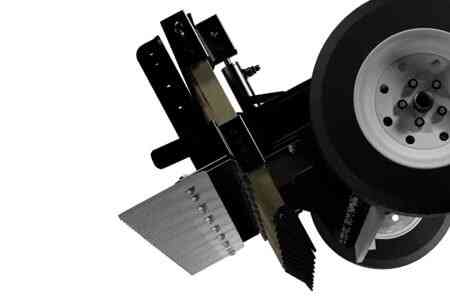

Ground-Engaging Components
H.P. Rating
Limited Warranty
Scott Holmes and Kevin Keigley with ABI Attachments discuss the differences between each Skid Steer Rake and which one would be right for you.
The SR3 combines the best features of a skid steer attached Box Blade, Landscape Rake, Pulverizer, Land Planner, & Scarifier all into one innovative design. This eliminates the need to switch out attachments and delivers vastly superior results, significantly faster than ever before. In comparison to a power rake, the SR3’s features provide significantly more soil compaction relief, speed of operation, and grading capability without downtime due to extensive maintenance.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
| SR3 Grading Rake | |
|---|---|
| Vehicle Type | Skid Steer |
| Min. Horse Power | 40 |
| Max. Horse Power | 75 |
| Unit Weight | 1,300 lbs. |
| Max Operating Weight | 10,750 lbs. |
| Raking Width | 89" |
| Grading Width | 66" |
| Scarifying Width | 79" |
| # of Scarifiers | 10 |
| Hydraulic Scarifiers | Yes |
| Scarifier Spacing | 8-10" |
| Scarifying Depth | 0-3" Adjustable to 5" |
| Scarifying Tip | Yes - Replaceable (Bolt-On) |
| Hydraulic Ports Needed | 1 Set |

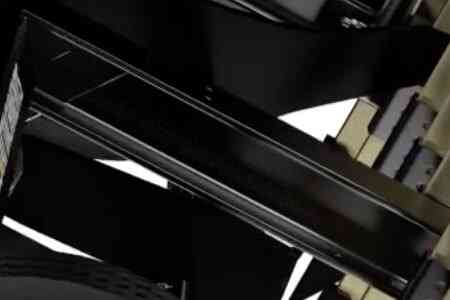

| Construction | I-Beam & Angle Iron |

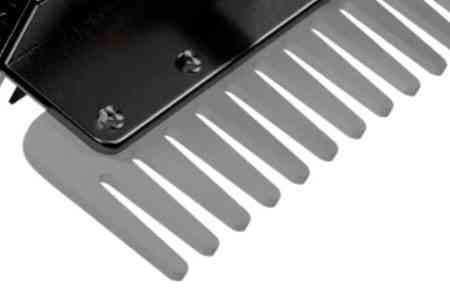

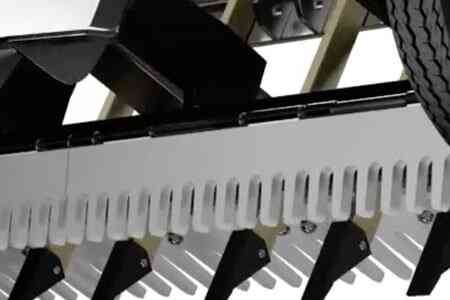

| Rake Material | 3/4" AR Steel - Laser Cut - (Replaceable in sections) |

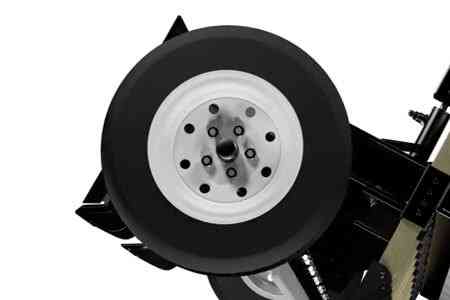

| Wheels | 16" Foam Filled |
| 3-Point Tractor Mount | No |
| Skid Steer Mount | Universal |
| Unit Dimensions | 90" W x 43" D x 30" H |
| Warranty | 60-month |
| We build equipment with commercial-grade construction and superior craftsmanship, so you can rest assured it will continue making you money for a long time. And to back that up, we offer a 60-month limited commercial warranty on this product. That's right, this product is designed for daily use, is built tough enough for commercial applications, and is backed by the longest standard commercial warranty we are aware of in the industry! Rental usage 12-months. See warranty documentation for details. | |
Attributes | |
| Connection | Universal (Skid-Steer) |
| Tow Vehicle | Skid-Steer, Compact Track Loader |
