ABI Potable Water Trailers have the features you need – for the jobs you need to get done. Specifically designed to safely transport clean consumable water anywhere, ABI’s Potable Water Trailers are perfect for a variety of applications, including agriculture, property, municipal, military and commercial.
Proudly manufactured in the USA, ABI’s Potable Water Trailers are available in 500, 1,000 and 1,600 gallon capacities, and feature fully welded, custom built frames and full drain tanks. Road ready and DOT approved, ABI’s Potable Water Trailers are a perfect choice for the safe and reliable transport of potable water both on and off public roadways!

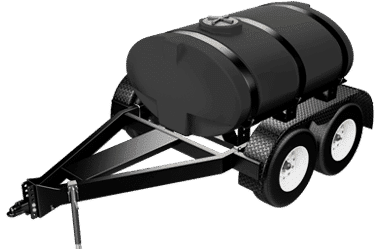

ABI Potable Water Trailers
500
Gallon Trailer
1000
Gallon Trailer
1600
Gallon Trailer
Limited Warranty
36-Month
Related Products
Farm Use: Compact Tractor
Min. Vehicle Weight: 2,400 lbs. On Flat Ground, Towing Capacity 5,200 lbs. On Uneven Terrain
Road-Ready For 1/2-Ton Truck
Min. Vehicle Towing Capacity: 5,900 lbs., Dual Axle, Commercial Platform
Road-Ready For 3/4-Ton Truck
Min. Vehicle Towing Capacity: 10,200 lbs., Dual Axle, Commercial Platform
Road-Ready For 1-Ton Truck
Min. Vehicle Towing Capacity: 16,020 lbs., Dual Axle, Commercial Platform
Our Better Way:
Buy Direct from ABI
Ship Direct to You
Pay Over Time Financing
Customer Support
Trusted by the Pros
Features
ABI Potable Water Trailers are specifically designed to safely transport clean consumable water virtually anywhere it is needed. These potable water trailers are equipped with full drain black tanks, to reduce algae & bacteria growth, and gravity fed water spigots that may be customized to meet the unique needs of the customer. ABI has the manufacturing capacity to fulfill both large volume orders of up to 1,000 units and orders for a single unit. The quality remains the same no matter the order size. We even work with government agencies to fulfill large military & humanitarian contracts to spec and on time. ABI water trailers come in 500, 1,000 & 1,600 gallon capacities and your choice of off-road or DOT (on-road) configurations. ABI Potable Water Trailers are built “tank tough” for years of worry free service.

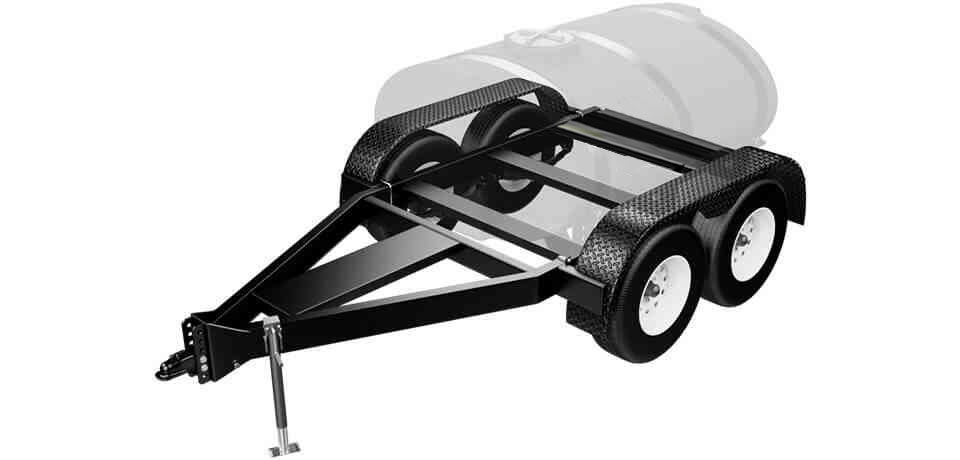

Steel Frame
Purpose Built Rugged Steel Frame with Easy to Use Hitch System
No matter how you spin it, a water trailer is only as good as the frame it’s built upon. The ABI Potable Water Trailers have a frame that is fully welded and custom engineered for the demands of the enormous weight of water. The rugged steel frame is made for extreme durability and long service life. ABI is dedicated to manufacturing our products in the USA; only the highest quality steel, superior craftsmanship and powder coating is acceptable! Plus, connecting to your truck is quick and easy with our adjustable ball hitch, safety chains and swivel crank jack!

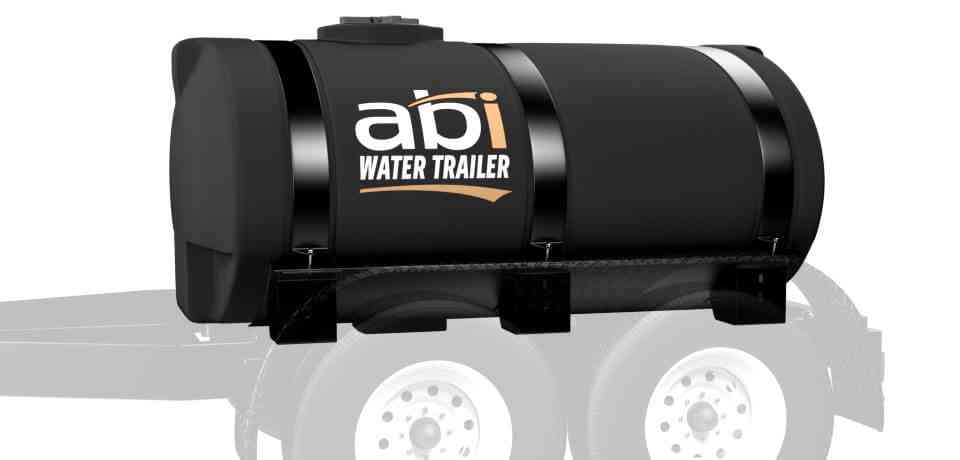

Custom Molded Tanks
Full Drain Custom Molded Tanks
ABI’s Potable Water Trailers feature a uniquely designed water tank. The tank sits on our custom made steel frame, allowing it to fully drain for easy cleaning. Unlike many competitors, ABI’s water trailer tanks are easy to thoroughly clean and flush out. This unique design also keeps water near the frame for easy access and to lower the center of gravity. The ABI Potable Water Trailer features an FDA approved black tank that blocks UV rays and reduces algae growth during water storage. The tanks are equipped with an easy access vented lid for filling and servicing.

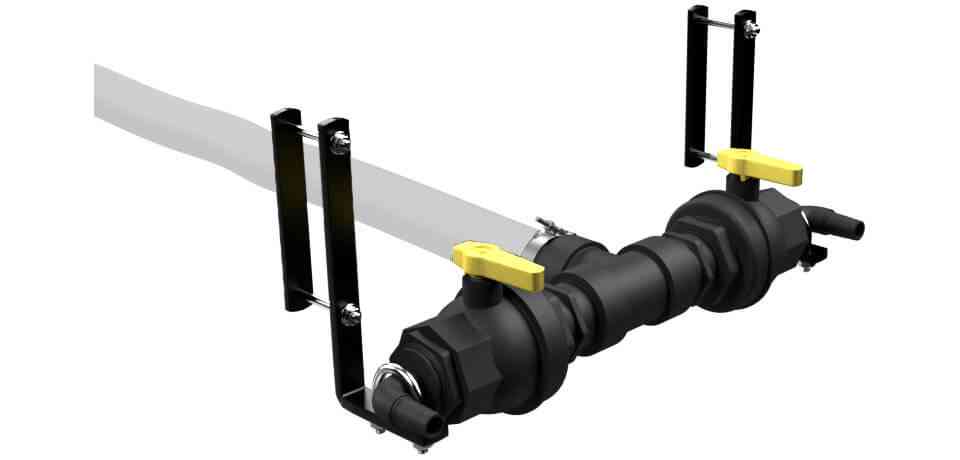

Water Distribution System
Standard Configuration is Gravity Fed
The ABI Potable Water Trailers feature a standard water distribution system that accommodates the majority of potable water needs. This standard configuration is gravity fed and includes two 2″ ball valves each with a 5/8″ hose barb. For added versatility, ABI offers select customizable water distribution system options depending on your water application needs.

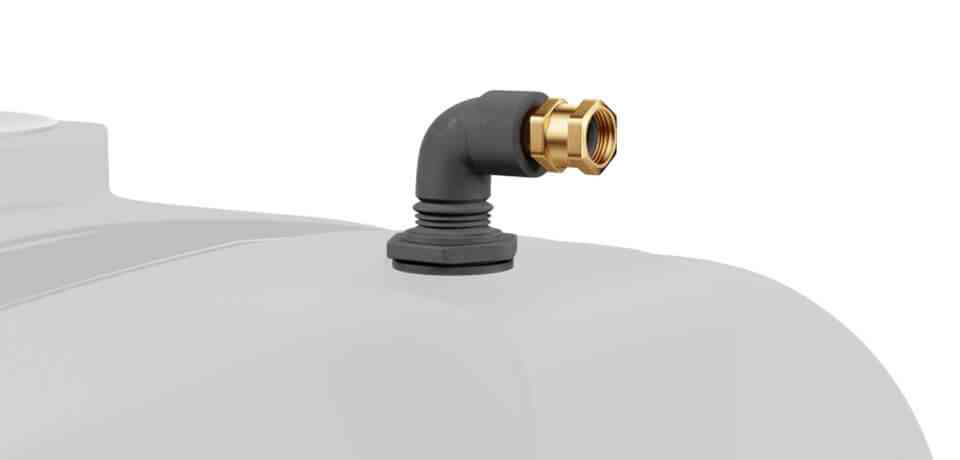

Auto Fill Shut Off
Saves Time and Worry
All ABI Water Trailers come standard with a brand new auto fill shut off feature! When utilized, this valve automatically shuts off the flow of water when the tank is full, saving time and worry. Now you can fill the tank overnight or continue on with your day’s work, and the trailer will be full and ready to use when you are.

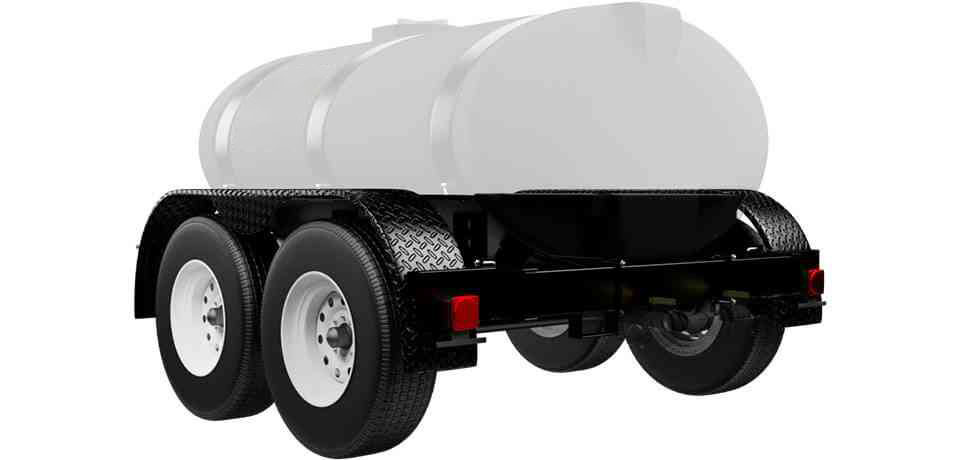

DOT
Meet DOT Regulations
ABI’s Potable Water Trailers meet DOT regulations, complete with electric drum brakes, tail lights, fenders and radial road tires. All of our DOT water trailers come with a vehicle ID number, temporary license plate and required documents allowing you to register your trailer, hassle free! The ABI Potable Water Trailers feature tandem axles with slipper leaf spring suspension, offering a smooth and stable ride. The suspension and axles are engineered and field tested for each size unit to ensure safe operation and long service life.
Request A Quote
Request a quote and an ABI Product Specialist will help you find the right
attachment for your equipment.
attachment for your equipment.
No obligation. We never sell your data.
Prefer to call? 877-788-7253 (Mon-Fri, 9-5 ET)
Specifications
| ABI Water Trailer | 500 Gallon | 1000 Gallon | 1600 Gallon | 500 Gallon (DOT) | 1000 Gallon (DOT) | 1600 Gallon (DOT) |
|---|---|---|---|---|---|---|
Trailer Construction | ||||||
| GVWR Axle Rating | 8,500 lbs. | 10,400 lbs. | 18,000 lbs. | 8,500 lbs. | 10,400 lbs. | 18,000 lbs. |
| Unit Weight (Empty) | 1,260 lbs. | 1,900 lbs. | 2,260 lbs. | 1,700 lbs. | 1,900 lbs. | 2,660 lbs. |
| Loaded Weight (w/Water) | 5,385 lbs. | 10,150 lbs. | 16,020 lbs. | 5,875 lbs. | 10,150 lbs. | 16,420 lbs. |
| Compact Construction | - | - | - | - | - | - |
| Commercial Construction | ||||||
| 1 Axle | - | - | - | - | - | - |
| 2 Axles | ||||||
| Suspension | Leaf Spring | Leaf Spring | Leaf Spring | Leaf Spring | Leaf Spring | Leaf Spring |
| Electric Brakes | - | - | ||||
| Fenders | - | - | ||||
| Brake & Tail Lights | - | - | - | |||
| Custom Frame | ||||||
| Tire Type | Implement | Implement | Radial | Radial | Radial | Radial |
| Tire Specs | WH9.5L15-6/5.5 | WH9.5L15-6/5.5 | WH 215/75/17.5-8/6.5 | WH 235/80/16-6/5.5 | WH 235/80/16-6/5.5 | WH 215/75/17.5-8/6.5 |
| # of Lugs | 6 | 6 | 8 | 6 | 6 | 8 |
| Trailer Frame Type | C-Channel | C-Channel | C-Channel | C-Channel | C-Channel | C-Channel |
| Pin, Pintle, or 2" 5/16" Ball Hitch | - Option | - Option | - Option | - Option | - Option | - Option |
| Limited Warranty | 36-months | 36-month | 36-month | 36-month | 36-month | 36-month |
| Made In USA | ||||||
Water Tank Configurations | ||||||
| Water Capacity | 500 Gallons | 1,000 Gallons | 1,600 Gallons | 500 Gallons | 1,000 Gallons | 1,600 Gallons |
| Full Drain Tank | ||||||
| Deep Drainage Sump | ||||||
| Leg Tank Design | - | |||||
| Low Profile Elliptical Shape | - | - | - | - | ||
| Black Polyethylene Material | ||||||
| White Tank Option | - Option | - Option | - Option | - Option | - Option | - Option |
| FDA Approved Resins | ||||||
Tow Vehicle Requirements | ||||||
| Off Public Roadway Use | ||||||
| On Public Roadway Use (DOT) | - | - | - | |||
| Tow Vehicle Type | Tractor or 1/2-Ton Truck | Tractor or 3/4-Ton Truck | Tractor or 1-Ton Truck | 1/2-Ton Truck | 3/4-Ton Truck | 1-Ton Truck |
| Minimum Vehicle Requirements | Min. Vehicle Towing Capacity: 5,900 lbs. | Min. Vehicle Towing Capacity: 10,200 lbs. | Min. Vehicle Towing Capacity: 16,020 lbs. | Min. Vehicle Towing Capacity: 5,900 lbs. | Min. Vehicle Towing Capacity: 10,200 lbs. | Min. Vehicle Towing Capacity: 16,020 lbs. |
Dimensions | ||||||
| Unit Length | 151" | 204" | 213" | 151" | 204" | 213" |
| Unit Width | 87" | 87" | 102" | 87" | 87" | 102" |
| Unit Height | 73" | 78" | 79" | 73" | 78" | 79" |
| Shipping Length | 151" | 204" | 213" | 151" | 204" | 213" |
| Shipping Width | 87" | 87" | 102" | 87" | 87" | 102" |
| Shipping Height | 73" | 78" | 79" | 73" | 78" | 79" |
Attributes | ||||||
| Connection | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch | Pin Hitch / Drawbar, Ball Hitch |
| Tow Vehicle | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck | Truck, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck |
| Size | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle | 500 Gallons, 1,000 Gallons, 1,600 Gallons, Dual Axle |
| Other Attributes | DOT Compliant | DOT Compliant | DOT Compliant | DOT Compliant | DOT Compliant | DOT Compliant |
| Market | Equestrians, Landscape Contractors, Property Owners | Equestrians, Landscape Contractors, Property Owners | Equestrians, Landscape Contractors, Property Owners | Equestrians, Landscape Contractors, Property Owners | Equestrians, Landscape Contractors, Property Owners | Equestrians, Landscape Contractors, Property Owners |
