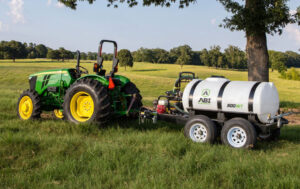

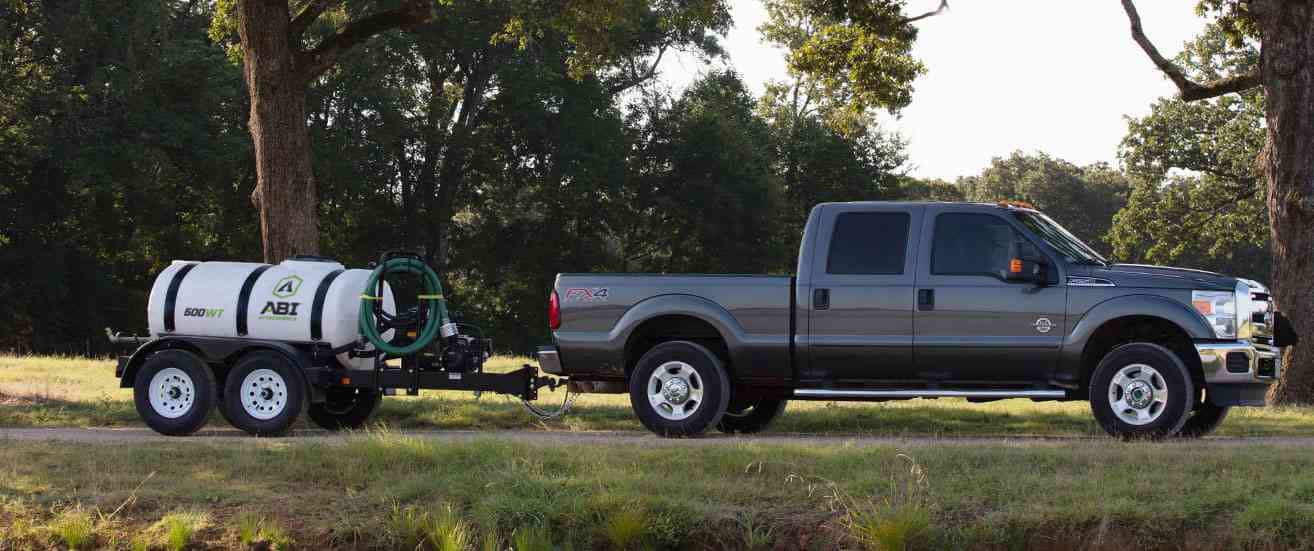

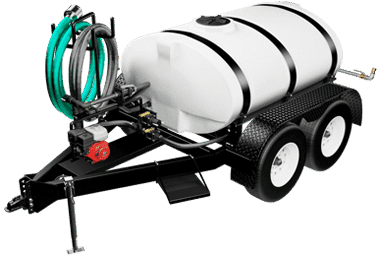

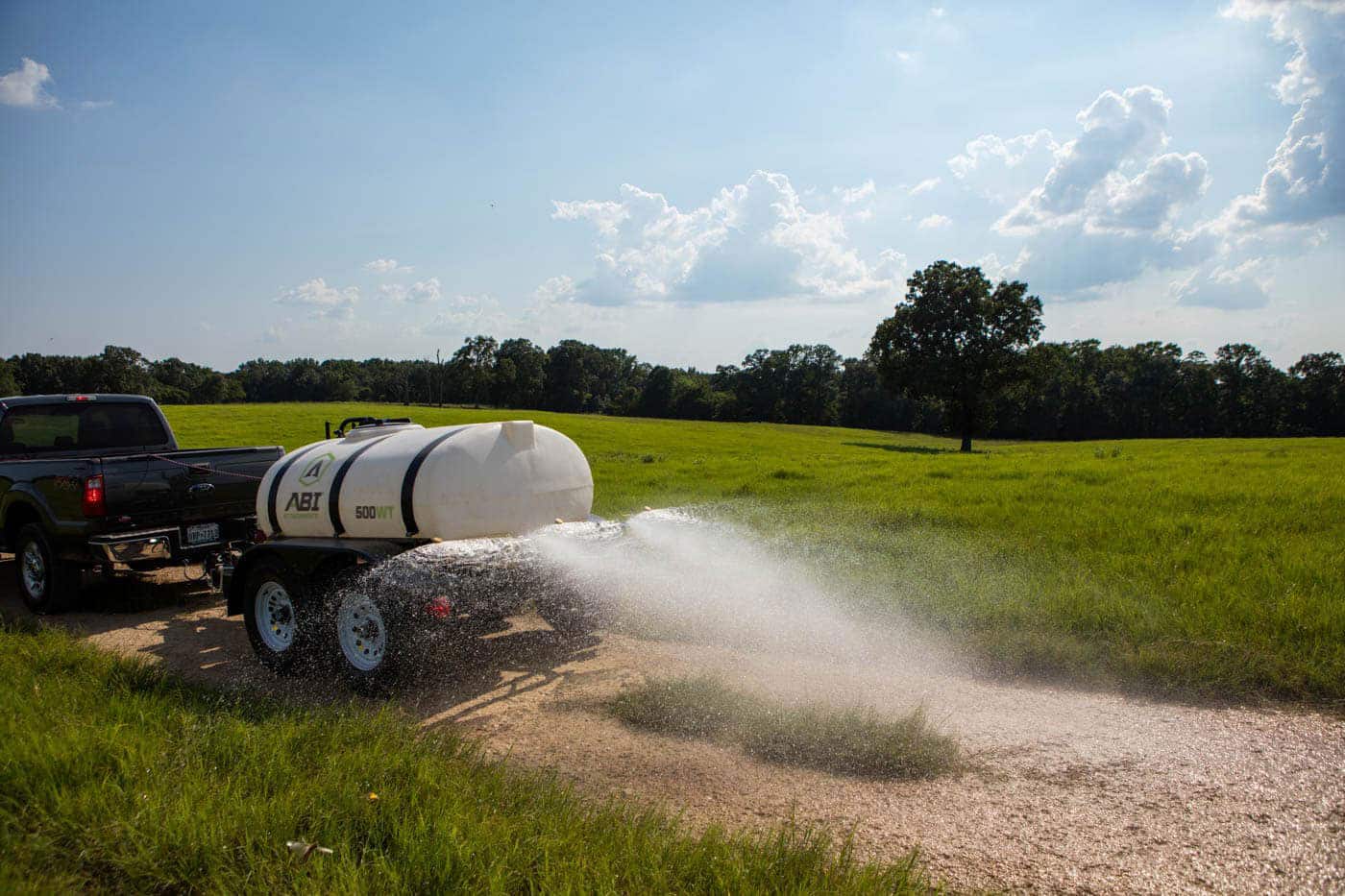

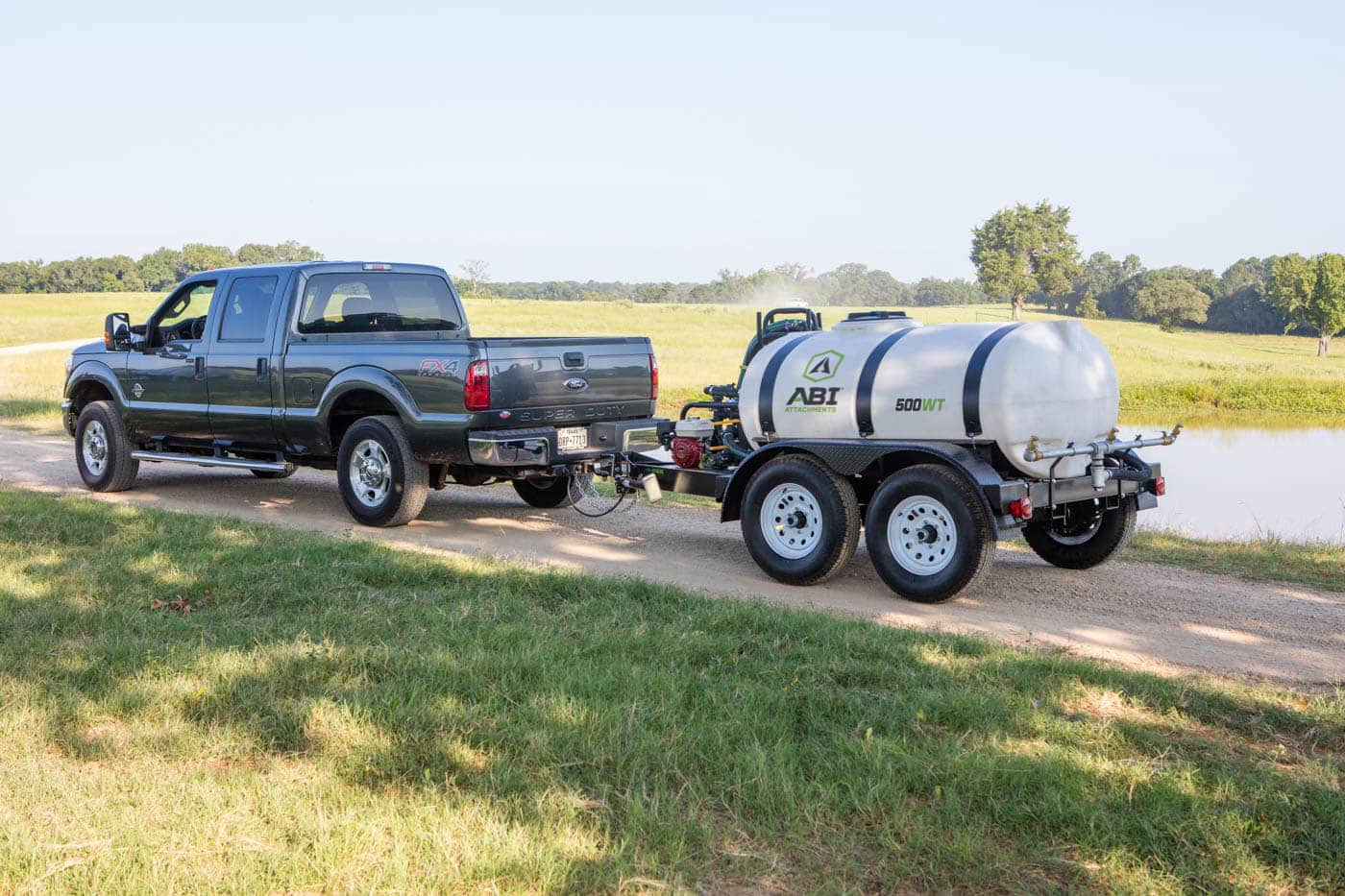

The 500 gallon dual axle DOT ABI Water Trailer hauls and applies large volumes of water around the farm, property, job site, or nearly anywhere your truck can take you. This commercial-grade trailer, built on a custom proprietary frame, can be towed by a tractor, truck, or SUV and is fully DOT compliant for use on public roadways. It is powered by an engine and pump to apply variable amounts of water from either the rear spray nozzles (wide spray) or the available spray hose (spot application). Additionally, it has the ability to turn the flow of water on and off, on-the-fly, from the seat of the tow vehicle.

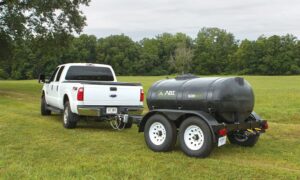

Common uses include dust abatement, irrigation, hydration, watering, washing, and supplying in applications such as construction sites, horse arenas, general property, nurseries, ballfields, pools, parks, farms, and more! The ABI Water Trailer comes loaded with features making this an invaluable and versatile trailer for your water hauling and application needs. A potable (drinking) water configuration is also available.
Powerful Engine
Pump & Plumbing
Spray Nozzles
Limited Warranty

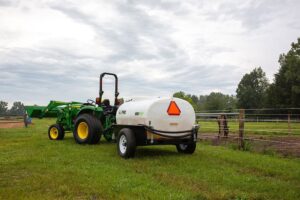

Our full line of ABI Water Trailers excel at arena moisture management, landscaping, dust abatement, property fire protection, cleaning equipment, stalls, and buildings, transporting potable water, and more! Whatever is on your list of jobs to accomplish with your ABI Water Trailer, we’ve loaded it with thoughtful features that help you get them done quicker and better than before. With quick and convenient filling capabilities, easy-to-use hoses and spray nozzles, and a full-drain tank on our custom-built frame, our water trailers are easy to fill, easy to operate, and easy to own!
| ABI Water Trailer | 500 Gallon DOT |
|---|---|
Trailer Construction | |
| GVWR Axle Rating | 8,500 lbs. |
| Unit Weight (Empty) | 1,700 lbs. |
| Loaded Weight (w/Water) | 5,875 lbs. |
| Compact Construction | - |
| Commercial Construction | |
| 1 Axle | - |
| 2 Axles | |
| Suspension | Leaf Spring |
| Electric Brakes | |
| Fenders | |
| Brake & Tail Lights | |
| Custom Frame | |
| Tire Type | Radial |
| Tire Specs | WH 235/80/16-6/5.5 |
| # of Lugs | 6 |
| Trailer Frame Type | C-Channel |
| Pin, Pintle, or 2" 5/16" Ball Hitch | - Option |
| Limited Warranty | 36-month |
| Made In USA | |

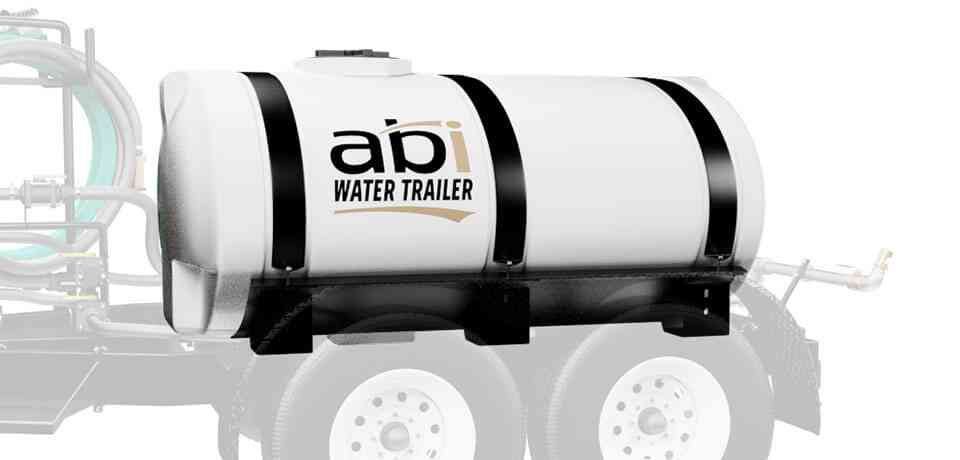

Water Tank Configurations | |
| Water Capacity | 500 Gallons |
| Full Drain Tank | |
| Deep Drainage Sump | |
| Leg Tank Design | - |
| Low Profile Elliptical Shape | |
| White Polyethylene Material | |
| Black Tank Option | - Option |
| FDA Approved Resins | |
Engine Configurations | |
| GX160 Honda Motor (4.8 hp / 163cc) | |
Pump Configurations | |
| 2” Self-Priming Centrifugal Poly Pump | - Option |
Plumbing Configurations | |
| AutoFill Shutoff - Garden Hose | |
| 2" Plumbing | - Option |
| Recirculation System | - Option |
| 1 Rear Spray Nozzle | - |
| 2 Rear Spray Nozzles | - |

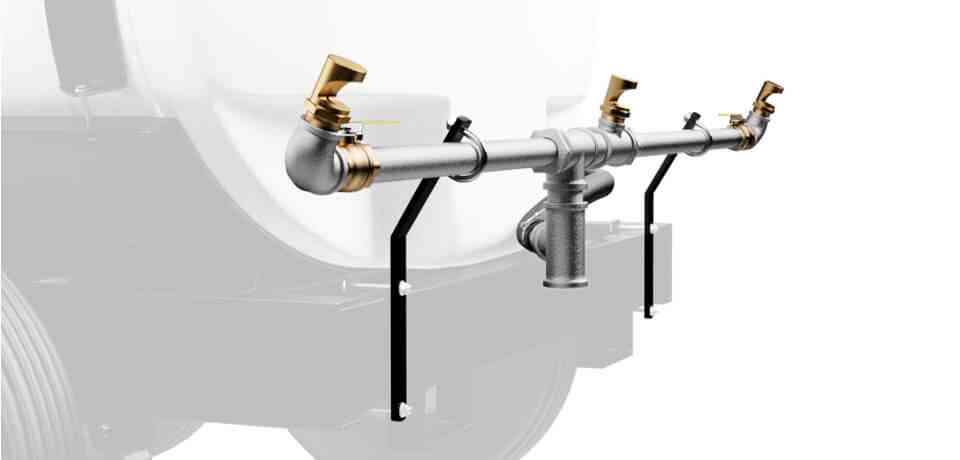

| 3 Rear Spray Nozzles | - Option |
| On/Off Flow Control Ratchet Valve | - Option |

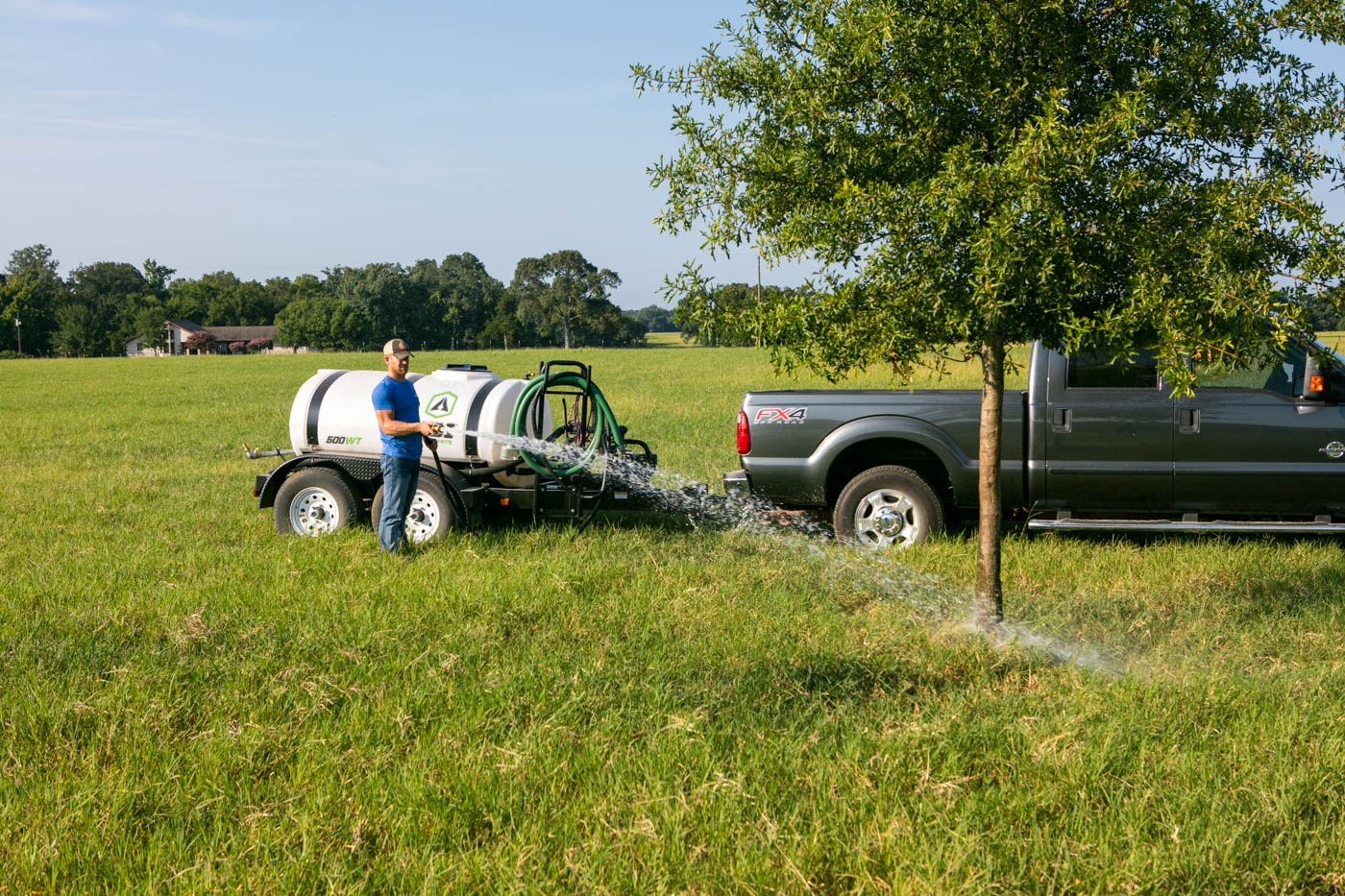

| Spray Hose & Nozzle | - Option |
| Pond Fill System | - Option |
| Garden Hose Adapter | - Option |

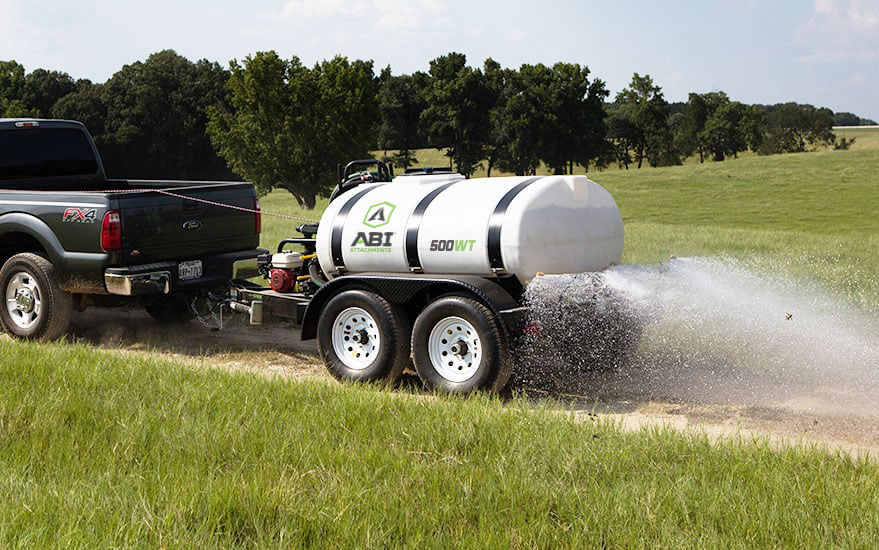

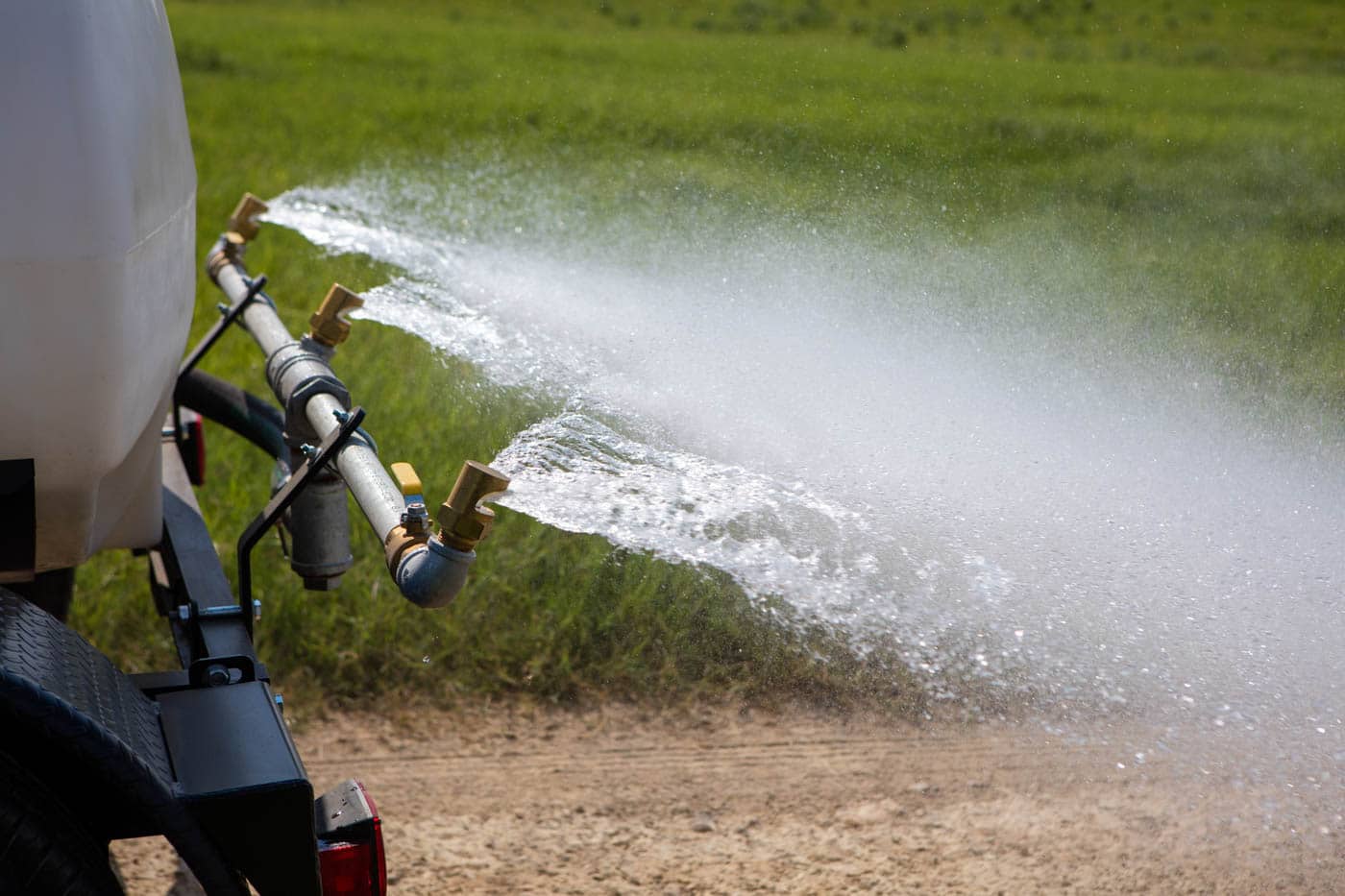

Rear Water Spray | |
| Spray Nozzle Fan Arc | 144° |
| Spray Swath | 6' - 25' |
| Max Gallons Per Minute (GPM) | 140 |
| Uniform Water Application | |
Tow Vehicle Requirements | |
| Off Public Roadway Use | |
| On Public Roadway Use (DOT) | |
| Tow Vehicle Type | 1/2-Ton Truck |
| Minimum Vehicle Requirements | Min. Vehicle Towing Capacity: 5,900 lbs. |
Dimensions | |
| Unit Length | 151" |
| Unit Width | 87" |
| Unit Height | 73" |
| Shipping Length | 151" |
| Shipping Width | 87" |
| Shipping Height | 73" |
Attributes | |
| Tow Vehicle | Tractor, Truck, Compact Tractor, Utility Tractor, Large-Utility Tractor, 1/2 Ton Truck, 3/4 Ton Truck, 1 Ton Truck |
| Product Type | Water Trailers |
| Connection | Pin Hitch / Drawbar, Ball Hitch |
| Size | 500 Gallons, Dual Axle |
| Other Attributes | DOT Compliant, Engine Powered |
| Market | Equestrians, Landscape Contractors, Property Owners |
